LT400 OUTDOOR_EU
Incl VAT
Couldn't load pickup availability
Shop safely
Secure your shopping experience with various safe and trusted payment methods.
Turn Everywhere 4G into N300 Wi-Fi
With 4G Cat.4 standards, LT400 Outdoor communicates with a 4G tower with speeds of up to 150 Mbps download and 50 Mbps upload. It features a N300 Wi-Fi, providing reliable network for web browsing,video streaming, surveilance, and POS services.
Boosted Wi-Fi Coverage with Beamforming
Tested Wi-Fi coverage performance in four different scenarios, achieved by Beamforming technology and two built-in antennas. If your space is too large for one Cudy 4G Outdoor Router to cover, you can expand your Wi-Fi coverage into a Mesh network by adding another Cudy AP.

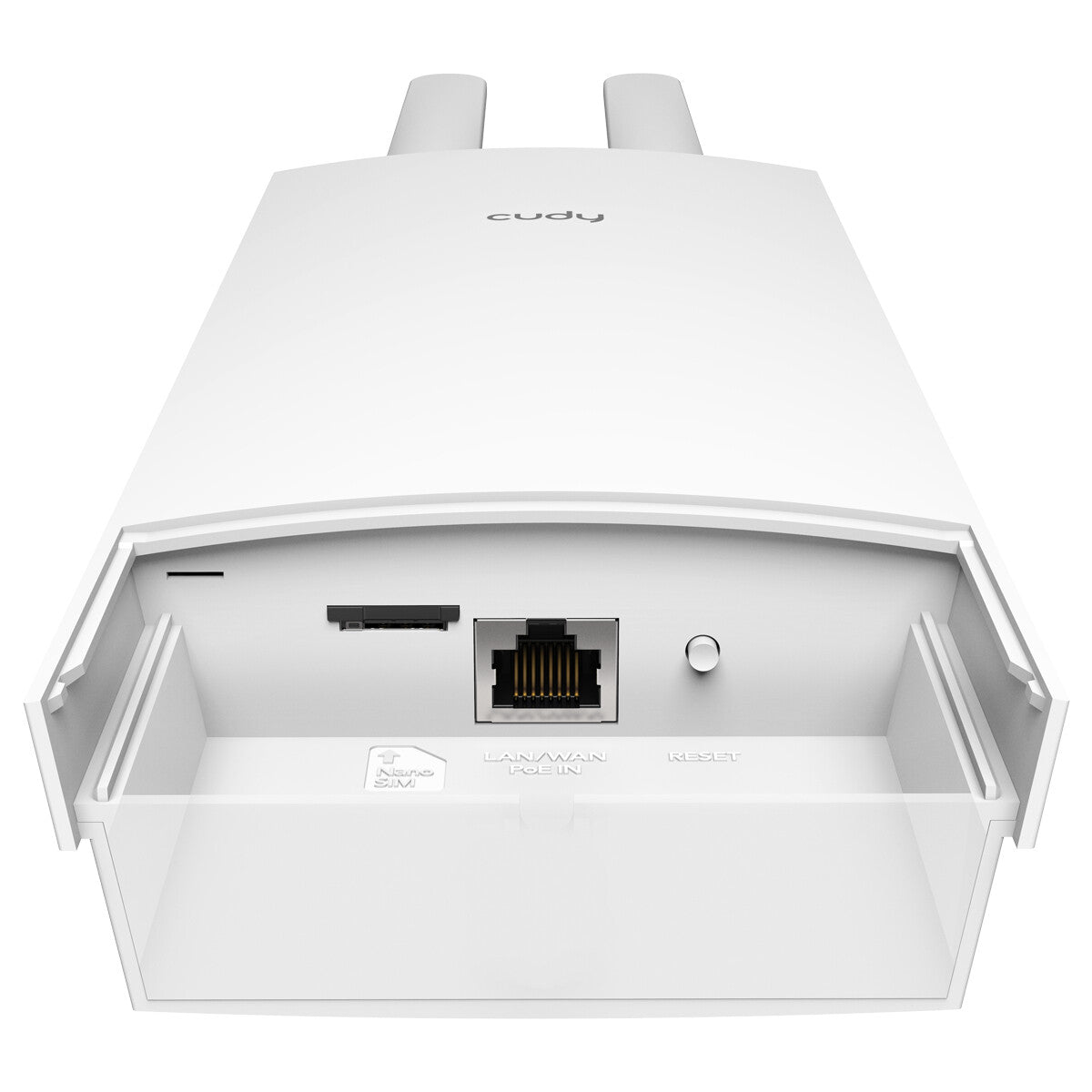

Insert a SIM, Enjoy Wi-Fi
Install Wi-Fi anywhere is as easy as plugging a SIM card and booting it up with the PoE adapter. One PoE Adapter is included in the box.
Pull Network to 100 m Away
Plug your Ethernet cable into the PoE adapter/switch to get up to 100 m of wired network reach. The extra cable is not included in the box.
Install an AP for Indoor Wi-Fi
Connect an AP to the PoE adapter to equip your cafe, home, or office with a better Wi-Fi signal. AP needs to bepurchased separately.
Install Extension Antennas
The default 4G antennas are as sensitive as a standard phone's antennas. You can still replace them with customized ones via the SMA connectors.
A Reliable Network Solution
Gigabit Solution (Gigabit speed only in Intranet, suitable for NAS users):
- Switch: Cudy GS108 (Skip this if you don't require extra wired connections)
- AP: Cudy WR1300E/WR1300/WR3000 (Choose AP mode during setup)
Budget Solution:
- AP: Cudy WR1200 (Choose AP mode during Setup)

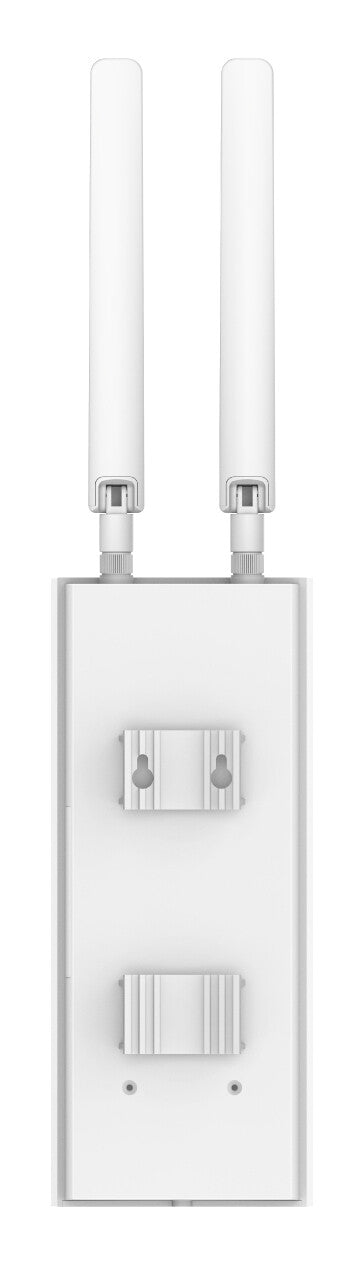

Mounting Kit Included
A mounting kit is included in the box, supporting–
- Wall-Mounting
- Pole-Mounting
A pole/wall-mounted outdoor 4G CPE with IP65 casing, one SIM slot, and accepting PoE, featuring N300 Wi-Fi and VPN features.
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| SIM card slot | Yes |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
|---|---|
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Modulation | 64-QAM |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Port triggering | Yes |
| Port forwarding | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| VPN support | PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier |
| Mobile network | |
|---|---|
| Mobile network generation | 4G |
| Dual SIM support | No |
| 2G standards | Edge, GSM |
| 3G standards | WCDMA |
| 4G standard | LTE-TDD & LTE-FDD |
| SIM card type | NanoSIM |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | No |
| Management features | |
|---|---|
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wake-on-LAN ready | Yes |
| Reset button | Yes |
| Security | |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| Firewall | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
| IGMP snooping | Yes |
| DMZ support | Yes |
| Protocols | |
|---|---|
| DHCP client | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4 / IPv6 |
| Design | |
|---|---|
| Product type | Desktop/pole router |
| Product colour | White |
| Wall mountable | Yes |
| International Protection (IP) code | IP65 |
| LED indicators | WLAN |

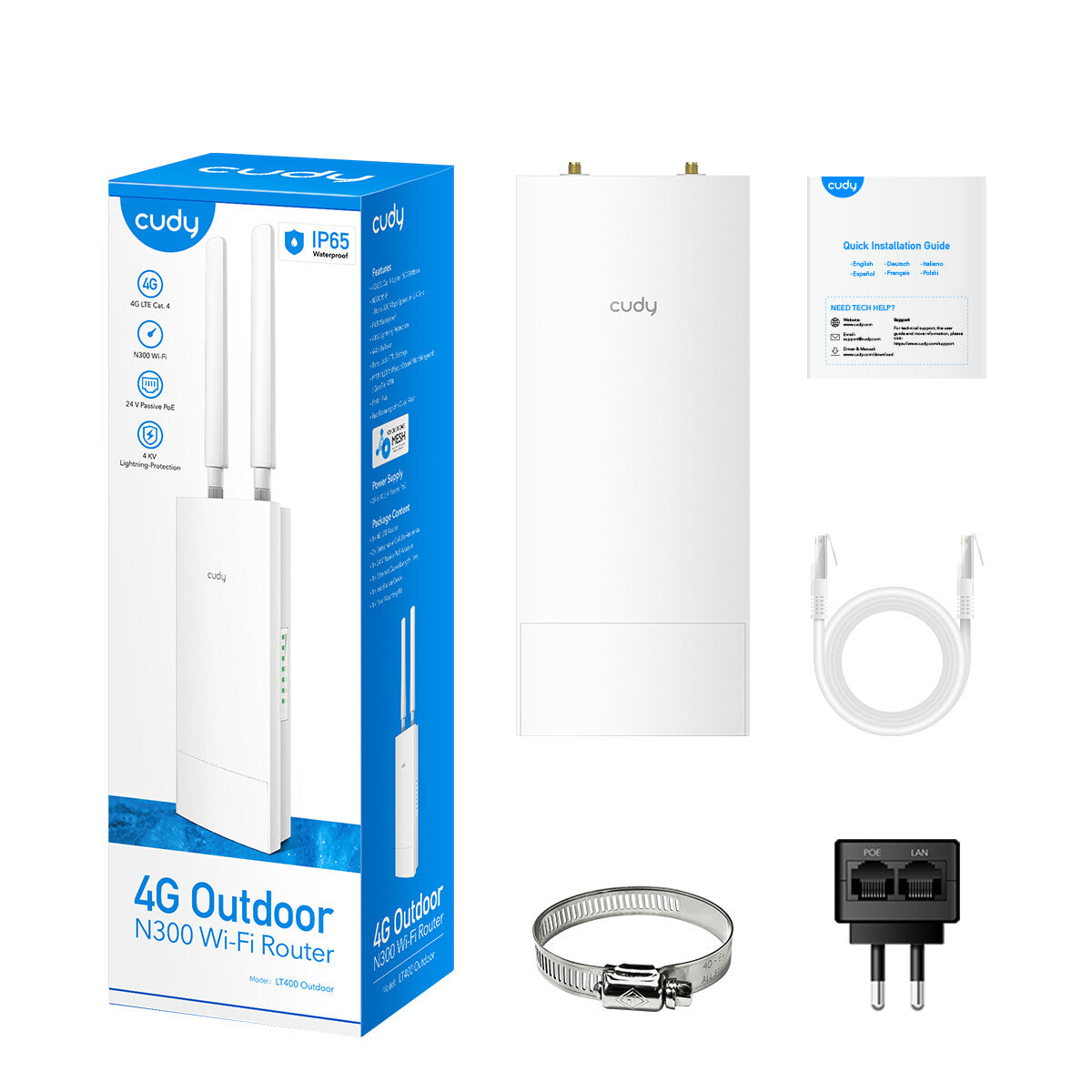

| Packaging content | |
|---|---|
| Cables included | LAN (RJ-45) |
| PoE injector included | Yes |
| Mounting kit | Yes |
| Quick installation guide | Yes |
| Antenna | |
|---|---|
| Antenna design | Internal & external |
| Antenna gain level (max) | 5 dBi |
| Antennas quantity | 4 |
| Detachable antenna(s) | Yes |
| Features | |
|---|---|
| Internal memory | 64 MB |
| Flash memory | 8 MB |
| Power | |
|---|---|
| Power source type | PoE |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Output voltage | 24 V |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 0 - 100% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -20 - 60 °C |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 420 g |
| Height | 53.7 mm |
| Depth | 100 mm |
| Width | 240 mm |
| Packaging data | |
|---|---|
| Package width | 324 mm |
| Package depth | 107 mm |
| Package height | 86 mm |
| Package weight | 794 g |
