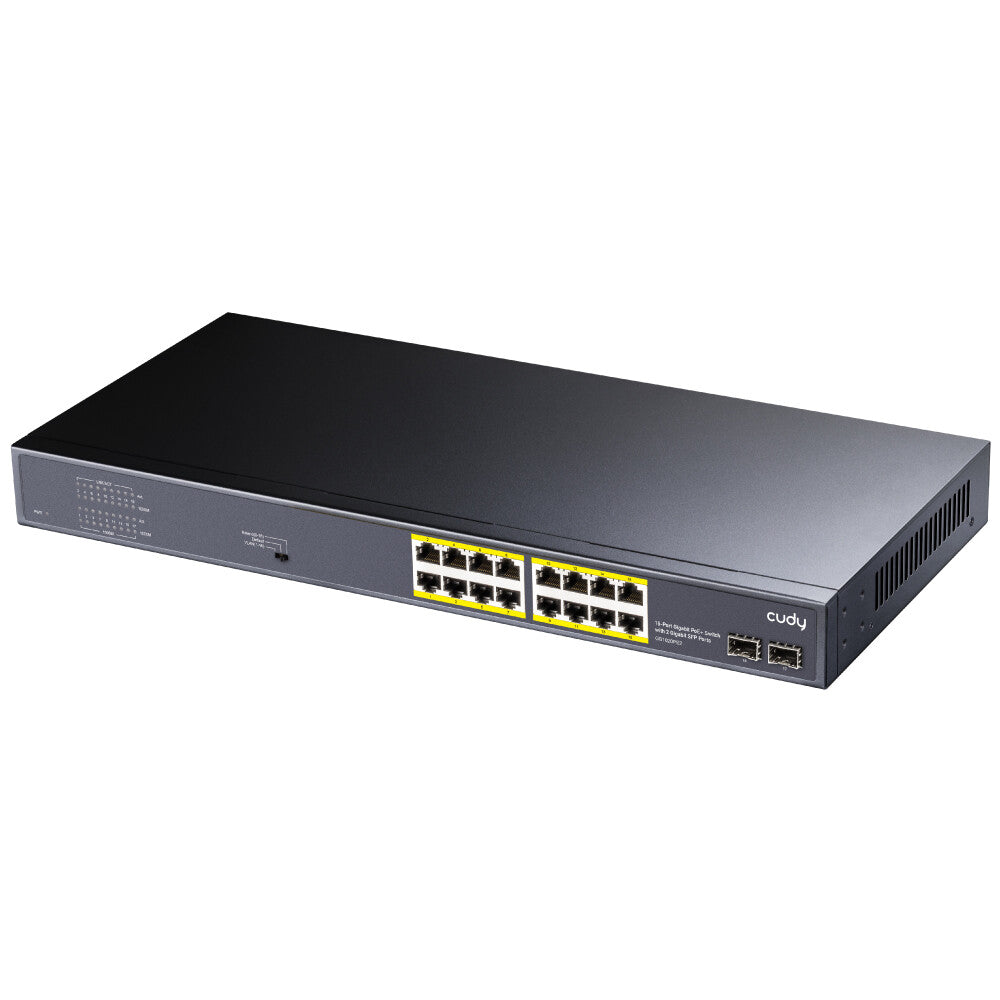

16-Port, Gigabit, PoE+ Switch with 2 Gigabit SFP Ports, Model: GS1020PS2, Black
16-Port PoE + 2-Port Fiber
- 10/100 / 1000Mbps Ethernet ports
- IEEE 802.3af / 802.3at compliant
- 200W total PoE power supply.
- Ideal for installing 16 PoE devices
- Auto-sensing technology delivers up to 30W of power to an 802.3at PoE + device with backwards compatibility for 802.3af PoE (15.4W) devices
200W Power budget & 30W Maximum One Port
Supports 200W total PoE+ power and up to 30W for one PoE port. Auto detect power device, will not burned non-standard PoE device or normal PoE switch. Complies with IEEE802.3af/at Standard.
Heat Dissipation
Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment.
High Quality TPS PoE chipset inside
High Quality TPS PoE chipset inside ensure High performance and stable operation of the product.
Auto-sensing technology
The port power prioritization technology ensures the continuous power supply of the key nodes.
Lightning protection
- Electrostatic standard: contact 6KV, air 8KV
- MTBF > 50000 hour
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Ports & interfaces |
|---|
| Power connector |
AC-in jack |
| Fiber uplink ports quantity |
2 |
| Combo SFP ports quantity |
2 |
| Installed SFP modules quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Network |
|---|
| VLAN support |
Yes |
| Auto-sensing |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cable types supported |
Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1 |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-TX |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Optical fiber |
|---|
| Maximum transfer distance (Single-mode) |
120000 m |
| Maximum transfer distance (Multi-mode) |
2000 m |
| Transmission distance (max) |
120 km |
| Fiber type |
Multi-mode |
| Switching optical modules type |
Gigabit Ethernet |
| Data transmission |
|---|
| Packet buffer memory |
4 MB |
| Forwarding rate |
38.7 Mpps |
| MAC address table |
8000 entries |
| Design |
|---|
| Airflow direction |
Side-to-side airflow |
| LED indicators |
Activity, Link, Power |
| Housing material |
Metal |
| Product colour |
Black |
| Rack mounting |
Yes |
| Performance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| Power |
|---|
| Output current |
3.85 A |
| Output voltage |
52 V |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
200 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Power over Ethernet (PoE) ports quantity |
16 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 80 °C |
| Operating temperature (T-T) |
-20 - 50 °C |
| Packaging data |
|---|
| Cables included |
AC |
| Other features |
|---|
| Bandwidth |
52 Gbit/s |
