AC1200 xPON Wi-Fi Router
An xPON Wi-Fi router featuring GPON/EPON dual modes, CWMP, OMCI, IPTV (IGMP Proxy/Bridge/Tag VLAN), and EasyMesh, suitable for FTTH solution deployment.
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| WAN connection type |
GPON, RJ-45 |
| Wireless LAN features |
|---|
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) |
867 Mbit/s |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| WLAN data transfer rate (second band) |
867 Mbit/s |
| Modulation |
256-QAM |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Port forwarding |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Number of guest networks (5 GHz) |
1 |
| Number of guest networks (2.4 GHz) |
1 |

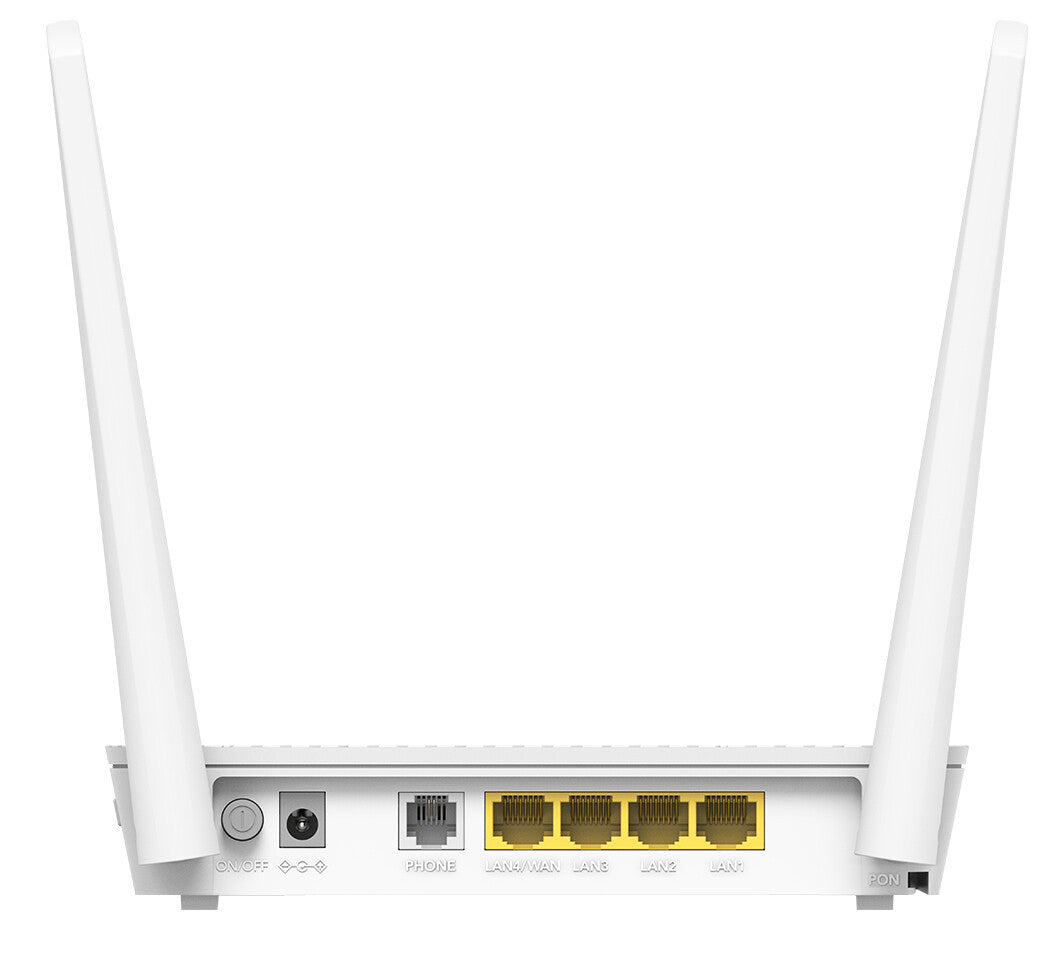

| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
3 |
| SC/APC GPON ports quantity |
1 |
| DC-in jack |
Yes |
| Management features |
|---|
| Quality of Service (QoS) support |
Yes |
| Reset button |
No |
| WPS push button |
Yes |
| MIMO |
Yes |
| MU-MIMO technology |
Yes |
| Security |
|---|
| Security algorithms |
WPA, WPA2, WPA3 |
| Firewall |
Yes |
| Guest access |
Yes |
| Parental control |
Yes |
| Filtering |
Yes |
| MAC address filtering |
Yes |
| IP address filtering |
Yes |
| URL filtering |
Yes |
| IGMP snooping |
Yes |
| DMZ support |
Yes |
| Protocols |
|---|
| DHCP client |
Yes |
| DHCP server |
Yes |
| Design |
|---|
| Product type |
Tabletop router |
| Product colour |
White |
| Wall mountable |
Yes |
| LED indicators |
LAN, Power, WLAN |

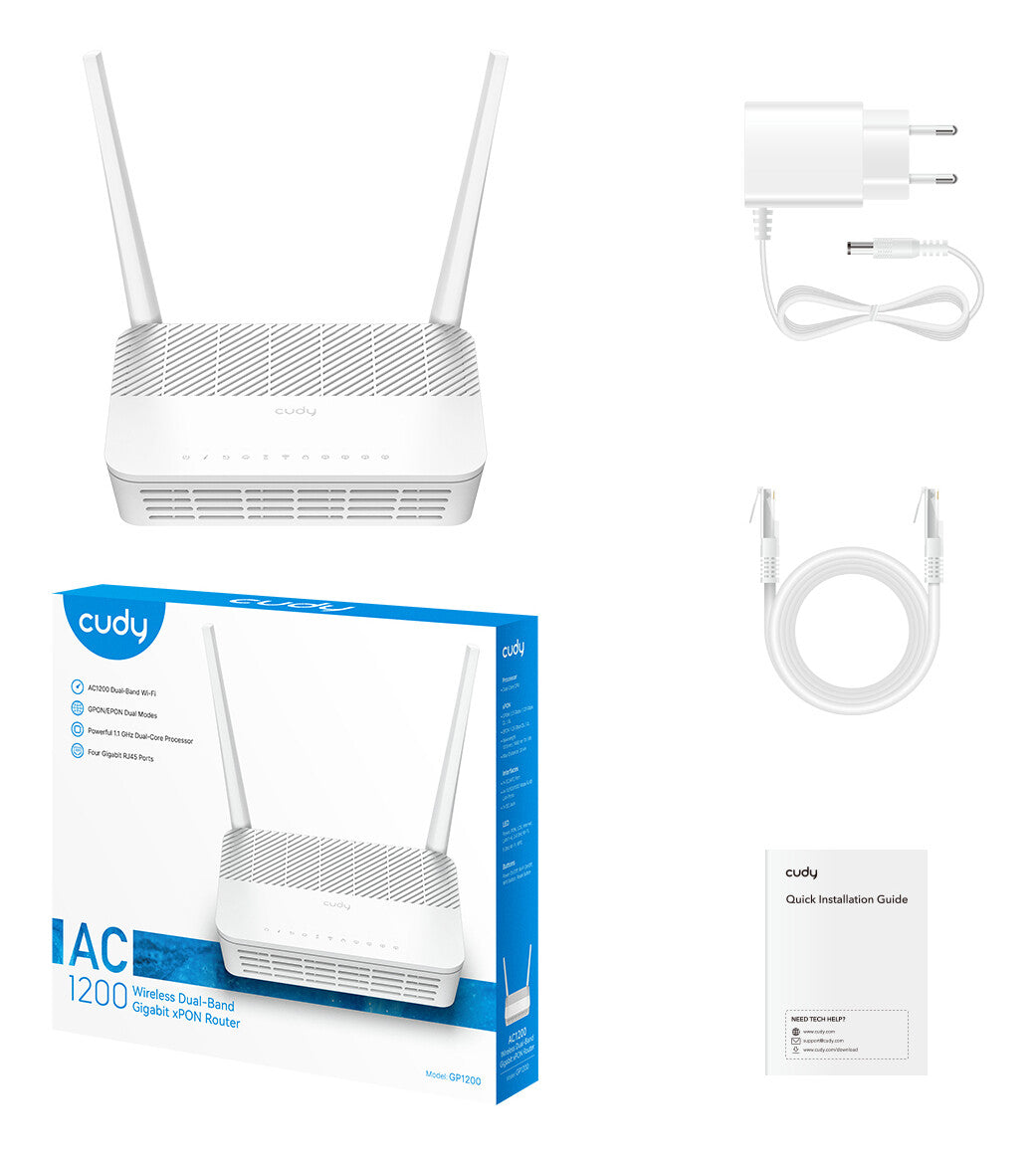

| Packaging content |
|---|
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Antenna included |
Yes |
| PoE injector included |
No |
| Mounting kit |
No |
| Quick installation guide |
Yes |
| Quick start guide |
Yes |
| Antenna |
|---|
| Antenna design |
External |
| Antenna type |
2x2 |
| Antenna gain level (max) |
5 dBi |
| Antennas quantity |
2 |
| Features |
|---|
| Built-in processor |
Yes |
| Processor frequency |
1150 MHz |
| Processor cores |
2 |
| Internal memory |
256 MB |
| Flash memory |
128 MB |
| Power |
|---|
| Power source type |
DC |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Output voltage |
12 V |
| Output current |
1 A |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
288 g |
| Height |
33 mm |
| Depth |
123.8 mm |
| Width |
173 mm |
| Packaging data |
|---|
| Package width |
304 mm |
| Package depth |
268 mm |
| Package height |
54 mm |
| Package weight |
681 g |
| Number of products included |
1 pc(s) |
| Logistics data |
|---|
| Warranty period |
1 year(s) |
| Country of origin |
China |
