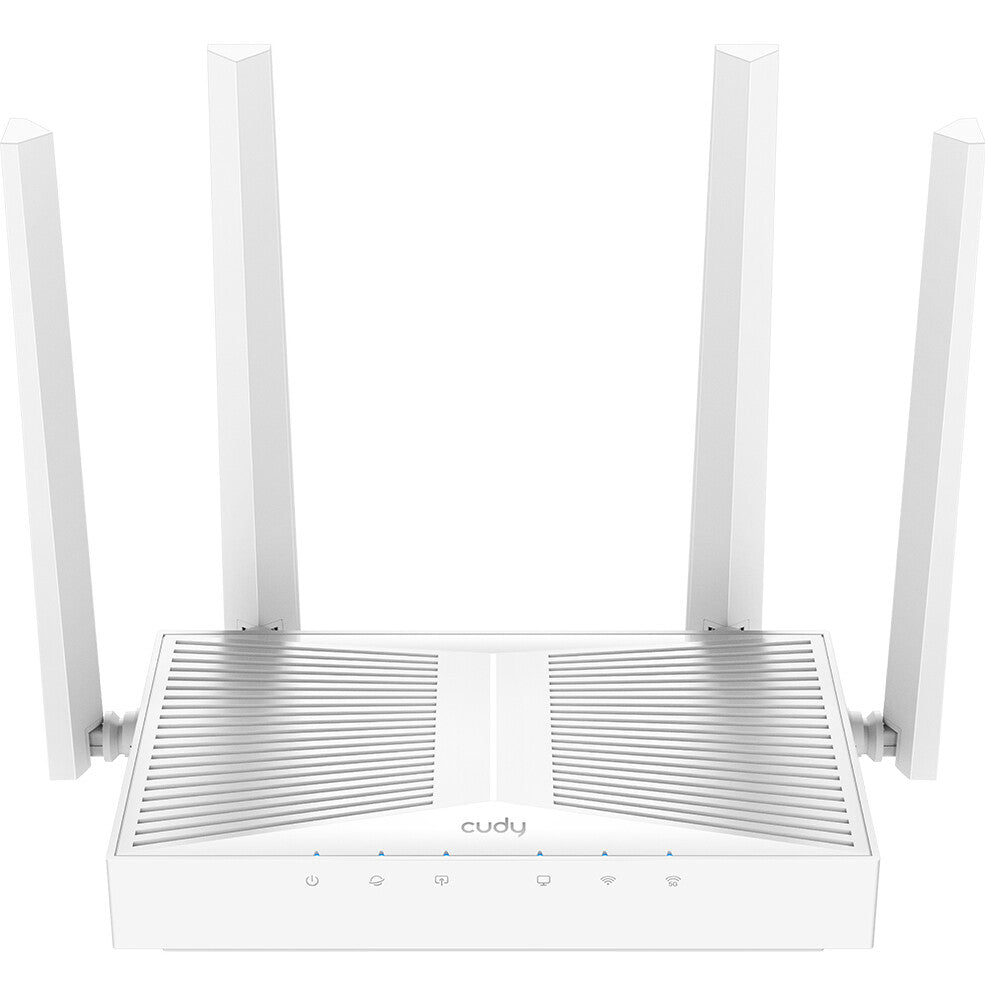

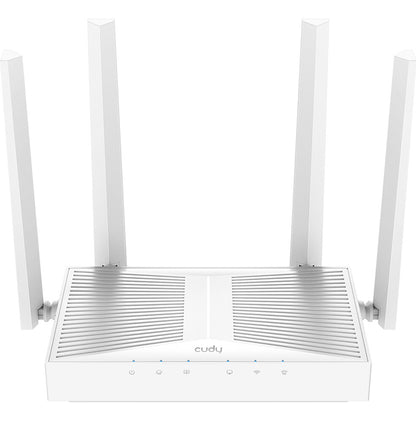

AX3000 Gigabit Mesh Wi-Fi 6 Router
More Devices, Lower Latency
Easier Combos in Games
In addition to the 2T2R structure, one aditional 5 GHz stream enhance the agility to navigate signals through obstacles. The high-gain antennas and Beamforming boost the signal to every corner of your home.
Connect More. Stay Fast.
Designed to connect 200 devices, with a maximum capacity of 512 devices, this router provides a more efficient network that loads faster for more without slowing down performance.
Parental Controls
Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.
Secure Remote Access with VPN Server and Client
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
No |
| WAN connection type |
RJ-45 |
| Wireless LAN features |
|---|
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) |
2402 Mbit/s |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) |
574 Mbit/s |
| WLAN data transfer rate (second band) |
2402 Mbit/s |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Port triggering |
Yes |
| Port forwarding |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Number of guest networks (5 GHz) |
1 |
| Number of guest networks (2.4 GHz) |
1 |
| VPN server |
WireGuard OpenVPN IPsec Zerotier PPTP L2TP |

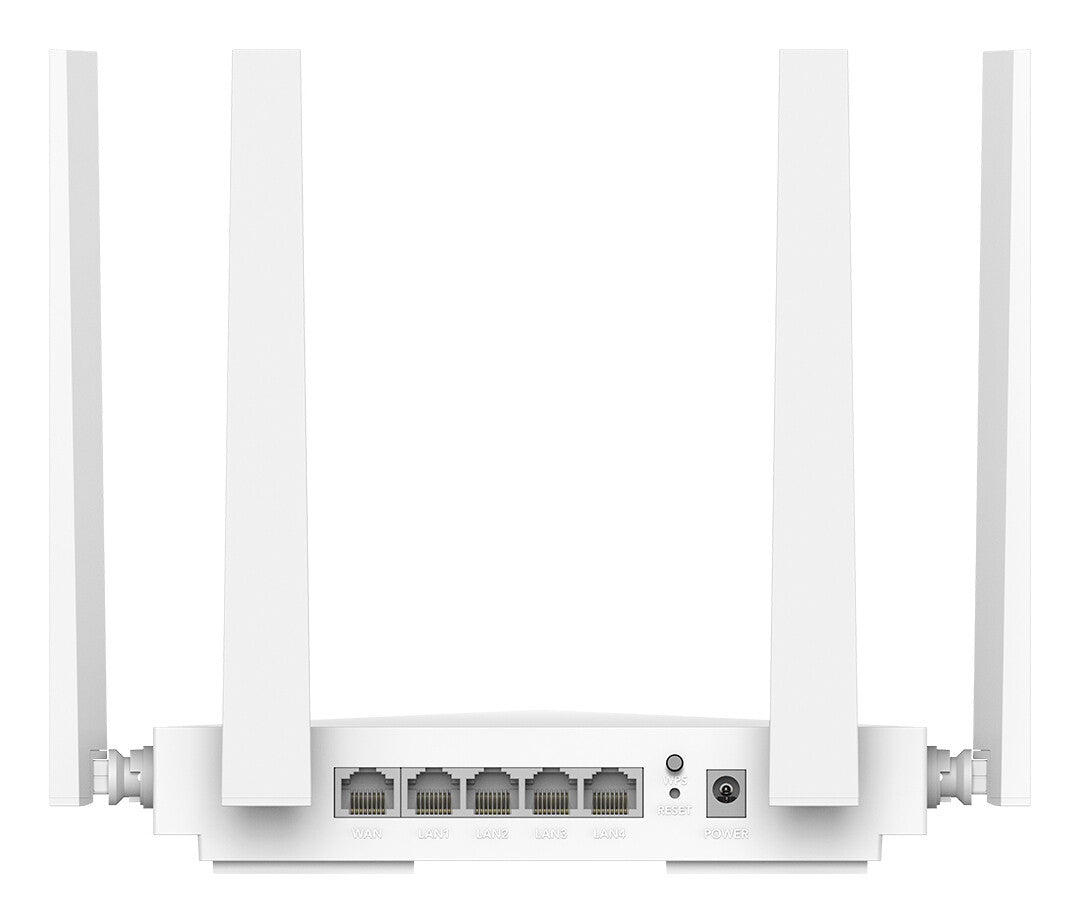

| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
4 |
| USB port |
No |
| DC-in jack |
Yes |
| Management features |
|---|
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Wake-on-LAN ready |
Yes |
| Reset button |
Yes |
| WPS push button |
Yes |
| MIMO |
Yes |
| MU-MIMO technology |
Yes |
| Security |
|---|
| Security algorithms |
WPA, WPA2, WPA3 |
| Firewall |
Yes |
| Guest access |
Yes |
| Filtering |
Yes |
| MAC address filtering |
Yes |
| IP address filtering |
Yes |
| URL filtering |
Yes |
| IGMP snooping |
Yes |
| DMZ support |
Yes |
| Protocols |
|---|
| DHCP client |
Yes |
| DHCP server |
Yes |
| Universal Plug and Play (UPnP) |
Yes |
| Design |
|---|
| Product type |
Tabletop router |
| Product colour |
White |
| Wall mountable |
Yes |
| LED indicators |
LAN, Power, WAN, WLAN |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC) |

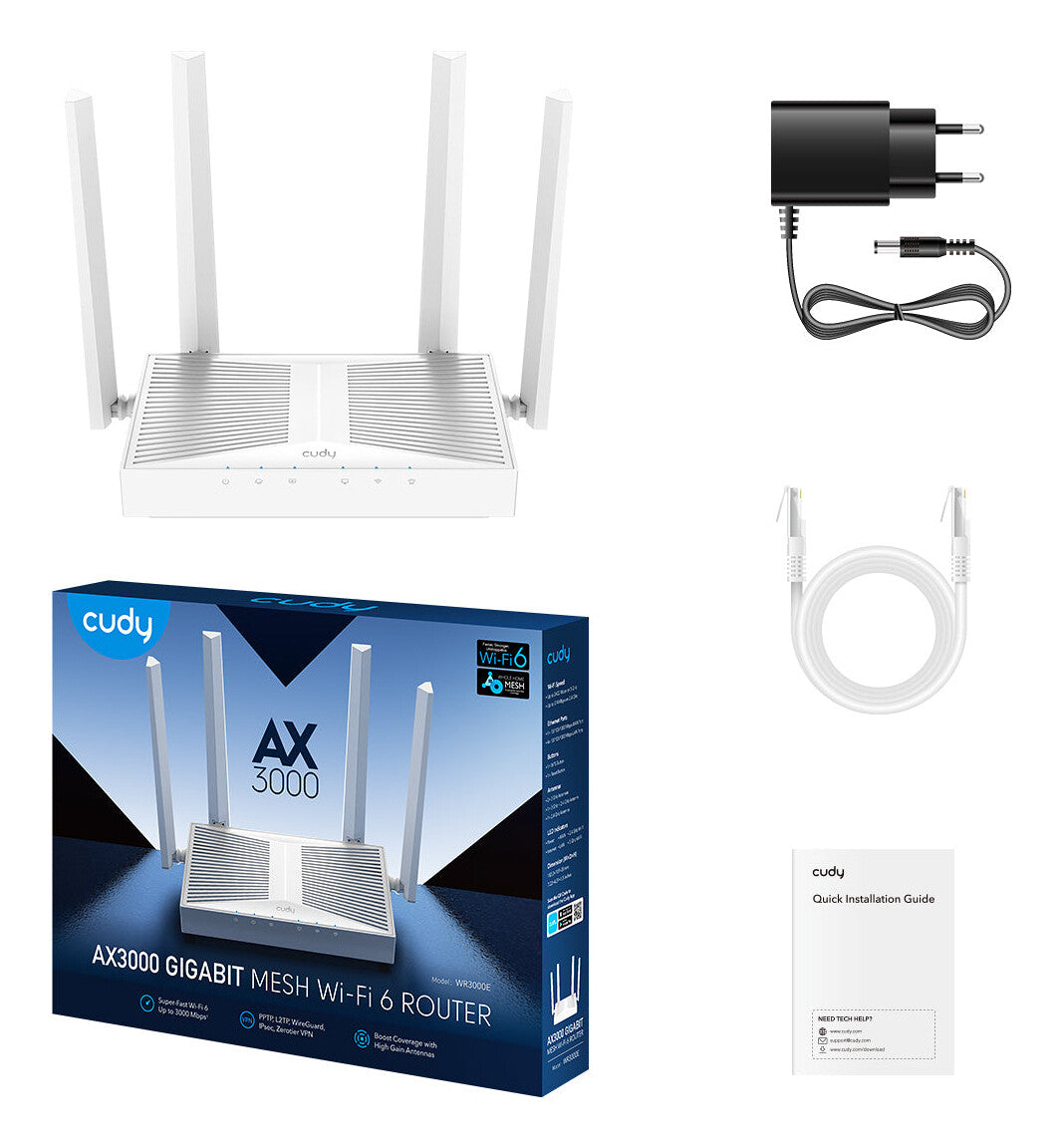

| Packaging content |
|---|
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Quick installation guide |
Yes |
| Antenna |
|---|
| Antenna design |
External |
| Antenna type |
2x2 |
| Antenna gain level (max) |
5 dBi |
| Antennas quantity |
4 |
| Antenna direction type |
Omni-directional |
| Features |
|---|
| Built-in processor |
Yes |
| Processor architecture |
ARM Cortex-A53 |
| Processor frequency |
1300 MHz |
| Processor cores |
2 |
| Internal memory type |
DDR3 |
| Internal memory |
256 MB |
| Flash memory |
128 MB |
| Power |
|---|
| Power source type |
DC |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Output voltage |
12 V |
| Output current |
1 A |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
330 g |
| Height |
38 mm |
| Depth |
109 mm |
| Width |
183.3 mm |
| Packaging data |
|---|
| Package width |
330 mm |
| Package depth |
256 mm |
| Package height |
60 mm |
| Package weight |
737.6 g |
