AC1200 Dual-Band Wi-Fi Router
Power Anywhere with USB-C
Power WR1200E with a phone charger, power bank or laptop, easy to carry and convenient for travel, work and everyday use.
Shares with Wired Devices Flawlessly
One WAN port plus three LAN ports let you connect multiple devices via stable Ethernet cable without needing another network switch.
Boosted Coverage, Lower Latency
Beamforming detects the direction of connected devices and forms a focused signal towards them to improve coverage.
Stay Safe, Stay Secure
One VPN for All Devices
Configure VPN client directly on the router and automatically secure all connected devices in your home.
WPA3 Encryption
Latest WPA3 encryption keeps your network protected with stronger security, making every connection safer for all your devices at home.
A dual-band WiFi router with three Fast Ethernet ports allows smooth video playback, gaming, and a maximum of 100 Mbps internet access, featuring MU-MIMO. The new WR1200E features an USB-C power port to supports standard USB power supply, unlocking more flexible usage.
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
No |
| WAN connection type |
RJ-45 |
| Wireless LAN features |
|---|
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) |
867 Mbit/s |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| WLAN data transfer rate (second band) |
867 Mbit/s |
| Modulation |
256-QAM |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Port triggering |
Yes |
| Port forwarding |
Yes |
| Number of guest networks (5 GHz) |
1 |
| Number of guest networks (2.4 GHz) |
1 |

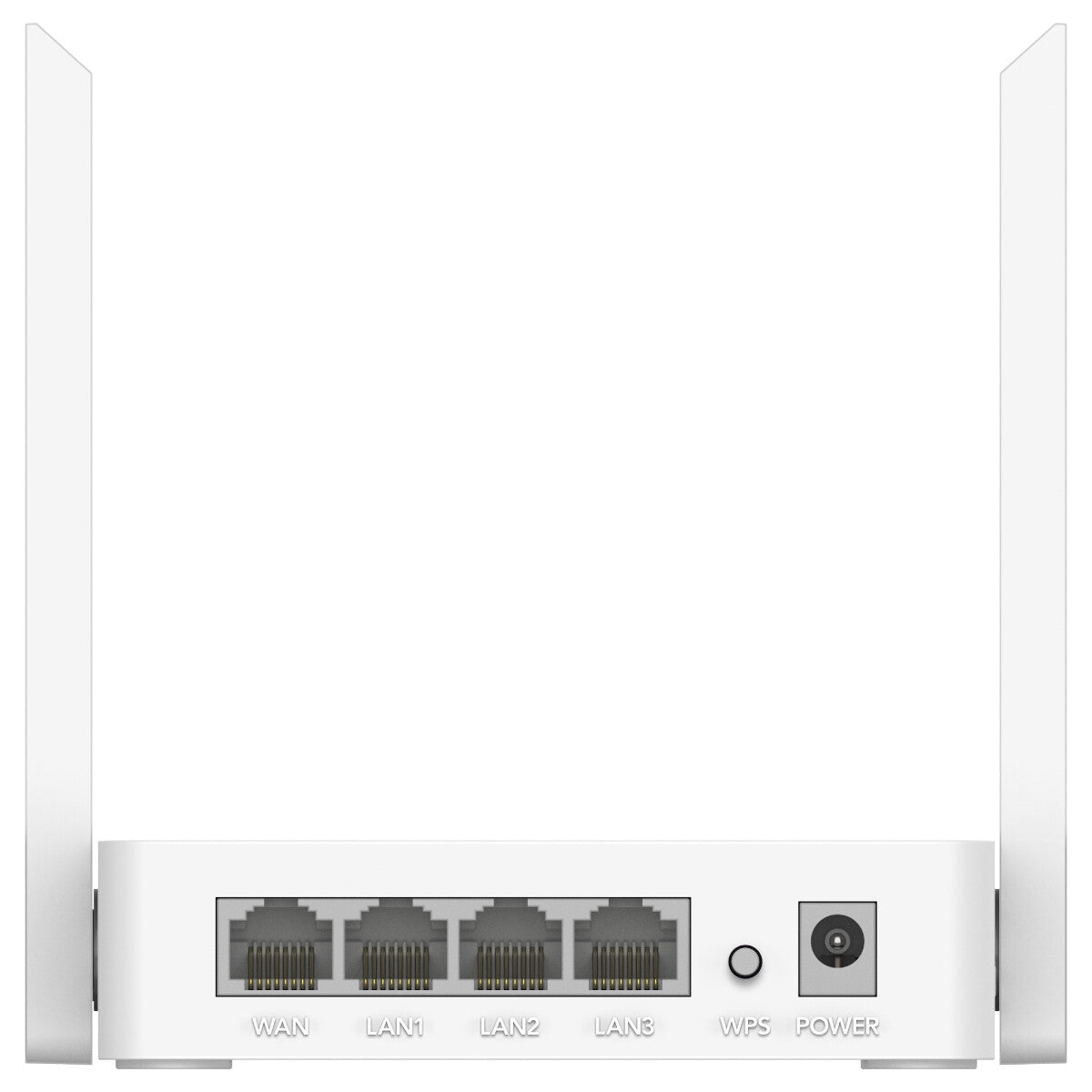

| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
3 |
| USB port |
No |
| DC-in jack |
Yes |
| Management features |
|---|
| Reset button |
Yes |
| WPS push button |
Yes |
| MIMO |
Yes |
| MU-MIMO technology |
Yes |
| Security |
|---|
| Security algorithms |
WPA, WPA2, WPA3 |
| Firewall |
Yes |
| Guest access |
Yes |
| Filtering |
Yes |
| MAC address filtering |
Yes |
| IP address filtering |
Yes |
| URL filtering |
Yes |
| IGMP snooping |
Yes |
| DMZ support |
Yes |
| Protocols |
|---|
| DHCP client |
Yes |
| DHCP server |
Yes |
| Design |
|---|
| Product type |
Tabletop router |
| Product colour |
White |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC) |

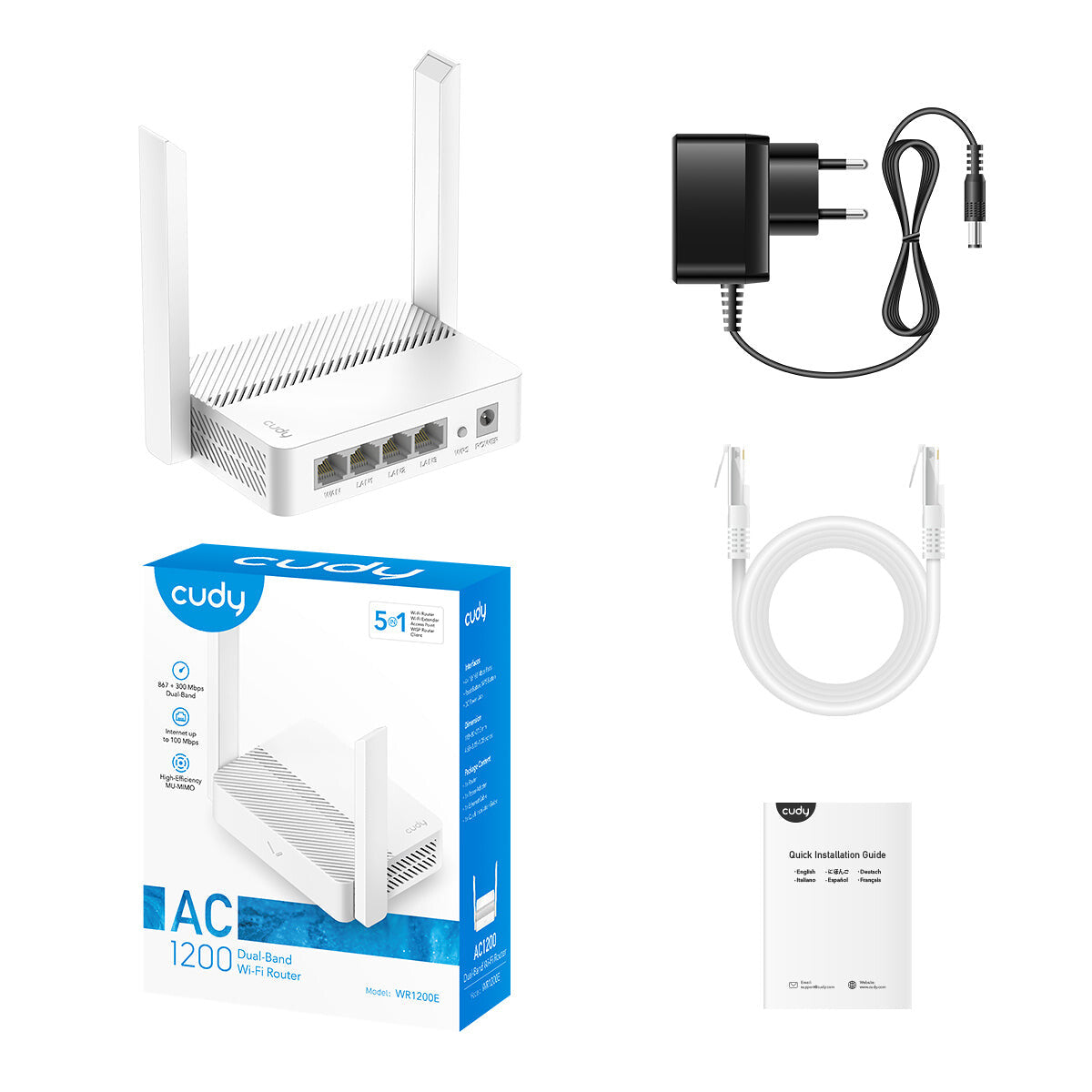

| Packaging content |
|---|
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Quick installation guide |
Yes |
| Antenna |
|---|
| Antenna design |
External |
| Antenna gain level (max) |
4.93 dBi |
| Antennas quantity |
2 |
| Detachable antenna(s) |
No |
| Features |
|---|
| Built-in processor |
Yes |
| Processor frequency |
580 MHz |
| Processor cores |
1 |
| Internal memory type |
DDR2 |
| Internal memory |
64 MB |
| Flash memory |
8 MB |
| Power |
|---|
| Power source type |
DC |
| Output voltage |
12 V |
| Output current |
1 A |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
100 g |
| Height |
27.5 mm |
| Depth |
80 mm |
| Width |
118 mm |
| Packaging data |
|---|
| Package width |
176 mm |
| Package depth |
140.5 mm |
| Package height |
56 mm |
| Package weight |
350 g |
