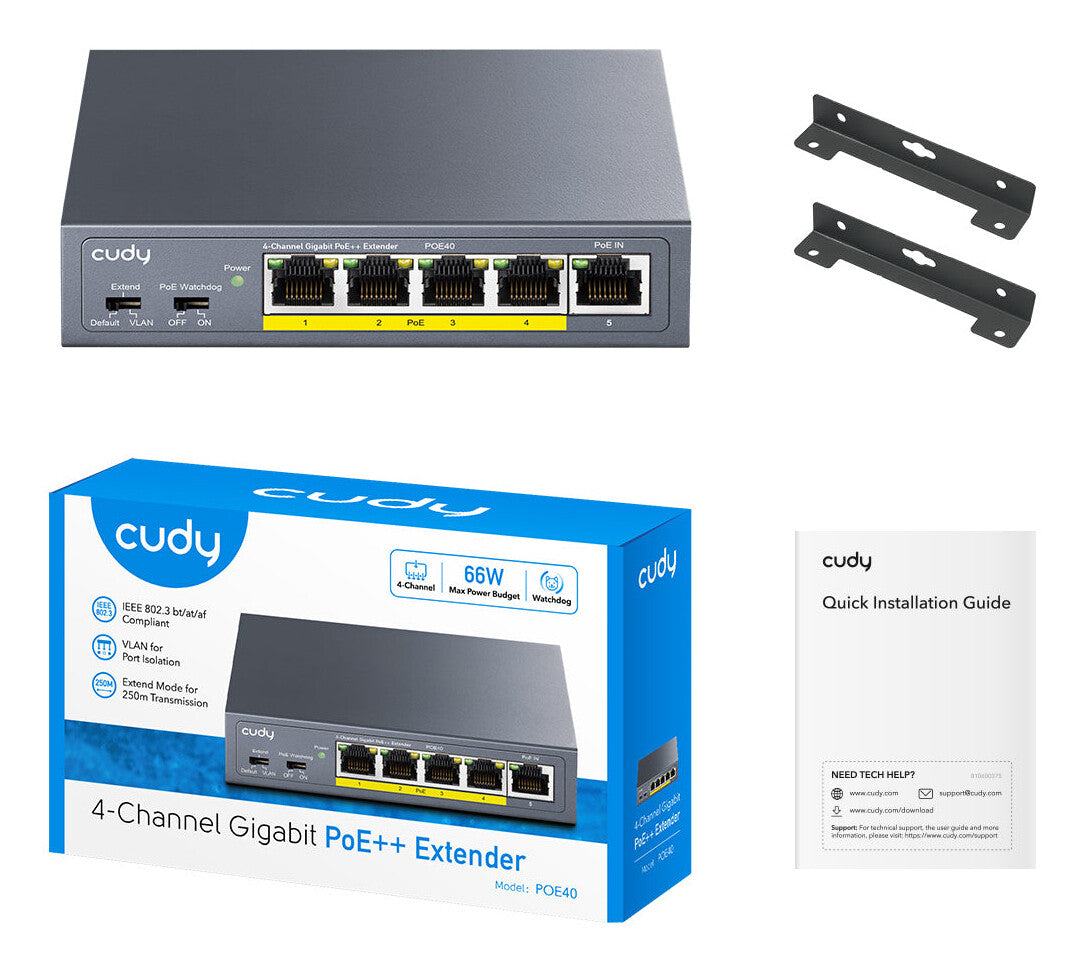

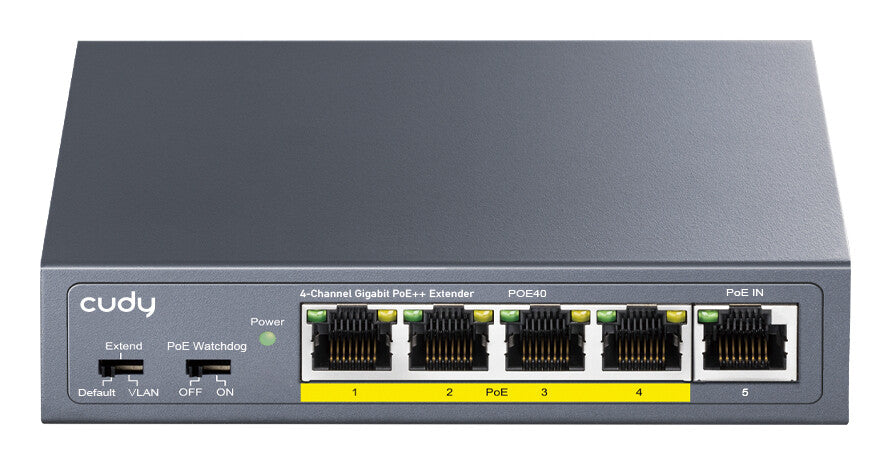

Cudy POE40 PoE adapter Gigabit Ethernet
In stock
Overview
Power, Speed & Control in One
1 PoE In | 4 PoE Out
Expand your PoE network effortlessly with one input (up to 90W) powering 4 outputs (up to 30W each).
Gigabit Speed Experience
Experience ultra-fast data transmission with a dedicated Gigabit port, ensuring blazing speeds and reliable connectivity for your network.
VLAN Mode
Prevent down link ports to communicate with each other, improving network security.
Extend Mode
Prolong the transmission to a maximum of 250 meters and simplify installation. (These ports' speed will be capped at 10 Mbps.)
| Network | |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Duplex system | Full, Half |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Cable types supported | Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1 |
| Features | |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Wall mountable | Yes |
| Easy to install | Yes |
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Activity, Link, Power |
| Pin assignment & polarity | 1/2 (-), 3/6 (+), 7/8 (-), 4/5 (+) |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 4 |
| Power | |
|---|---|
| Output power | 60 W |
| Power consumption (max) | 2 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 32 - 113 °F |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 119 mm |
| Depth | 85 mm |
| Height | 28 mm |
| Weight | 254.5 g |
Specifications
| Brand | Cudy |
|---|---|
| Type | PoE Adapters |
| SKU | POE40 |
| Barcode | 6971690791513 |
