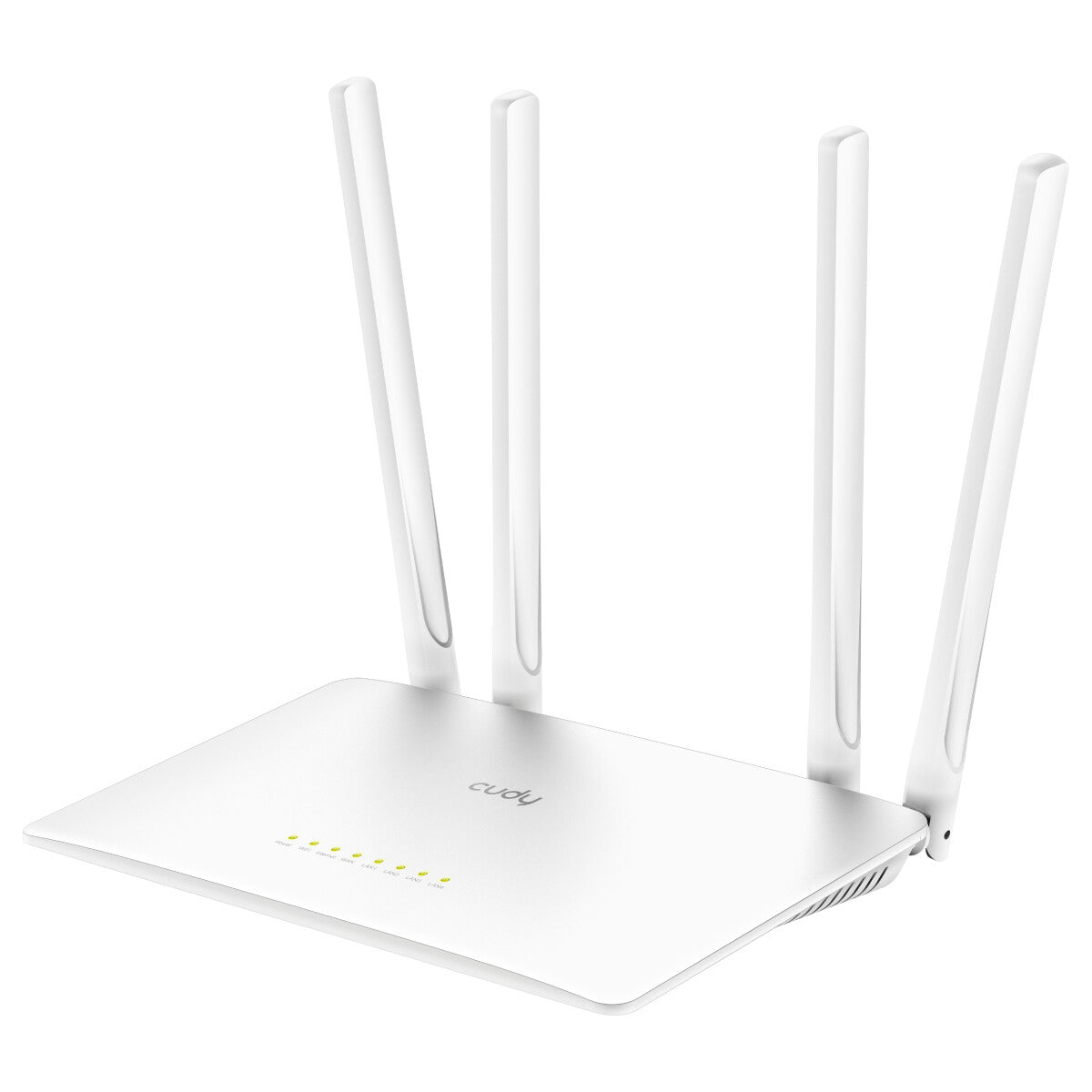

300 Mbps Multi-Mode Wi-Fi Router, WR300S 1.0
A Wi-Fi router with five Ethernet ports and four antennas built for long-range coverage allows smooth video playback and a maximum of 100 Mbps internet access, featuring Cudy Mesh and local app control.
Reliable Speed for Everyday Efficiency
WR300S delivers consistent high-speed connectivity for homes and small offices. Enjoy smooth HD streaming, multitasking, and easy setup in a compact, energy saving design - perfect for hassle free performance.
Effortless Connectivity for Every Device
Stable connections for all devices, powered by interference-resistant tech. Supports work, streaming, and smart homes with robust multi-device performance—always responsive.
Easy to Use
Finish setup in minutes and know the system status at a glance with the status panel.
Device Management
Set a bedtime and a domain blacklist to regulate your children's online behavior.
Enhanced Security
WPA3 encrypts your wireless communication and protects your data from leaking.
Cudy Mesh
Seamless whole-home WiFi—no dead zones, auto-optimized speeds. Stream, game, work, everywhere.
Parental Controls
Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
No |
| WAN connection type |
RJ-45 |
| Wireless LAN features |
|---|
| Wi-Fi band |
Single-band (2.4 GHz) |
| Top Wi-Fi standard |
Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Modulation |
64-QAM |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Multicast support |
Yes |
| Port triggering |
Yes |
| Port forwarding |
Yes |
| Maximum coverage |
90 m² |
| Ping check |
Yes |
| PPPoE/PPTP/L2TP pass-through |
Yes |

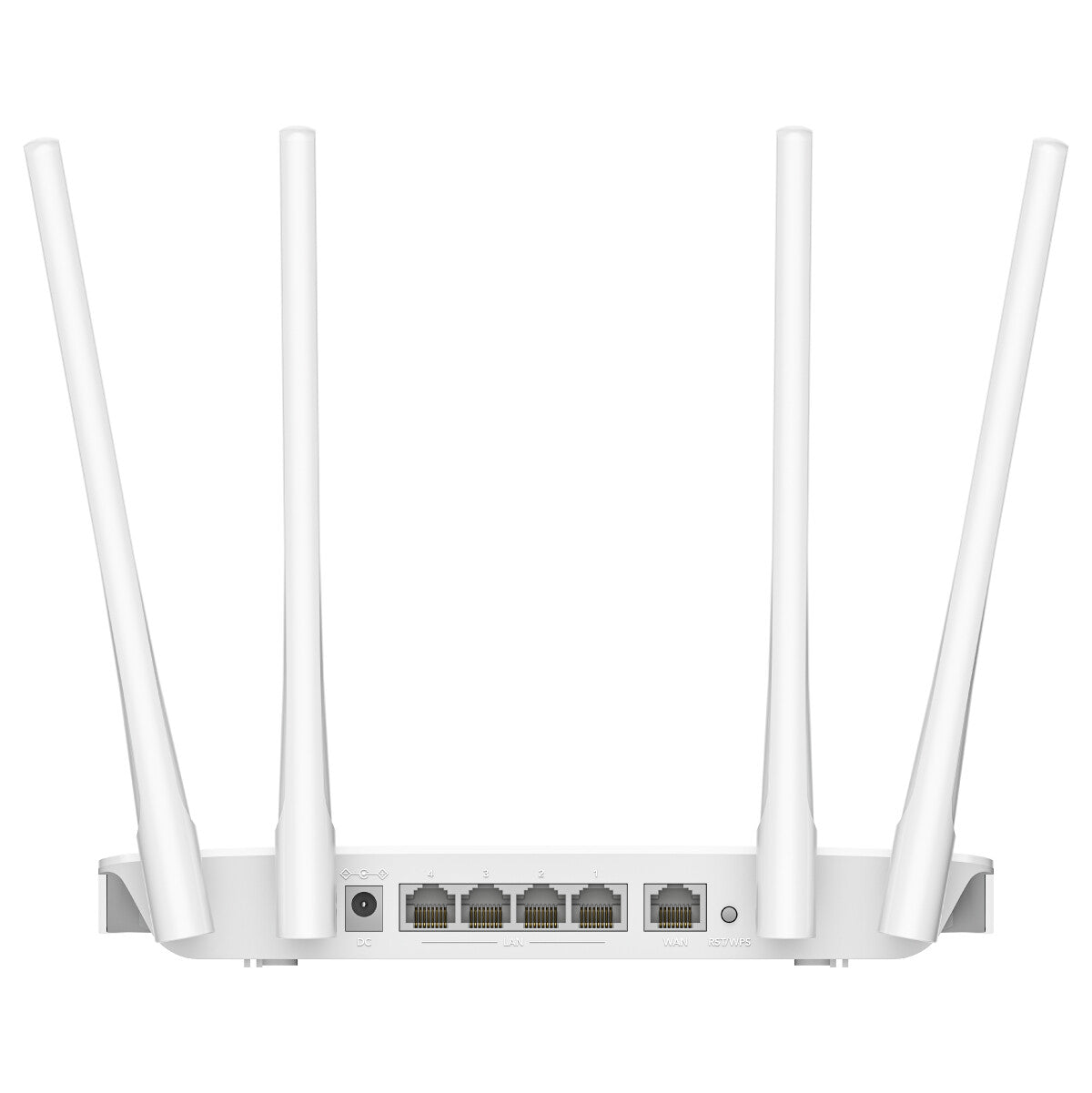

| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
5 |
| USB port |
No |
| DC-in jack |
Yes |
| Management features |
|---|
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Wake-on-LAN ready |
Yes |
| Reset button |
Yes |
| WPS push button |
Yes |
| Security |
|---|
| Security algorithms |
WPA, WPA2, WPA3 |
| Firewall |
Yes |
| DDoS protection |
Yes |
| Parental control |
Yes |
| Filtering |
Yes |
| MAC address filtering |
Yes |
| IP address filtering |
Yes |
| URL filtering |
Yes |
| System event log |
Yes |
| IGMP snooping |
Yes |
| DMZ support |
Yes |
| Protocols |
|---|
| DHCP client |
Yes |
| DHCP server |
Yes |
| Universal Plug and Play (UPnP) |
Yes |
| Design |
|---|
| Product type |
Desktop/pole router |
| Product colour |
White |
| Wall mountable |
Yes |
| LED indicators |
WLAN, WAN, LAN, System |
| Certificates |
|---|
| Compliance certificates |
Federal Communications Commission (FCC), CE |

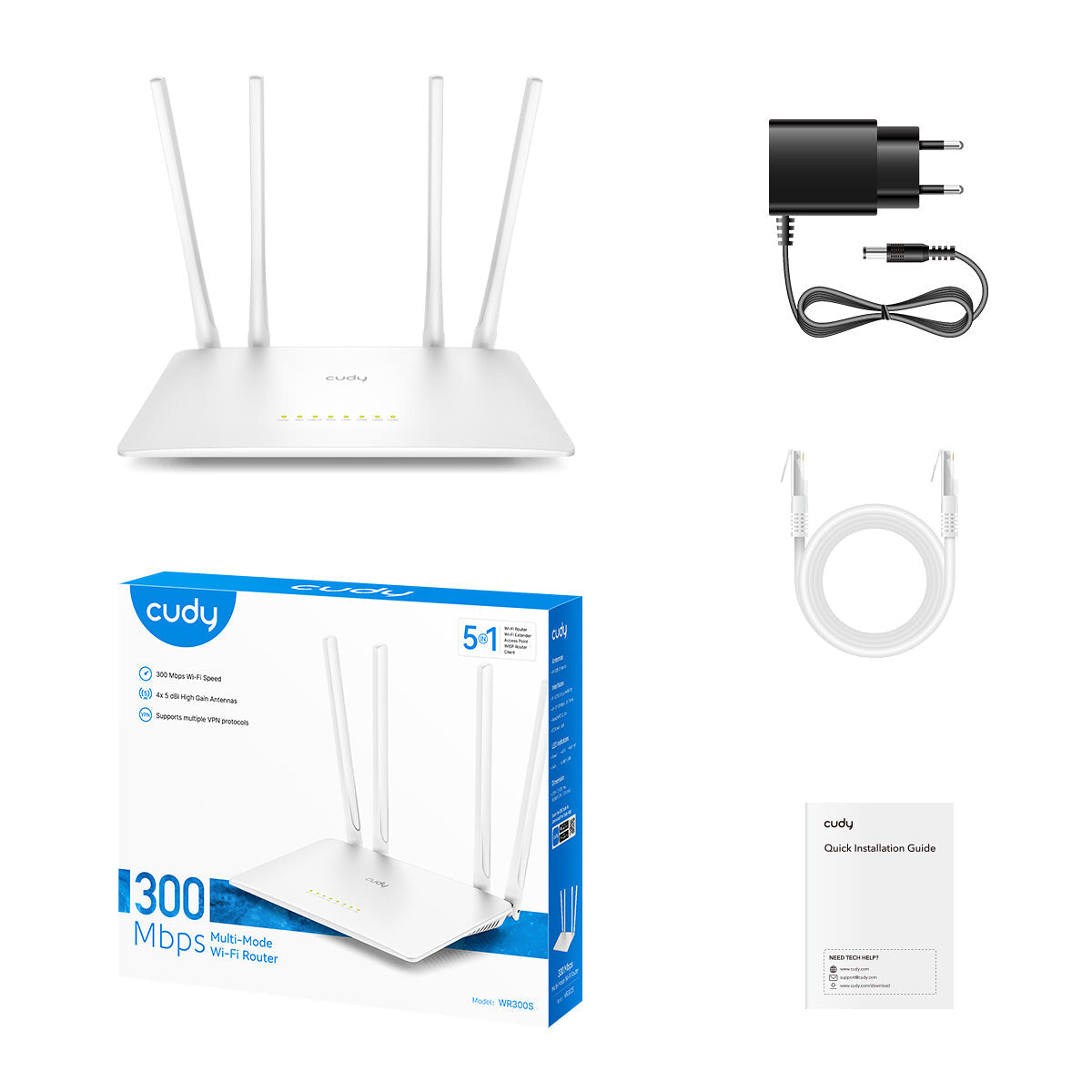

| Packaging content |
|---|
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Quick installation guide |
Yes |
| Antenna |
|---|
| Antenna design |
External |
| Antennas quantity |
4 |
| Features |
|---|
| Built-in processor |
Yes |
| Processor frequency |
580 MHz |
| Processor cores |
1 |
| Internal memory type |
DDR2 |
| Internal memory |
64 MB |
| Flash memory |
8 MB |
| Cloudflare DNS |
Yes |
| Languages support |
Multi |
| Firmware upgradeable |
Yes |
| Power |
|---|
| Power source type |
DC |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Output voltage |
5 V |
| Output current |
1 A |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
249.8 g |
| Height |
30 mm |
| Depth |
135 mm |
| Width |
220 mm |
| Packaging data |
|---|
| Package width |
290 mm |
| Package depth |
250 mm |
| Package height |
64 mm |
| Package weight |
612.5 g |
| Logistics data |
|---|
| Master (outer) case width |
538 mm |
| Master (outer) case length |
516 mm |
| Master (outer) case height |
313 mm |
| Master (outer) case gross weight |
10.9 kg |
| Products per master (outer) case |
16 pc(s) |
| Other features |
|---|
| Number of users |
64 user(s) |
