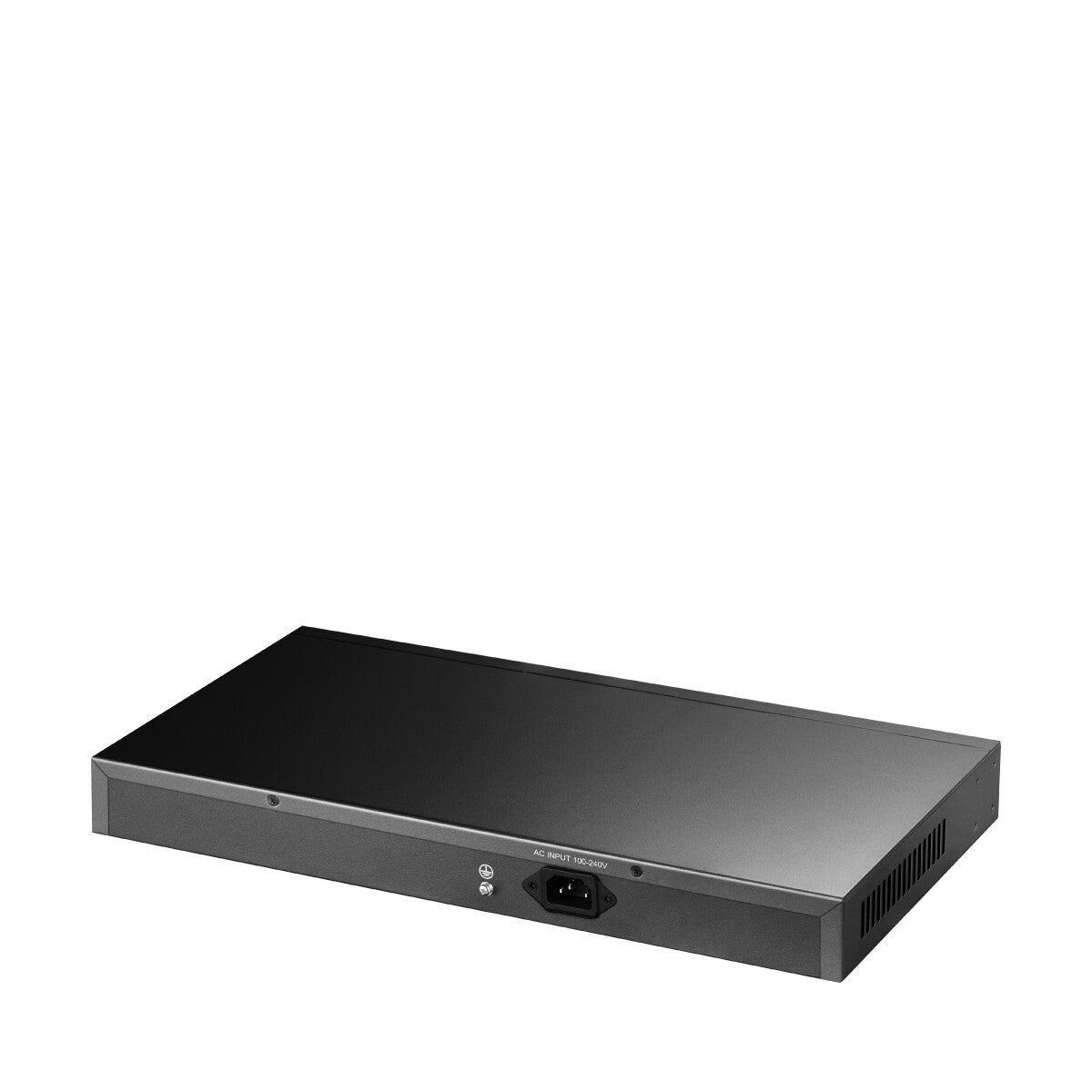

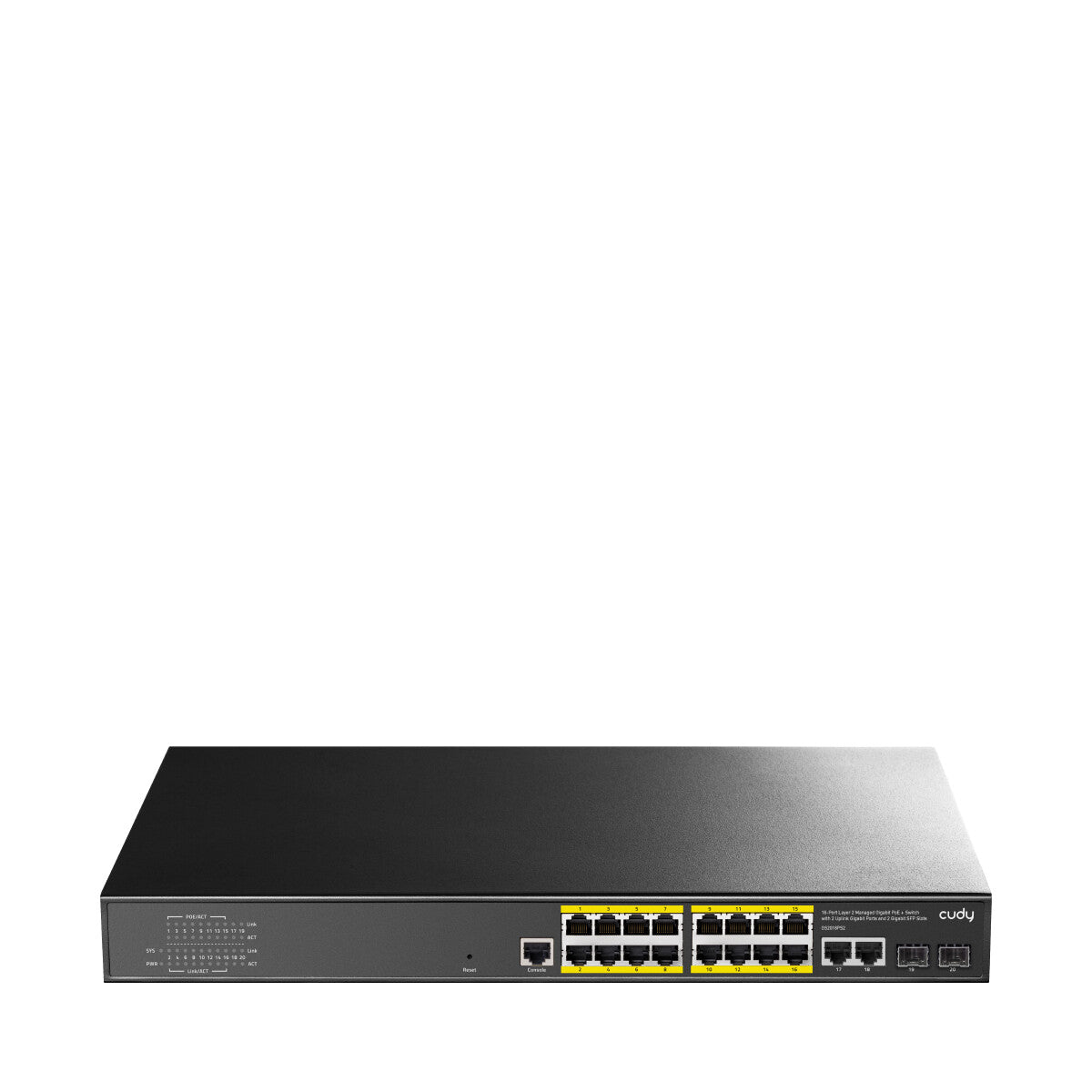

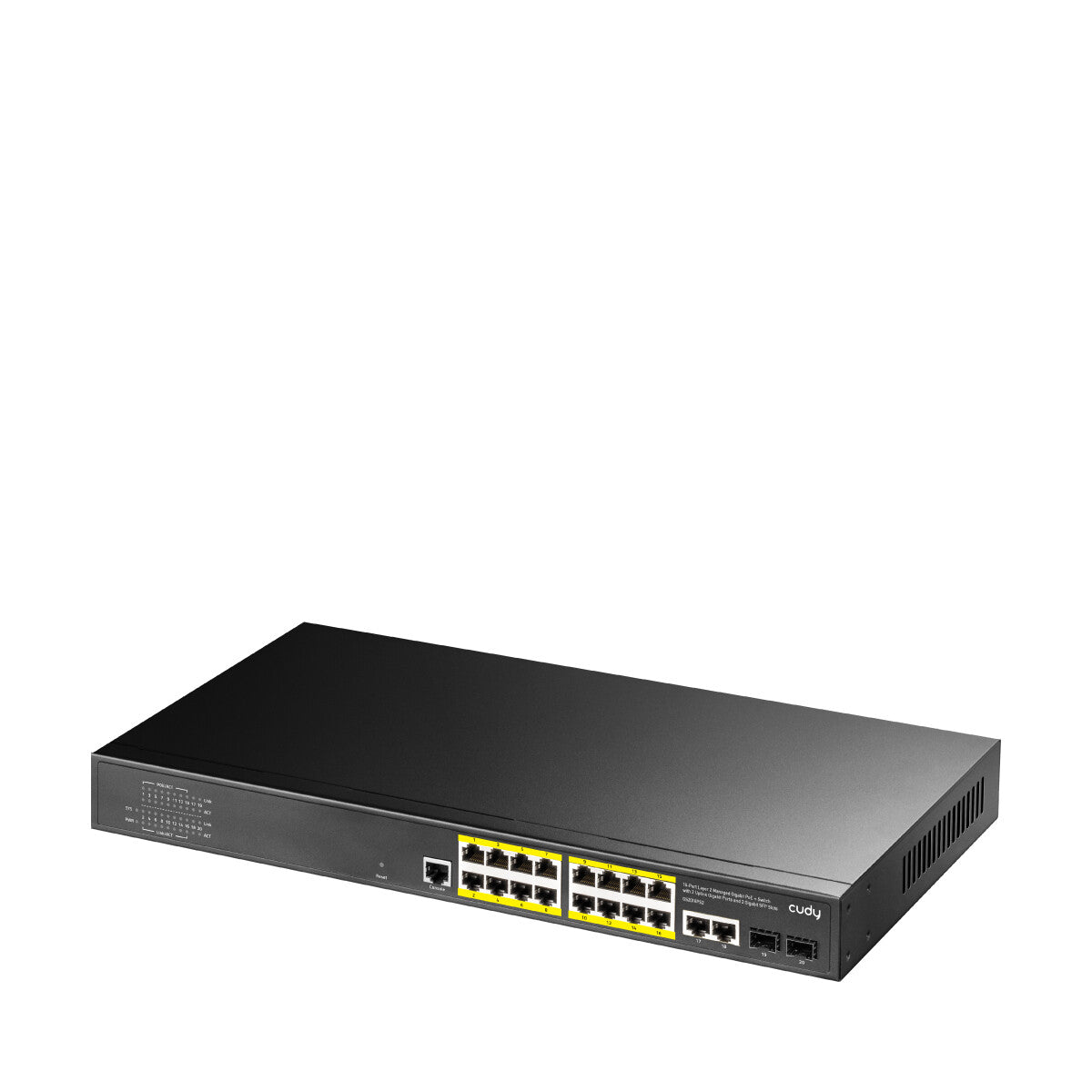

16-Port Gigabit Managed PoE+ Switch with 2 Uplink GbE Ports and 2 SFP, GS2018PS2 1.0
A rack-mounted 18-GbE, 2-SFP, Layer 2 PoE switch with a 200W power supply and a silent cooling system.
| Packaging content |
|---|
| Manual |
Yes |
| Rack mount kit |
Yes |
| Management features |
|---|
| Switch type |
Managed |
| Switch layer |
L2/L3 |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| ARP inspection |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
16 |
| SFP module slots quantity |
2 |
| Uplink ports quantity |
2 |
| Console port |
RJ-45 |
| Power connector |
AC-in jack |
| Network |
|---|
| Networking standards |
IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ad, IEEE 802.11d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1x |
| 10G support |
No |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T, 1000BASE-T |
| Cable types supported |
Cat3, Cat5, Cat5e |
| Port mirroring |
Yes |
| Ethernet Ring Protection Switching (ERPS) |
Yes |
| Rate limiting |
Yes |
| Spanning tree protocol |
Yes |
| Broadcast storm control |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| VLAN support |
Yes |
| Virtual LAN features |
MTU VLAN, Port-based VLAN, Voice VLAN, MAC address-based VLAN, IP subnet–based VLAN, Management VLAN |
| Number of VLANs |
4096 |
| Data transmission |
|---|
| MAC address table |
8192 entries |
| Switching capacity |
40 Gbit/s |
| Forwarding rate |
29.76 Mpps |
| Number of trunks |
4 |
| Jumbo frames support |
Yes |
| Jumbo frames |
9600 |
| Packet buffer memory |
0.5 MB |
| Security |
|---|
| DHCP features |
DHCP snooping |
| Access Control List (ACL) |
Yes |
| IGMP snooping |
Yes |
| Queue scheduling algorithms |
WRR+SP |
| Authentication type |
IEEE 802.1x, AAA, TACACS+, RADIUS |
| BPDU filtering/protection |
Yes |
| Loop protection |
Yes |
| Multicast features |
|---|
| Multicast support |
Yes |
| Multicast Listener Discovery (MLD) snooping |
Y |
| Protocols |
|---|
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| IP Source Guard (IPSG) |
Yes |
| Design |
|---|
| Rack mounting |
Yes |
| Form factor |
1U |
| Product colour |
Black |
| Housing material |
Metal |
| Reset button |
Yes |
| LED indicators |
Power, System, Link, Activity, PoE |
| Performance |
|---|
| Memory type |
DDR-SDRAM |
| Internal memory |
128 MB |
| Flash memory |
16 MB |
| Firmware upgradeable |
Yes |
| Fanless |
Yes |
| Power |
|---|
| Power source |
AC/PoE |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power saving mode (EEE) |
Yes |
| Surge protection |
Yes |
| Surge protection voltage |
8 kV |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Power over Ethernet (PoE) power per port |
30 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 3048 m |
| Non-operating altitude |
0 - 3048 m |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
205 mm |
| Height |
44 mm |
| Weight |
2.73 kg |
| Packaging data |
|---|
| Cables included |
AC, Serial |
| Package width |
500 mm |
| Package depth |
290 mm |
| Package height |
85 mm |
| Package weight |
3.36 kg |
| Logistics data |
|---|
| Master (outer) case net weight |
16.8 kg |
| Master (outer) case width |
520 mm |
| Master (outer) case length |
445 mm |
| Master (outer) case height |
310 mm |
| Master (outer) case gross weight |
18.4 kg |
| Products per master (outer) case |
5 pc(s) |
