Midi-Tower, Mini-ITX/Micro-ATX/ATX/E-ATX, Steel/Tempered Glass/Plastic, USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 1 Type-A, Audio in/out
SHOW OFF

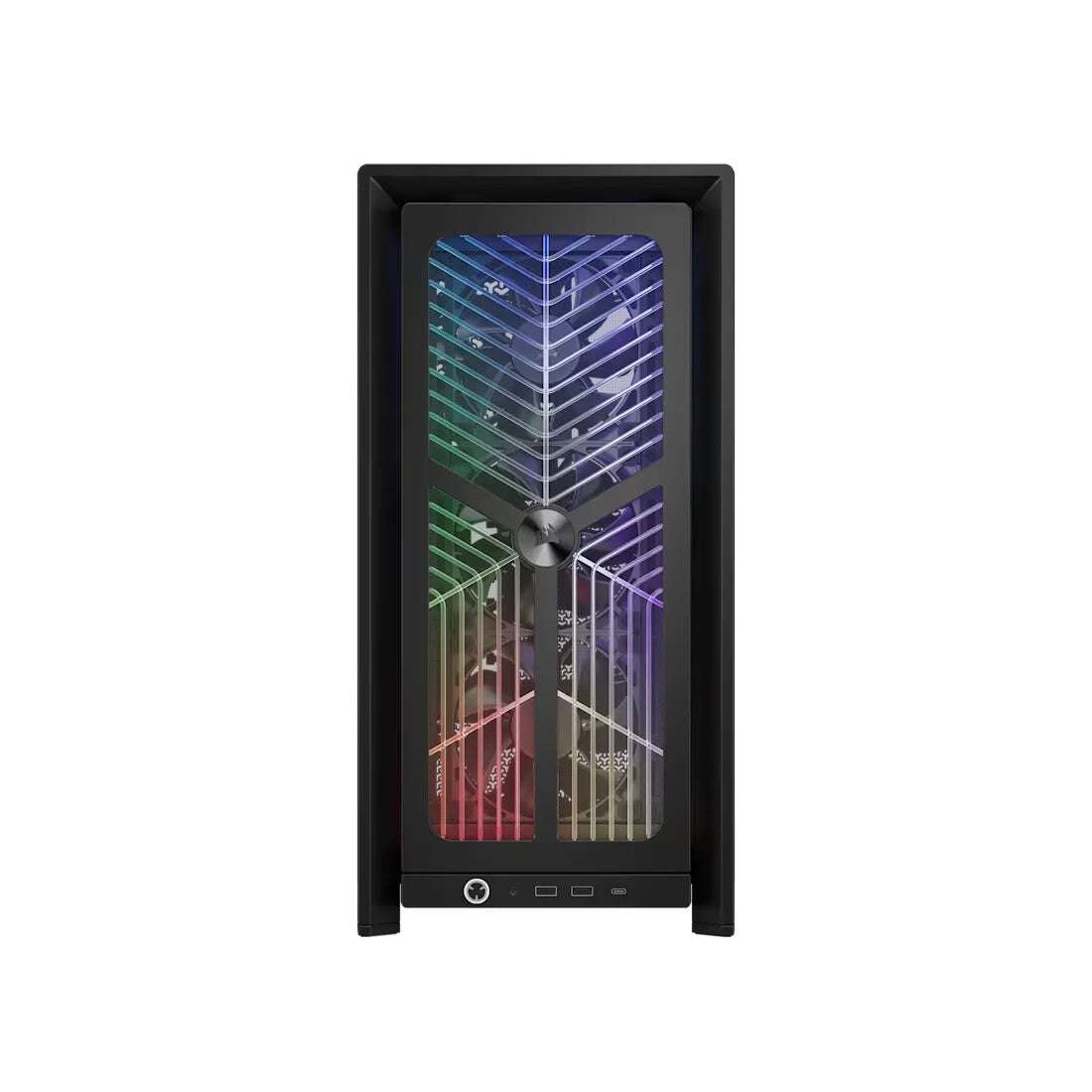

HIGH AIRFLOW RGB FRONT PANEL
The front panel is a brand-new design for CORSAIR that combines high-airflow ventilation with built-in RGB lighting for a customizable look with great cooling. The front panel’s RGB lighting uses 5V ARGB for easy motherboard connectivity and fan control using popular motherboard software.
DOUBLE DOWN ON COOLING

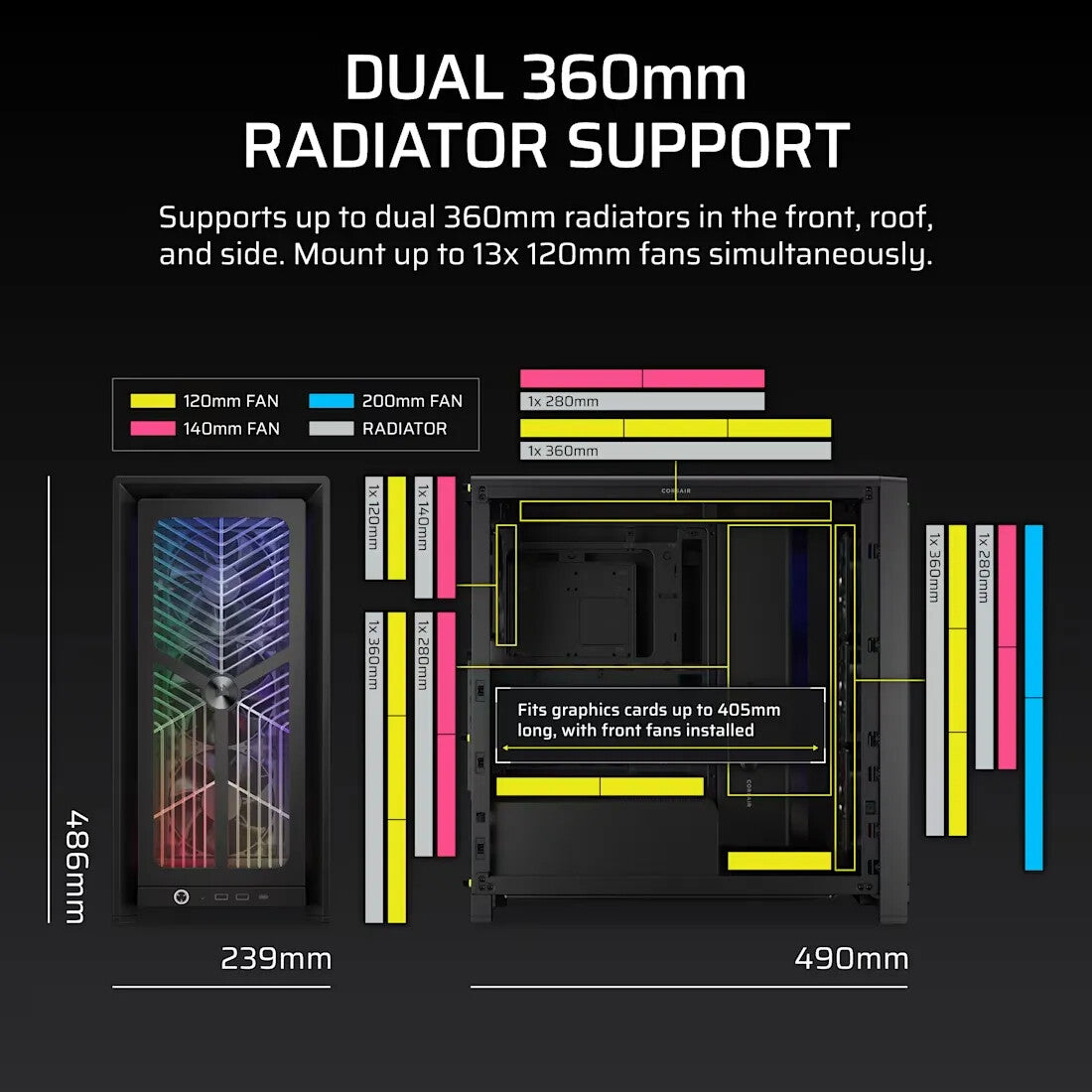

MULTIPLE 360mm RADIATOR SUPPORT
Boost your cooling with three dedicated mounting locations for 360mm radiators – front, roof, and side. You can mount up to 13x 120mm fans simultaneously, ensuring continuous cool air intake and efficient hot air exhaust.
GO WITH THE FLOW
FOUR RS120 PWM FANS INCLUDED
RS120 PWM fans feature daisy-chainable connections for easy setup. Their magnetic dome bearings minimize friction, delivering a perfect combination of high airflow and quiet operation.
MODULAR MARVEL
CUSTOMIZABLE FRAME DESIGN
The FRAME Modular Case System lets you modify your build with swappable parts to tailor the case to your needs. There's a wide selection of FRAME accessories, ranging from various front and side panels to alternative PSU shrouds or motherboard trays, making it easy to create a completely different look.
FAN FOCUSED
INFINIRAIL™ FAN MOUNTING SYSTEM
This steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail to mount fans up to 200mm (140mm in the roof) exactly where you need them, ensuring targeted airflow without limitations of fixed mounting points.
LOADED WITH USEFUL FEATURES
AN EASY BUILD AWAITS
The FRAME 4000X has thoughtful features throughout for DIY PC builders.
HIDE YOUR CABLES
Fully compatible with reverse-connector motherboards for pristine builds with no visible cables.
TEMPERED GLASS SIDE PANEL
Show off your build's lighting and cable management with a full-length tempered glass side panel.
GPU ANTI-SAG ARM
The adjustable GPU Anti-sag Stabilization Arm protects oversized GPUs and your PCIe slot from sag-related damage.
WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 13x 120mm fans, plus versatile radiator mounting
| Design |
|---|
| Form factor |
Midi Tower |
| Type |
PC |
| Material |
Steel, Tempered glass, Plastic |
| Product colour |
Black |
| Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays |
1 |
| Number of 2.5" bays |
2 |
| Number of expansion slots |
7 |
| Tempered glass panel(s) |
Yes |
| Anti-dust filter |
Yes |
| Cable management |
Yes |
| RGB control button |
Yes |
| On/off button |
Yes |
| Reset button |
Yes |
| Maximum CPU cooler height |
17 cm |
| Maximum graphics card length |
43 cm |
| Maximum PSU length |
22 cm |
| Power supply |
|---|
| Power supply included |
No |
| Supported power supply form factors |
ATX |
| Ports & interfaces |
|---|

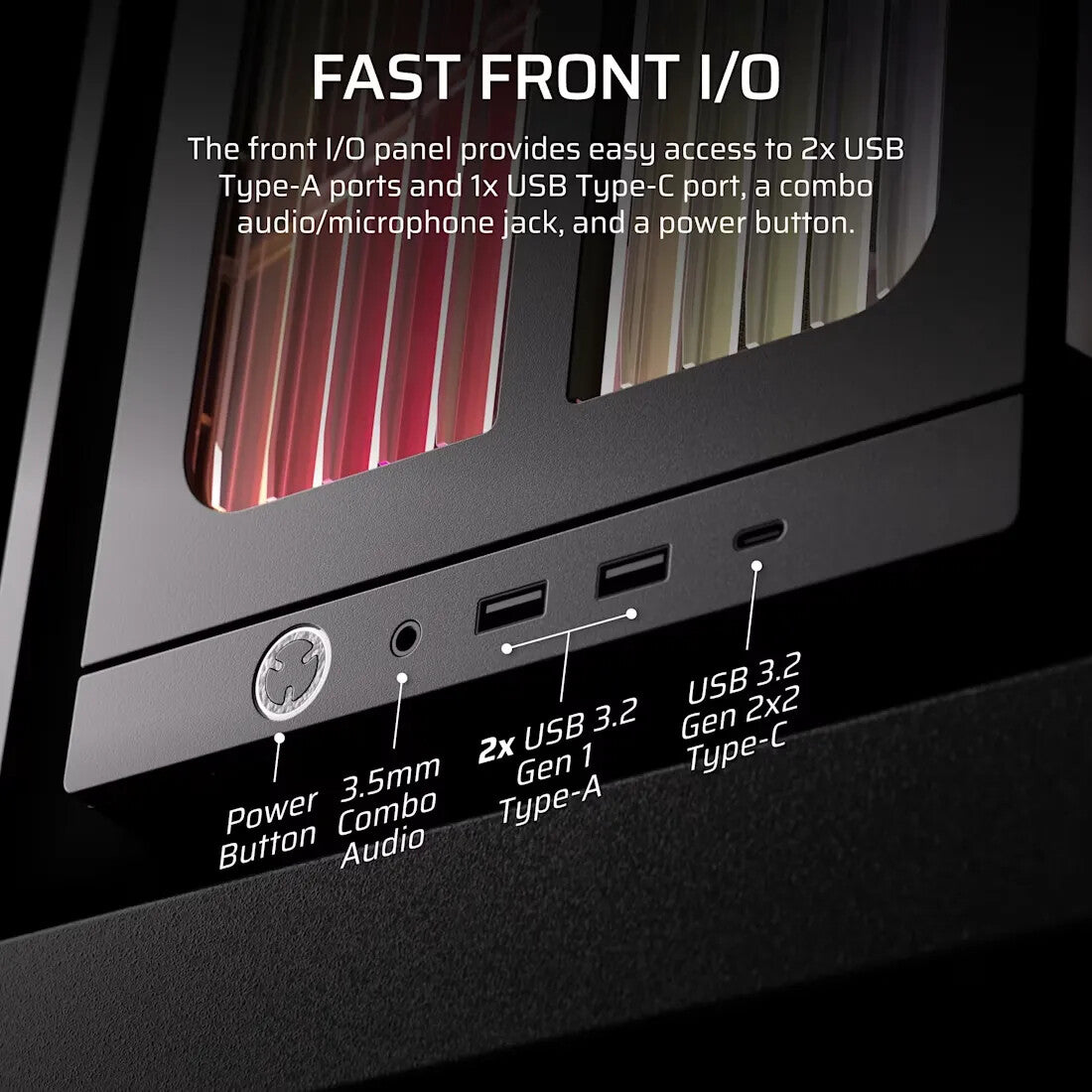

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| Combo headphone/mic port |
Yes |
| Cooling |
|---|
| Front fans installed |
3x 120 mm |
| Number of front fans supported (max) |
3 |
| Front fans diameters supported |
120,200,140 mm |
| Number of side fans supported (max) |
3 |
| Side fans diameters supported |
120,140 mm |
| Rear fans installed |
1x 120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
3 |
| Top fans diameters supported |
120,140 mm |
| Liquid cooling installed |
No |
| Liquid cooling capability |
Yes |
| Front radiator sizes supported |
240,280,360 mm |
| Side radiator sizes supported |
240,280,360 mm |
| Rear radiator sizes supported |
120,140 mm |
| Top radiator sizes supported |
240,280,360 mm |
| Storage |
|---|
| Supported HDD sizes |
3.5" |
| SSD form factor |
2.5" |
| Weight & dimensions |
|---|
| Width |
239 mm |
| Depth |
488 mm |
| Height |
486 mm |
| Weight |
11.5 kg |
