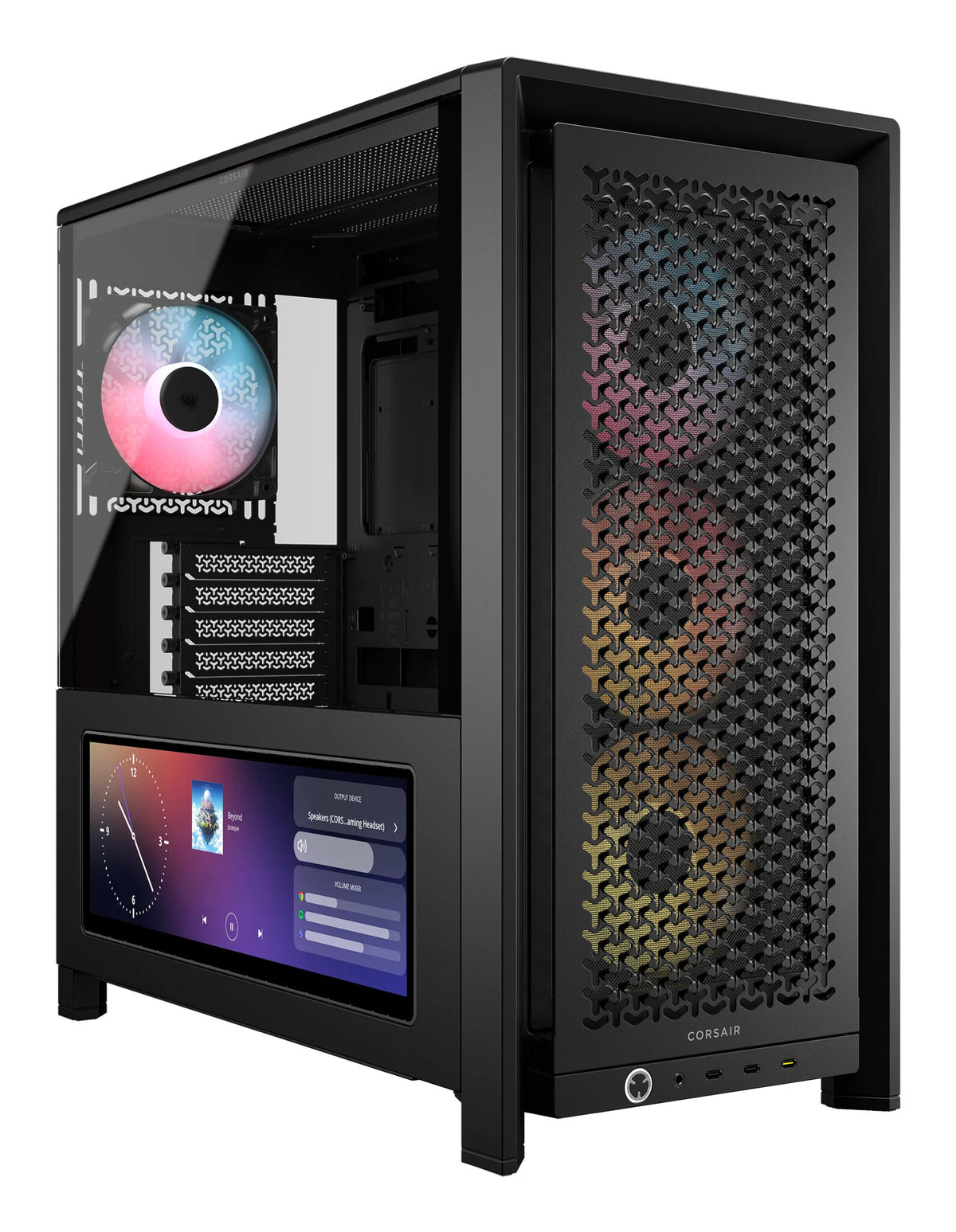

Midi Tower, Mini-ITX/Micro-ATX/ATX/E-ATX, Steel/Tempered Glass/Plastic, 14.5" LCD Display
A TOUCH ABOVE
LEVEL UP YOUR BATTLESTATION

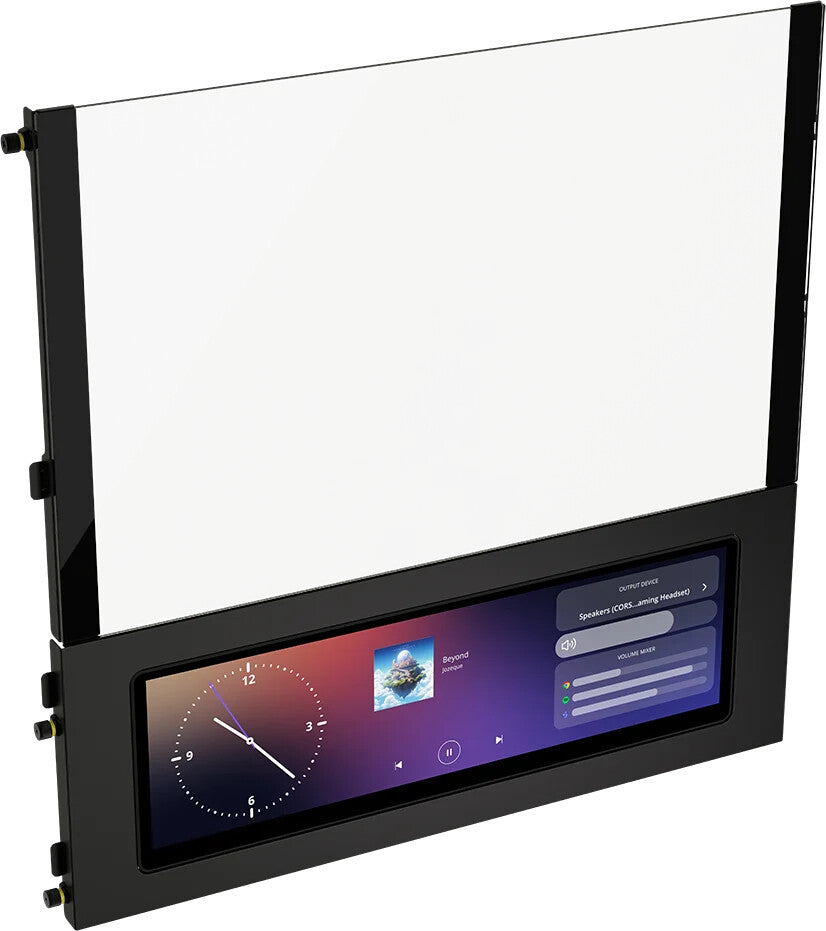

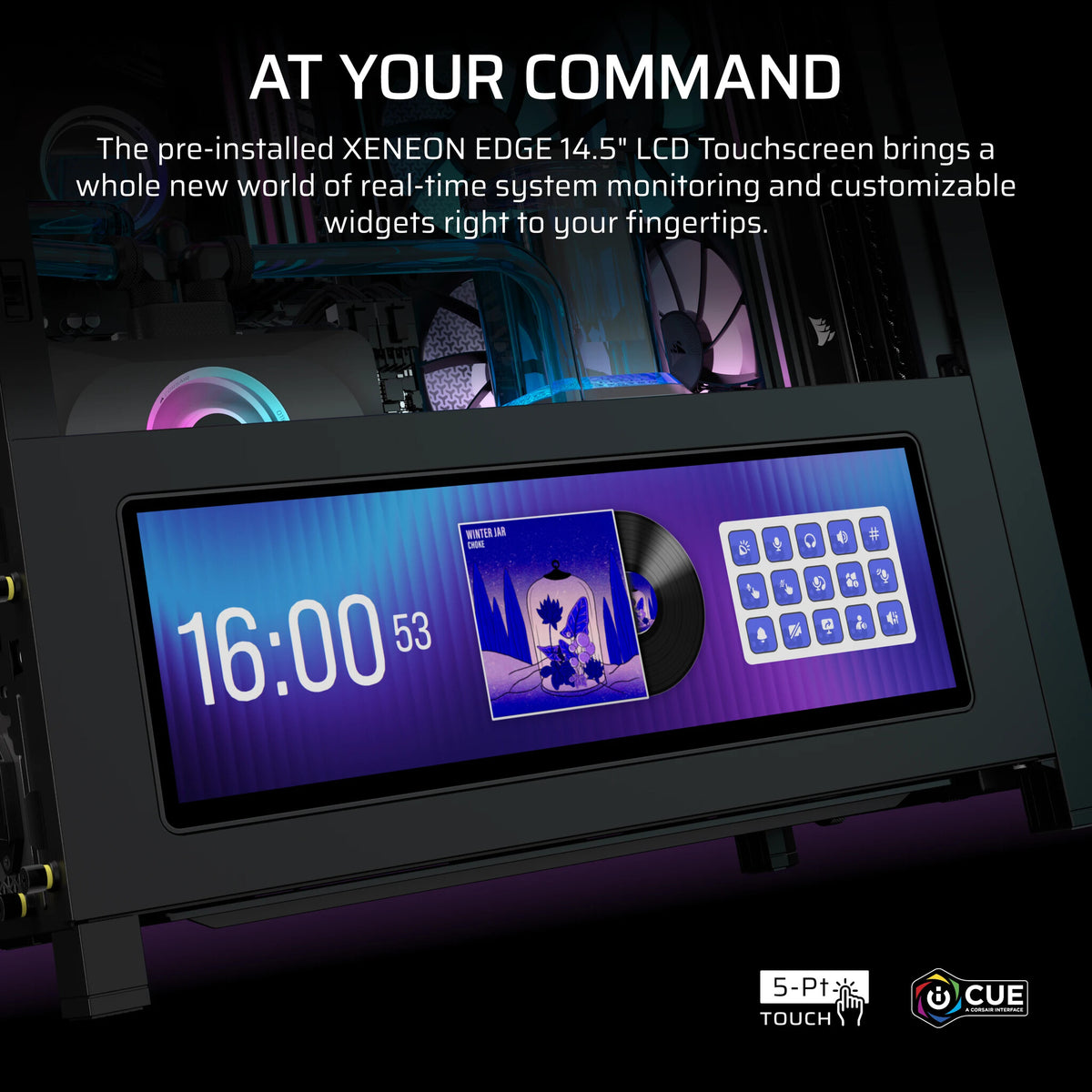

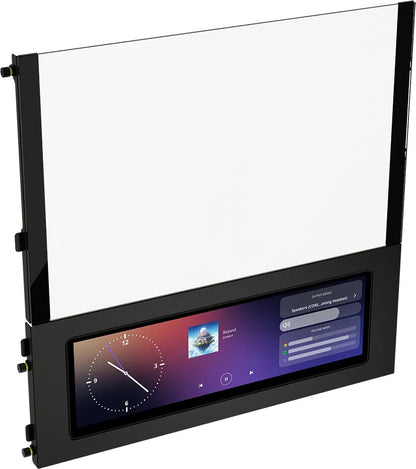

Take your build to the next level with this standout 14.5" display. Showcase system metrics, calendars, weather apps, or in-game chats.
PREMIUM POWER
BUILD YOUR DREAM MACHINE

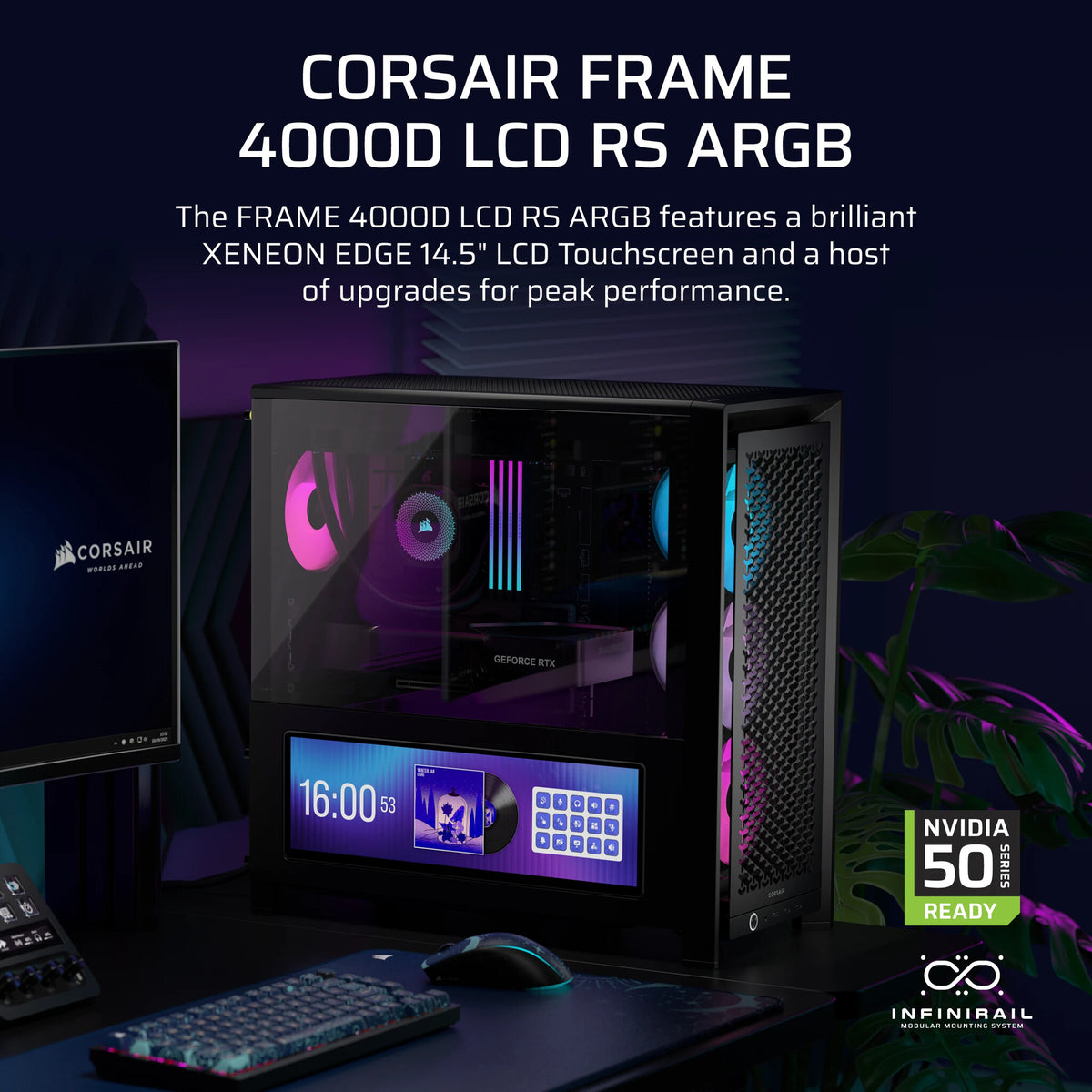

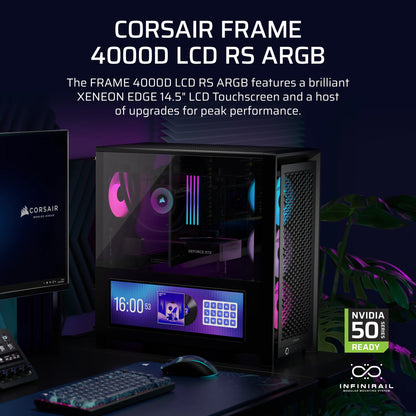

This leveled-up version of the FRAME 4000D includes a host of upgrades for peak performance with a pre-installed XENEON EDGE 14.5" LCD Touchscreen, more cooling power, updated front panel I/O, and increased rigidity for the ultimate mid-tower chassis.
EVEN COOLER

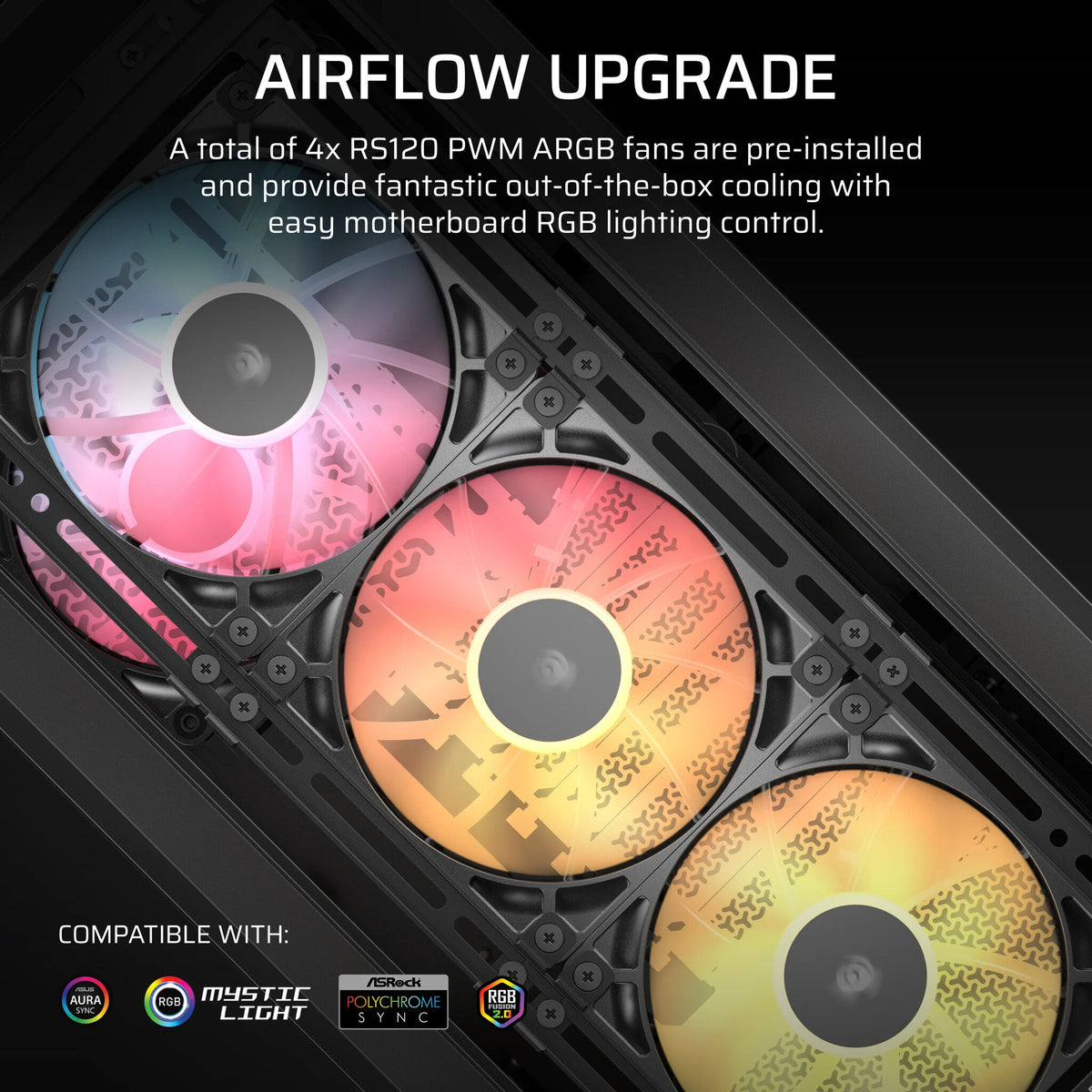

FOUR POWERFUL RS120 ARGB FANS INCLUDED
The FRAME 4000D LCD provides full system cooling right out of the box with three RS120 ARGB intake fans and one RS120 ARGB exhaust fan for powerful cooling with very low-noise and customizable lighting. A new 120mm/140mm fan mount has been added to the bottom of the chassis as well, giving builders even more options for fan placement.
FAN FOCUSED

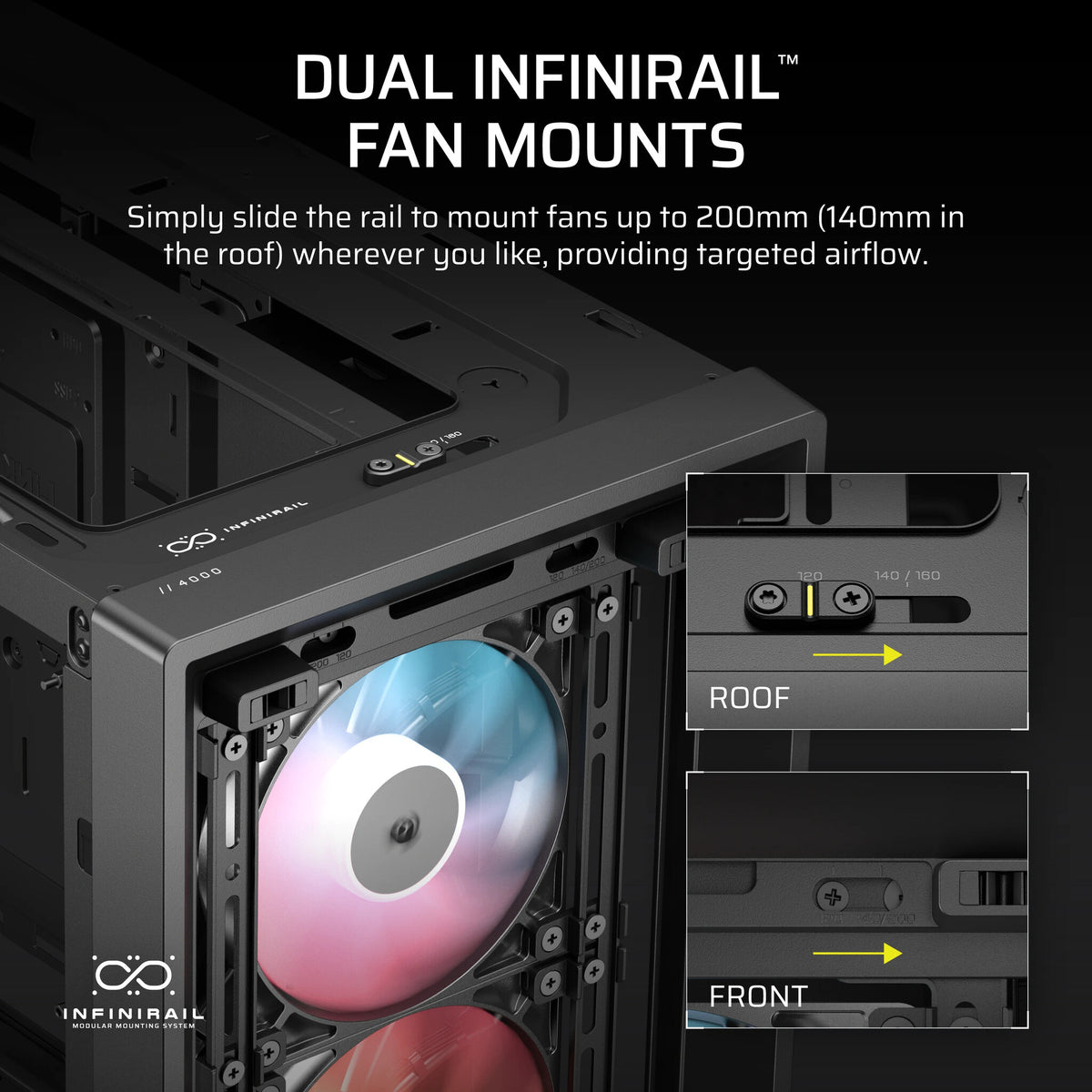

CORSAIR INFINIRAIL™ FAN MOUNTING SYSTEM
The steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail between 120mm and 140mm fan sizes and adjust the fan locations to ensure targeted airflow without limitations of fixed mounting points.
MODERN FRONT PANEL I/O
Puts your connections within easy reach, including a USB 3.2 Gen 2x2 Type-C port with 20Gb/s of bandwidth, 2x USB 3.2 Gen 1 Type-C ports with 5Gb/s of bandwidth, and a combination audio/microphone jack.
BUILD AND CHILL
DUAL 360mm RADIATOR SUPPORT
Boost your cooling with three dedicated mounting locations for 360mm radiators—front, roof, and side. You can mount up to 13x 120mm fans simultaneously, ensuring continuous cool air intake and efficient hot air exhaust.
HIDDEN FROM VIEW
LOOK, NO CABLES
The case is fully compatible with motherboards with backside connections and works with ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth motherboards. It features ample connector and cable cutouts along with plenty of tie-downs to keep your build neat and organized.
A BREEZE TO BUILD IN
With a modern design approach to a mainstream PC format, the FRAME 4000D LCD RS ARGB has the convenient features to take the hassle out of your build.
EXTRA AIRFLOW
A new 120mm bottom fan mount gives PC builders even more options for fan placement.
SAG-FREE GRAPHICS CARDS
Every CORSAIR FRAME 4000D LCD includes a GPU Anti-sag Stabilization Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.
CABLE SHROUD
Keep unused and overly long cables out of sight with the cable shroud for a clean and organized interior.
WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 13x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators. Install a GPU up to 405mm, even with fans installed in the front.
| Design |
|---|
| Form factor |
Midi Tower |
| Type |
PC |
| Material |
Plastic, Steel, Tempered glass |
| Product colour |
Black |
| Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
4 |
| Number of expansion slots |
7 |
| Side window |
Yes |
| Suitable for |
Gaming |
| Illumination |
Yes |
| Illumination colour |
Multi |
| Illumination location |
Case fans |
| Tempered glass panel(s) |
Yes |
| Anti-dust filter |
Yes |
| Cable management |
Yes |
| On/off button |
Yes |
| Maximum CPU cooler height |
17 cm |
| Maximum graphics card length |
43 cm |
| Maximum PSU length |
22 cm |
| Power supply |
|---|
| Power supply included |
No |
| Supported power supply form factors |
ATX |
| Display |
|---|
| Built-in display |
Yes |
| Display type |
LCD |
| Display diagonal |
36.8 cm (14.5") |
| Touchscreen |
Yes |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Combo headphone/mic port |
Yes |
| Cooling |
|---|
| Front fans installed |
3x 120 mm |
| Number of front fans supported (max) |
3 |
| Front fans diameters supported |
120,140,200 mm |
| Number of side fans supported (max) |
3 |
| Side fans diameters supported |
120,140 mm |
| Rear fans installed |
1x 120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
3 |
| Top fans diameters supported |
120,140 mm |
| Number of bottom fans supported (max) |
2 |
| Bottom fans diameters supported |
120 mm |
| Liquid cooling capability |
Yes |
| Front radiator sizes supported |
360,280,240 mm |
| Side radiator sizes supported |
360,280,240 mm |
| Rear radiator sizes supported |
140,120 mm |
| Top radiator sizes supported |
360,280,240 mm |
| Pulse-width modulation (PWM) support |
Yes |
| Storage |
|---|
| Supported HDD sizes |
3.5" |
| SSD form factor |
2.5" |
| Packaging content |
|---|
| Manual |
Yes |
| Weight & dimensions |
|---|
| Width |
239 mm |
| Depth |
490 mm |
| Height |
486 mm |
| Weight |
12.4 kg |
