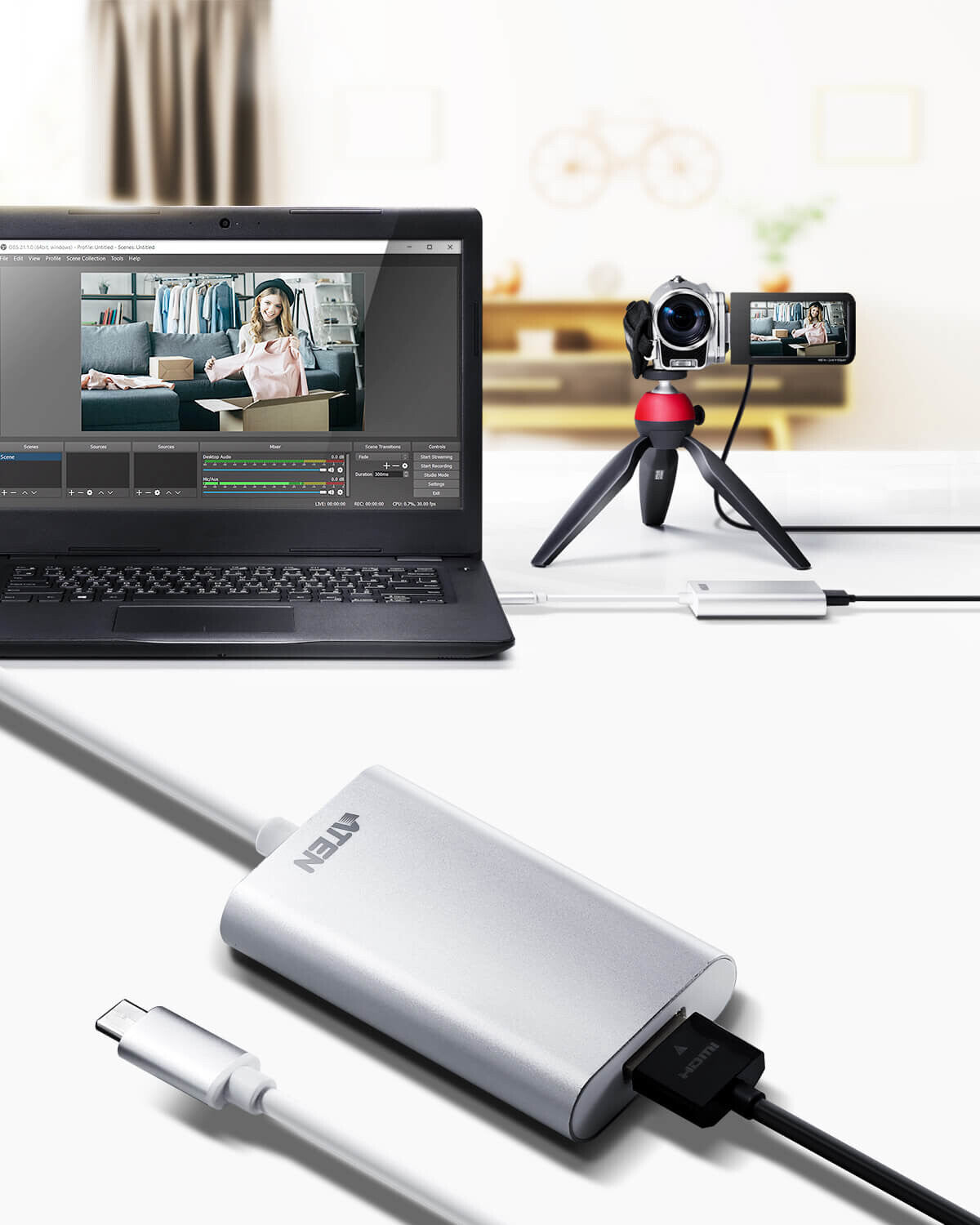

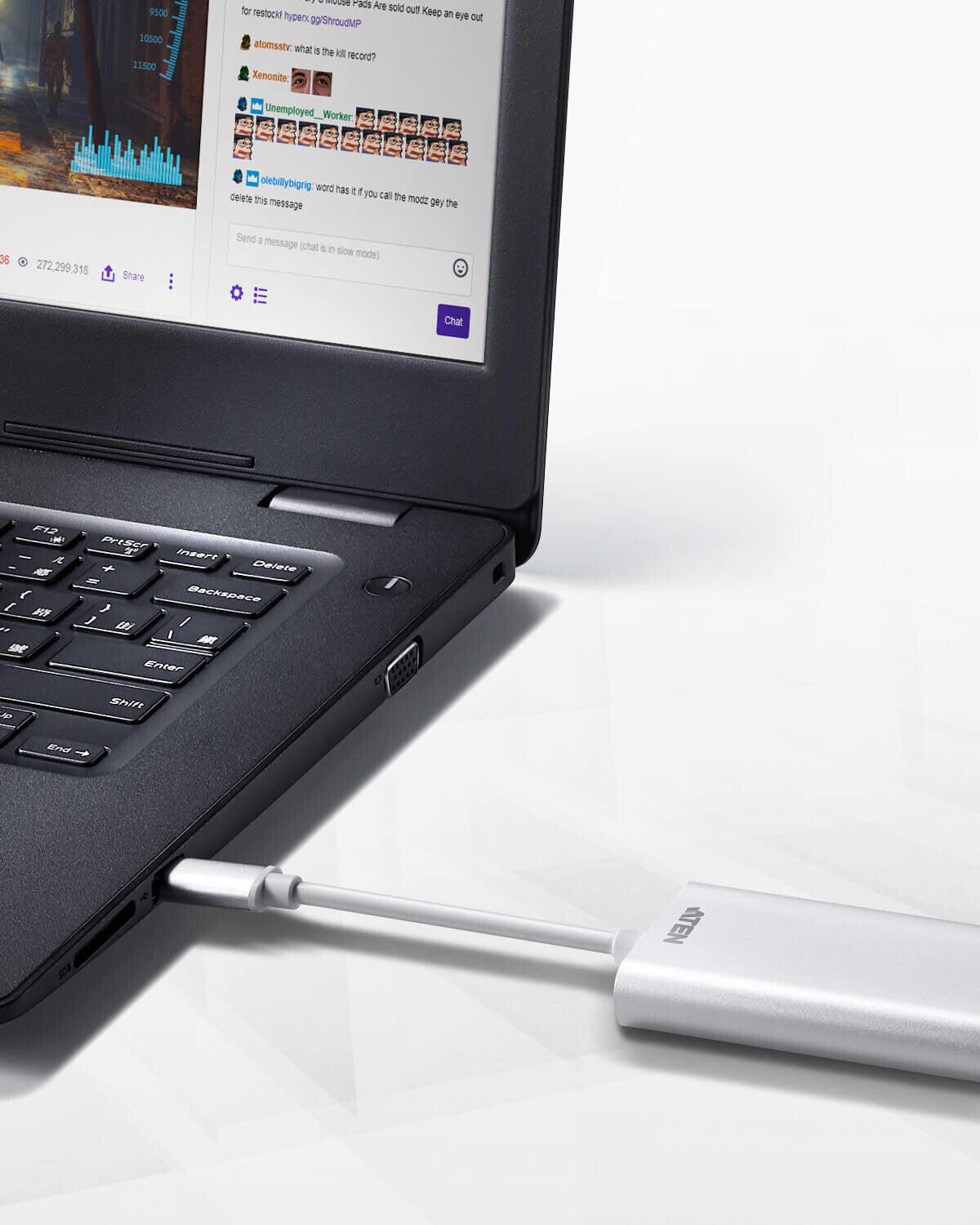

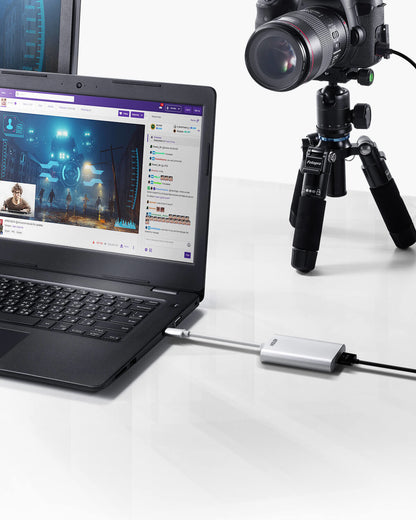

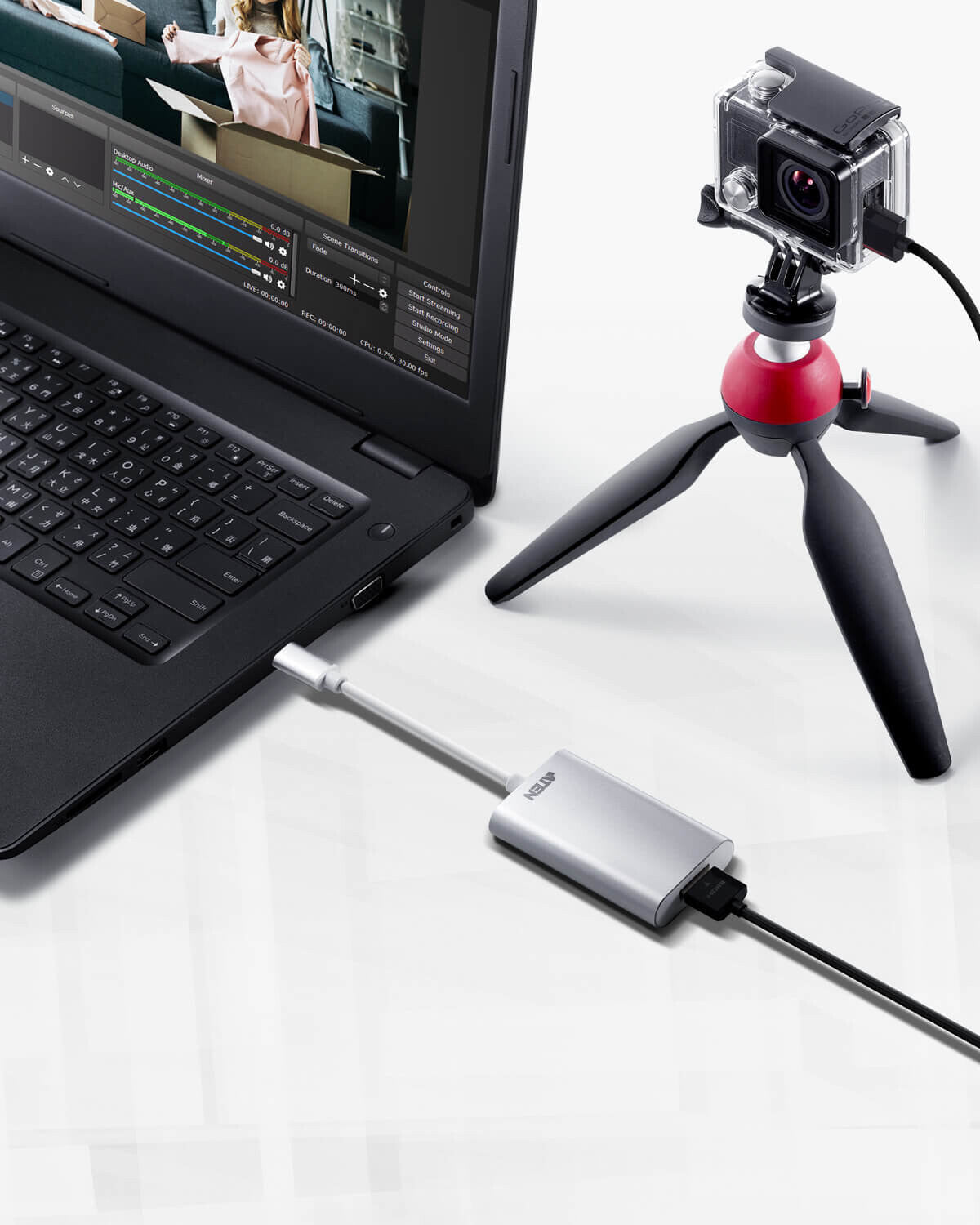

CAMLIVE HDMI to USB-C UVC Video Capture
1x UC3020 CAMLIVE HDMI to USB-C UVC Video Capture
1x USB-C to USB-A Adapter*
1x User Instructions
* When using the adapter, if you are only detecting MJPG video, please disconnect the USB-C head from the adapter, flip the USB-C head around and reconnect it to the adapter.
| Performance |
|---|
| Product colour |
Silver, White |
| Internal |
No |
| Host interface |
HDMI |
| Interface |
USB 3.1 Gen1 Type-C |
| Housing material |
Aluminium |
| Plug and Play |
Yes |
| Video |
|---|
| Maximum frame rate |
60 fps |
| Supported video modes |
480p, 720p, 1080p |
| File formats |
|---|
| Audio formats supported |
PCM |
| Ports & interfaces |
|---|
| HDMI ports quantity |
1 |
| HDMI in |
1 |
| HDMI version |
1.4b |
| Power |
|---|
| Power supply type |
USB |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8 |
| Mac compatibility |
Yes |
| Mac operating systems supported |
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| System requirements |
|---|
| Minimum RAM |
4000 MB |
| Minimum processor |
Intel i3 Dual Core 2.8Ghz |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Other features |
|---|
| Master (outer) case height |
162 mm |
| Master (outer) case width |
326 mm |
| Weight & dimensions |
|---|
| Width |
73 mm |
| Depth |
42 mm |
| Height |
14 mm |
| Weight |
50 g |
| Packaging content |
|---|
| User guide |
Yes |
| Packaging data |
|---|
| Package weight |
150 g |
| Package depth |
140 mm |
| Package width |
62 mm |
| Package height |
193 mm |
| Logistics data |
|---|
| Master (outer) case net weight |
500 g |
| Master (outer) case length |
345 mm |
| Master (outer) case gross weight |
2.07 kg |
| Products per master (outer) case |
10 pc(s) |
| Harmonized System (HS) code |
85176990 |
