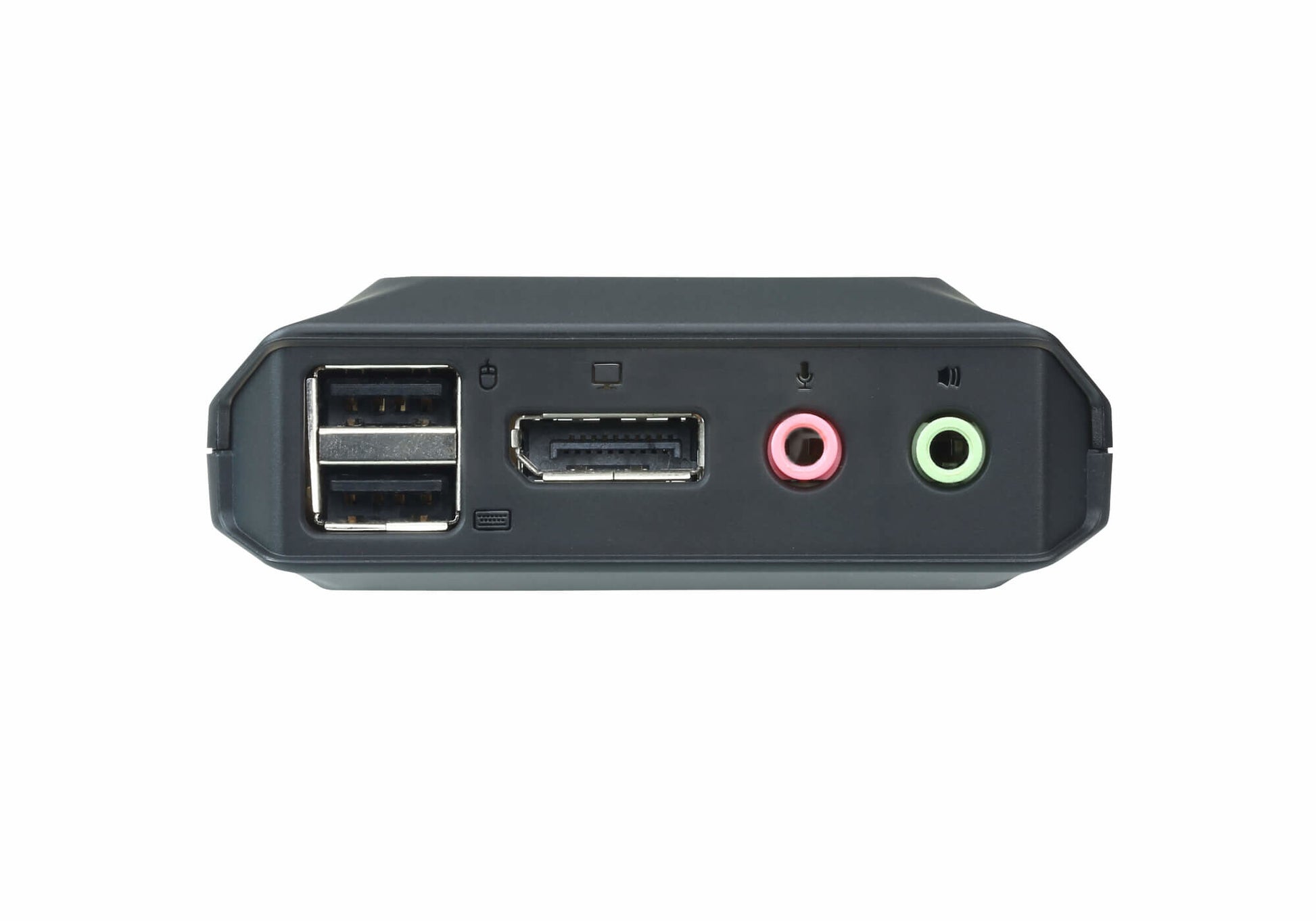

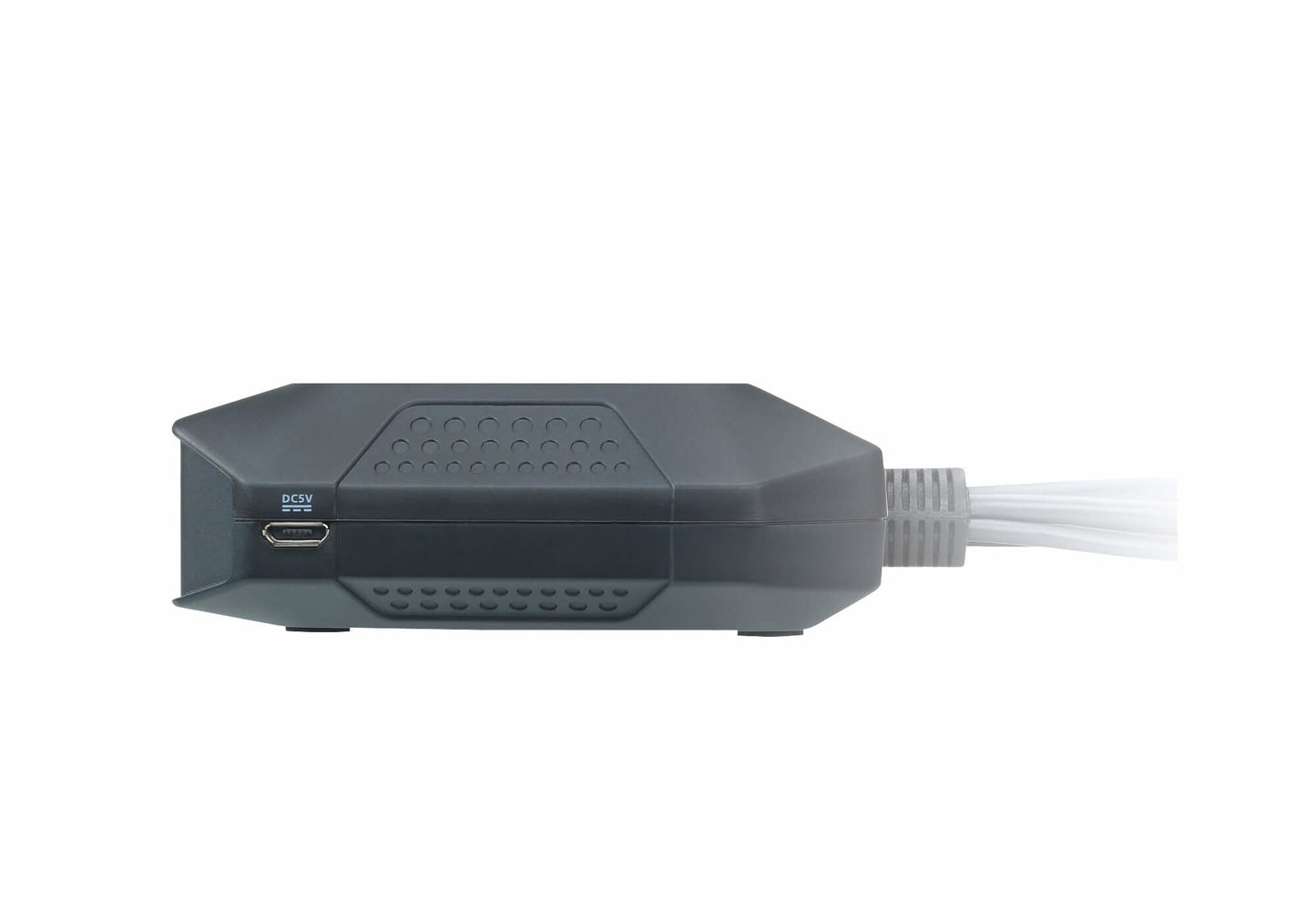

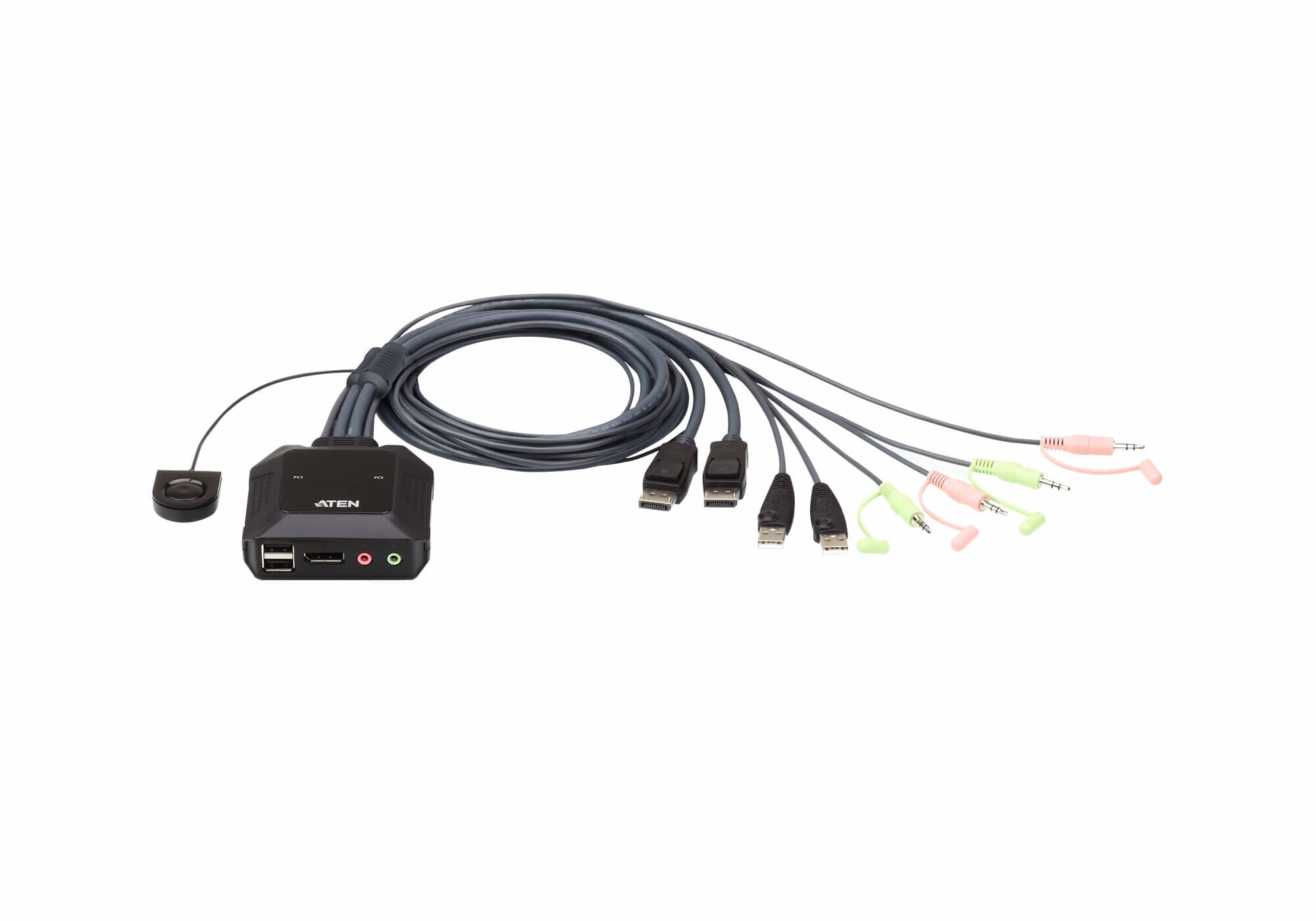

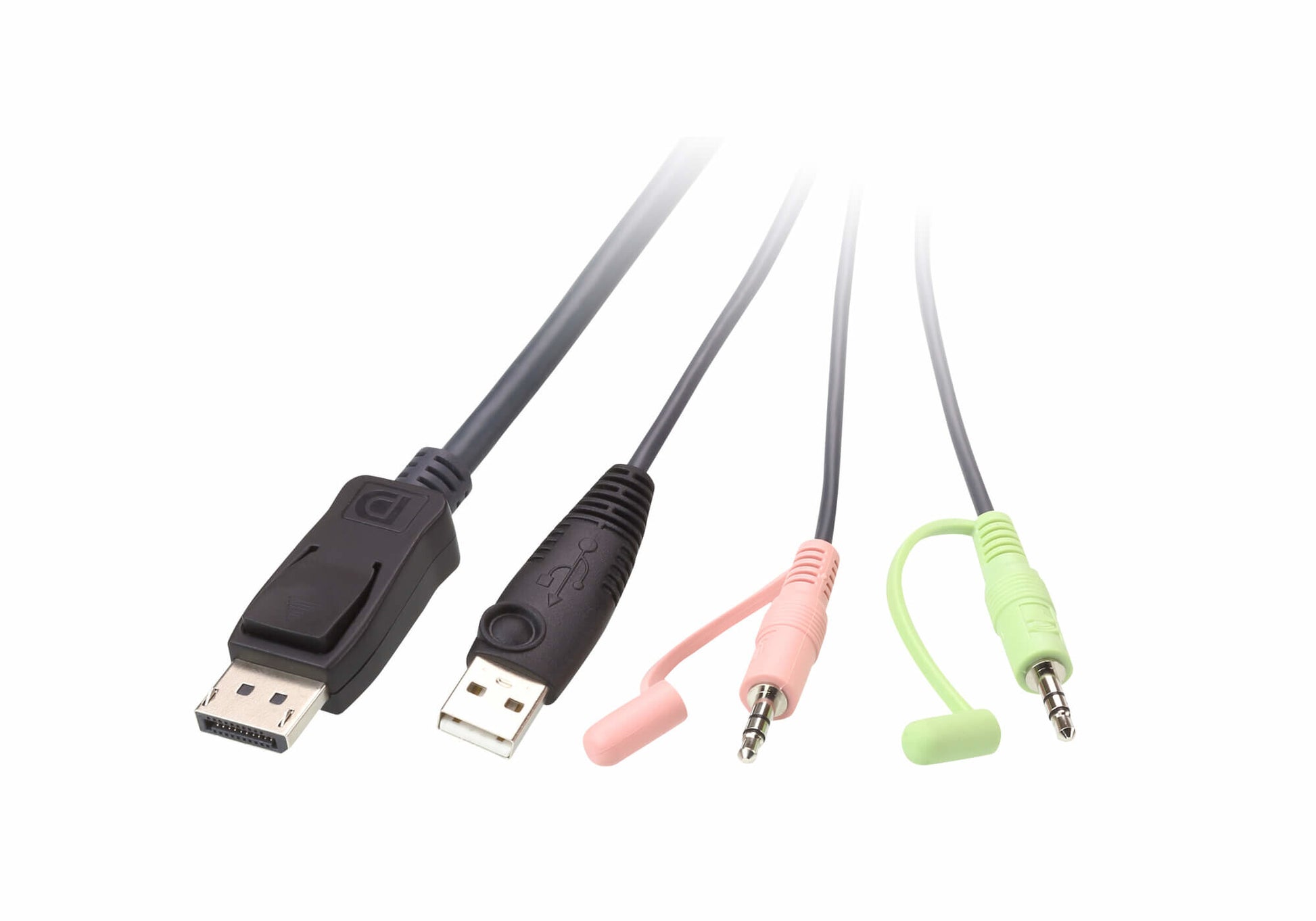

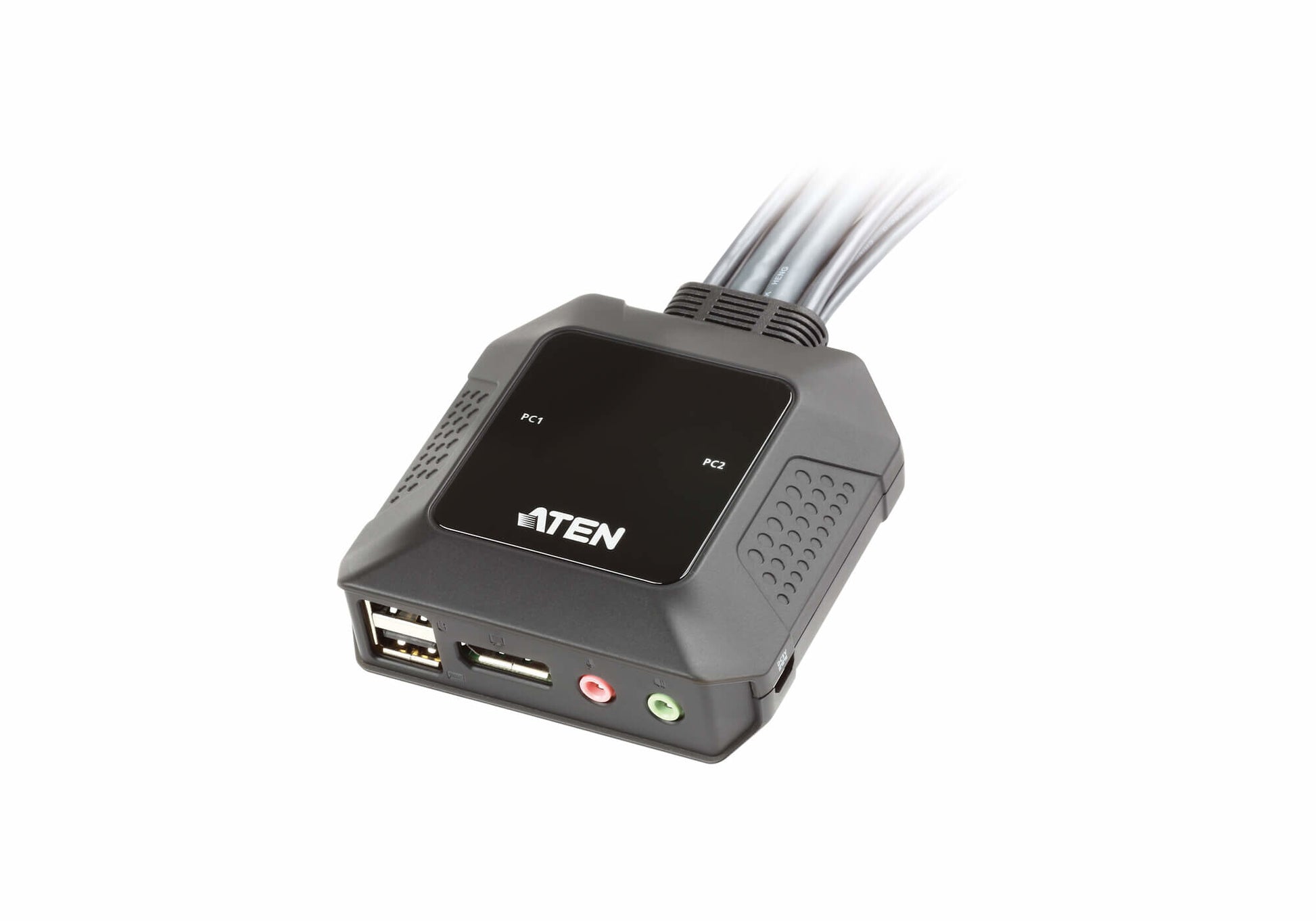

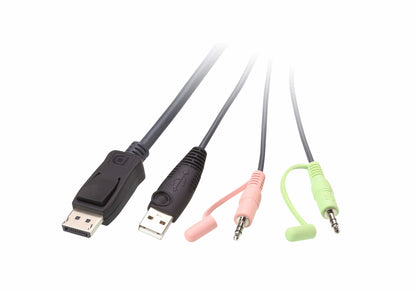

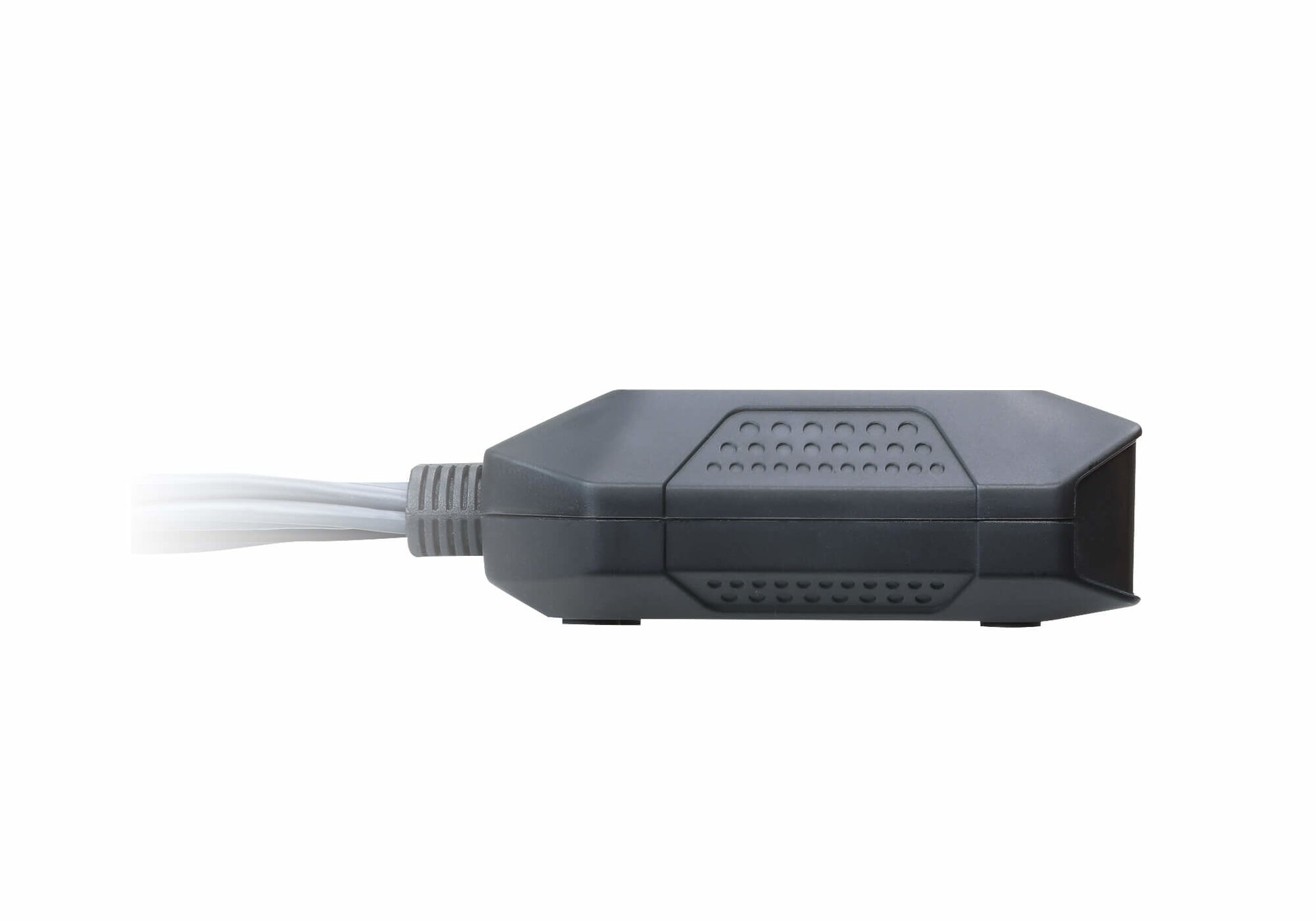

2-Port USB DisPlayPort Cable KVM Switch
The CS22DP 2-Port USB DisplayPort Cable KVM Switch is a control unit that allows access to two computers from a single USB and DisplayPort console (keyboard, video and mouse) with audio. With the CS22DP, you can quickly and effortlessly switch between two DisplayPort computers using a convenient remote port selector pushbutton.
1x CS22DP 2-Port USB DisplayPort Cable KVM Switch
1x User Instructions
| Ports & interfaces |
|---|
| Number of microphone inputs |
1 |
| Headphone outputs |
1 |
| Audio connections |
Yes |
| USB connector type |
Micro-USB B, USB Type-A |
| USB 2.0 ports quantity |
2 |
| Console ports |
3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity |
2 |
| DisplayPort version |
1.1 |
| DisplayPorts quantity |
1 |
| Video port type |
DisplayPort |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
2 |
| Performance |
|---|
| Hot-Plug support |
Yes |
| HDCP |
Yes |
| Video bandwidth |
30 Hz |
| Maximum resolution |
4096 x 2160 pixels |
| HD type |
4K Ultra HD |
| Design |
|---|
| LED indicators |
Yes |
| Remote switch cable length |
1.8 m |
| Cable length |
1.2 m |
| Wired remote switch |
Yes |
| Housing material |
Plastic |
| Product colour |
Black |
| Rack mounting |
No |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power consumption (typical) |
1.38 W |
| USB powered |
Yes |
| Input voltage |
5 V |
| Power source |
DC |
| System requirements |
|---|
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Sustainability |
|---|
| Sustainability certificates |
RoHS |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
360 g |
| Height |
30.4 mm |
| Depth |
83.4 mm |
| Width |
84.2 mm |
| Packaging data |
|---|
| Package weight |
435 g |
| Package height |
225 mm |
| Package depth |
155 mm |
| Package width |
55 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Logistics data |
|---|
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case gross weight |
9.33 kg |
| Master (outer) case height |
330 mm |
| Master (outer) case length |
389 mm |
| Master (outer) case width |
328 mm |
| Harmonized System (HS) code |
85176200 |
| Master (outer) case net weight |
7.2 kg |
| Technical details |
|---|
| Compliance certificates |
RoHS |
