ASUS SKU 90YE00S1-B0ZA00

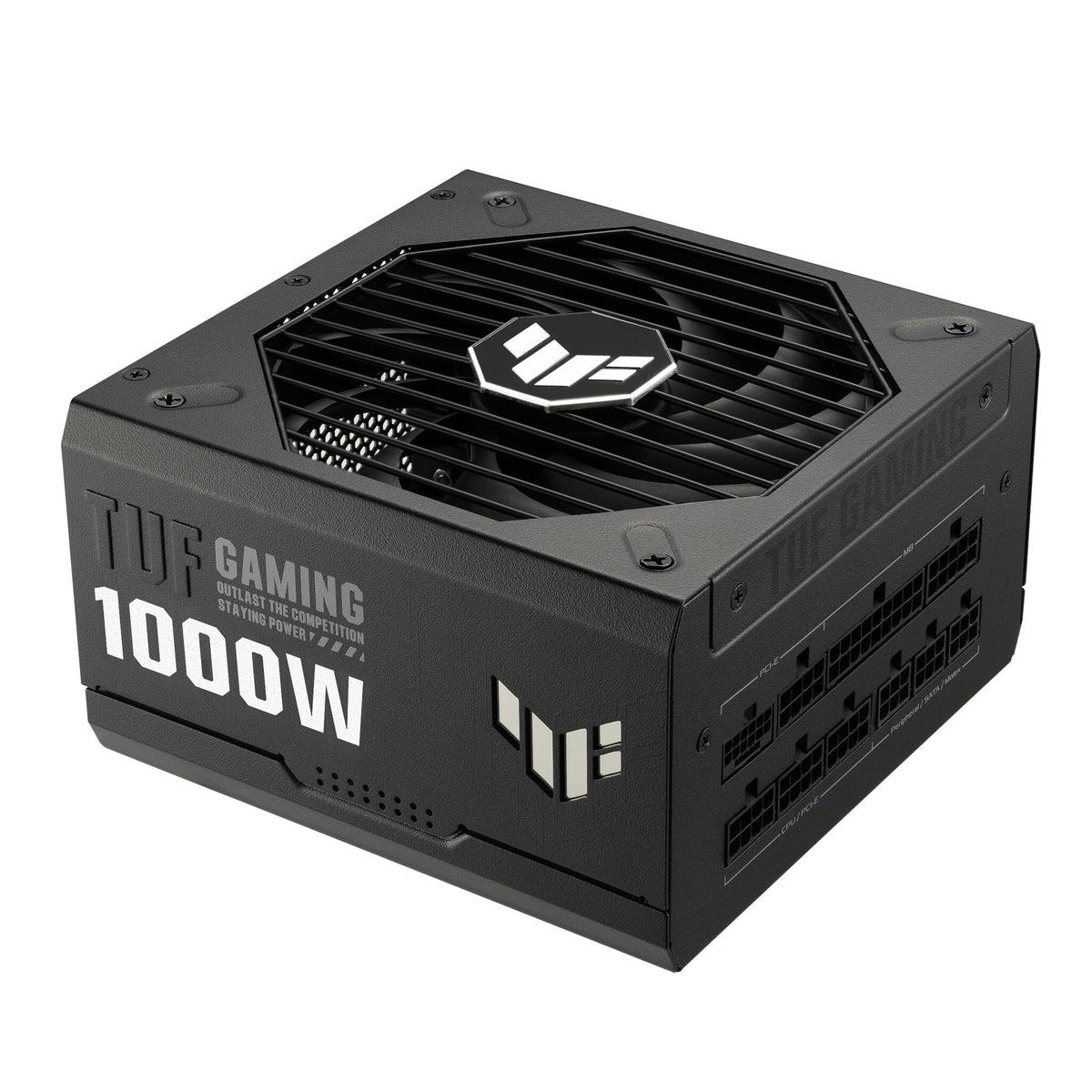

ASUS TUF Gaming 1000W Gold power supply unit 20+4 pin ATX ATX Black

R 3,332.75Incl. VAT

In stock

Delivery Nationwide delivery. Cost and time shown at checkout.
Returns 7-day returns on unopened items. Refund policy

Overview

1000W, ATX12V, 80Plus Gold, 100 - 240V, 2.48kg

The TUF Gaming 1000W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.

Built For The Long Haul
The ASUS TUF Gaming 1000W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.​

Durability

TUF Components
Top marks

With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 1000W Gold empowers you to build in confidence.​

Dual Ball Fan Bearings
2x longer lifespan

Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

Protective PCB Coating
All wrapped up

A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.

ENGINEERING

80 Plus Gold Certification
Heart of gold

The TUF Gaming 1000W Gold features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.​

ATX 3.0 Compatible
Step into the future

The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 1000W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.​

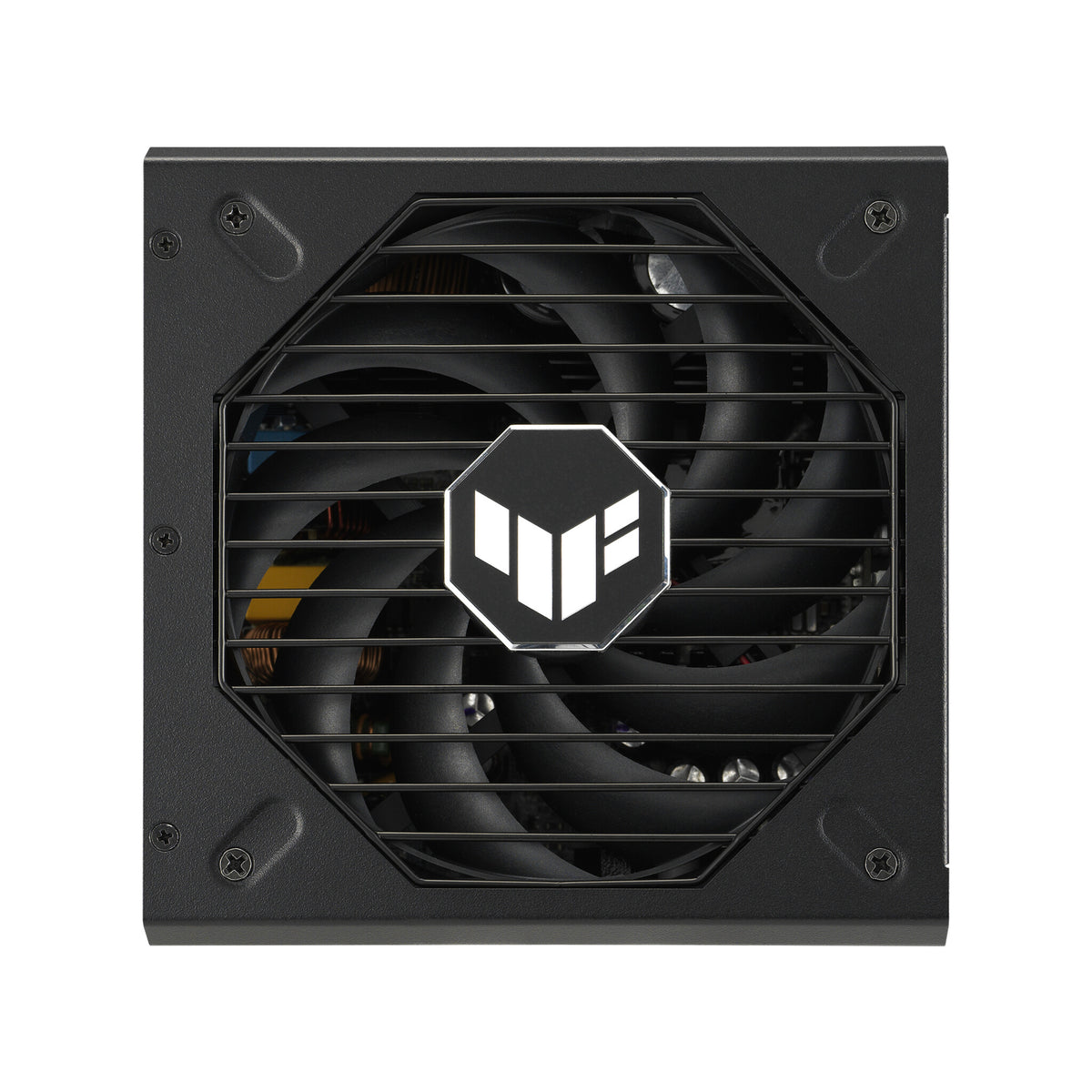

Axial-tech Fan Design
Better, faster, stronger

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.

EXPERIENCE

10-year Warranty
A decade of power​

We're so confident about the reliability of the TUF Gaming 1000W Gold that we back it with a 10-year worldwide warranty.​

Fully Modular Etched Cables
Supple ply

The included fully-modular cable set is etched to provide a similar aesthetic to sleeved cables but a touch more flexibility for tight spaces.

Power
Total power 1000 W
AC input voltage 100 - 240 V
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 130 W
Combined power (+12V) 1000 W
Combined power (+5V) 130 W
Combined power (-12V) 9.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 25 A
Max output current (+12V) 83.3 A
Max output current (+5V) 25 A
Max output current (-12V) 0.8 A
Max output current (+5Vsb) 3 A
Efficiency 92%
Power protection features Over power, Over voltage, Overcharge, Overheating, Short circuit, Under power, Under voltage

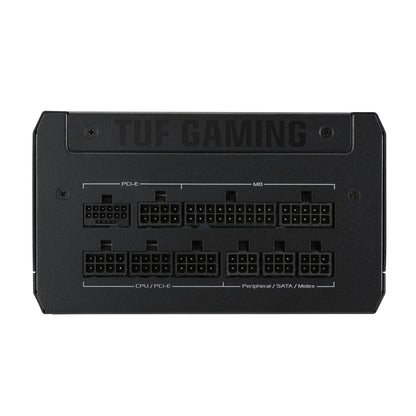

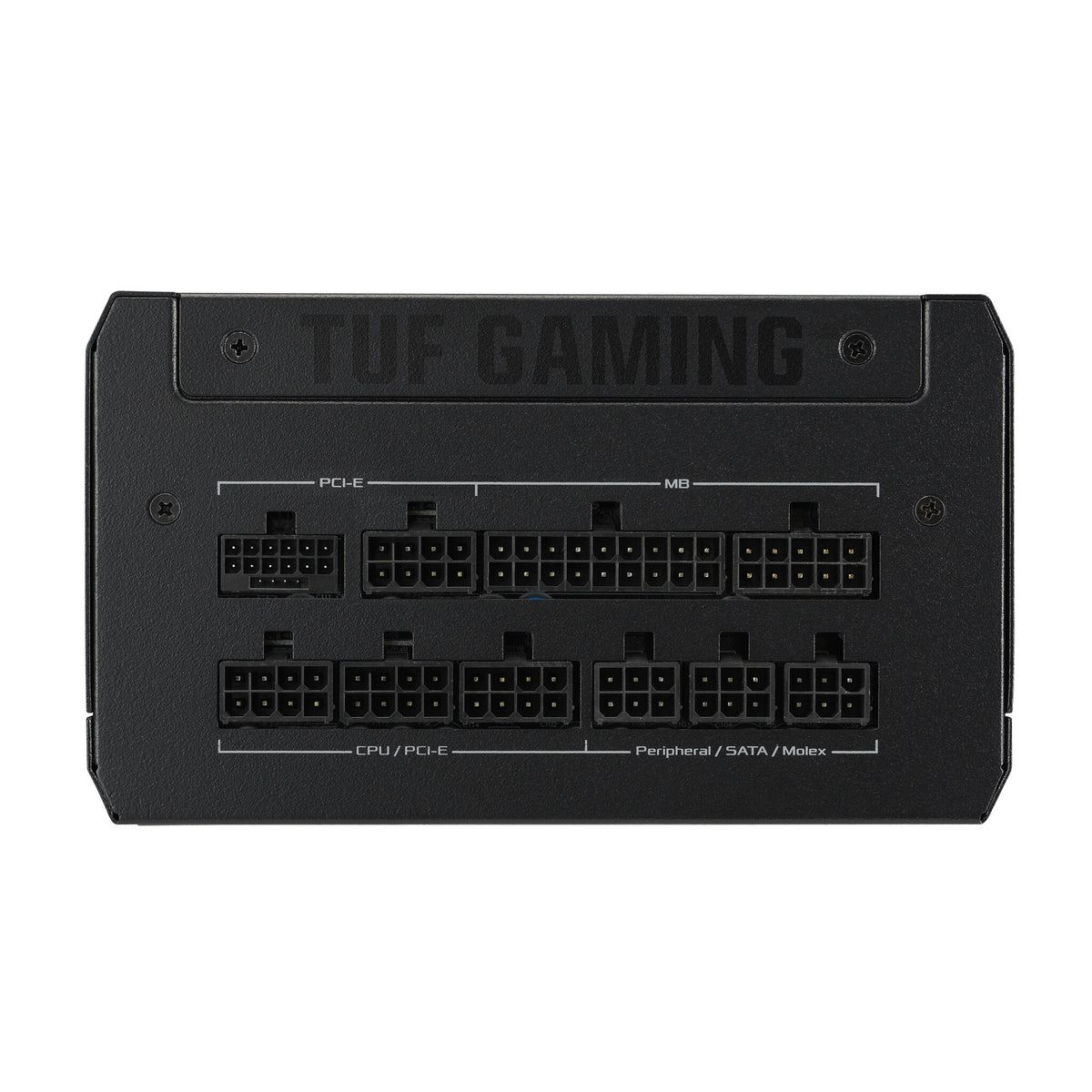

Ports & interfaces
Motherboard power connector 20+4 pin ATX
Motherboard power cable length 61 cm
Number of SATA power connectors 5
SATA power cable length 120,400 mm
Peripheral (Molex) power connectors (4-pin) 4
Peripheral (Molex) power cable length 150,400 mm
PCI Express power connectors (16-pin) 1
PCI Express power connectors (8-pin) 4
PCI Express power cable length 67.5 cm
CPU power connector (4+4 pin) Yes
CPU power cable length 65 cm
ATX power connector (20+4 pin) Yes
Cabling type Fully-Modular
Performance
Purpose PC
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Gold
Design
Product colour Black
Cooling type Active
Fan diameter 13.5 cm
Number of fans 1 fan(s)
Illumination No
On/off switch Yes
Weight & dimensions
Width 150 mm
Depth 150 mm
Height 86 mm
Weight 2.48 kg

Specifications

BrandASUS
TypePower Supply Units
SKU90YE00S1-B0ZA00
Barcode0195553786485,195553786485,4711081786535
