WiFi 7 (802.11be), 2.4/5GHz, 2.0 GHz quad-core processor, 256MB Flash, 1GB RAM, USB 3.2 Gen 1, 100 - 240V, 50 - 60Hz, 502 g

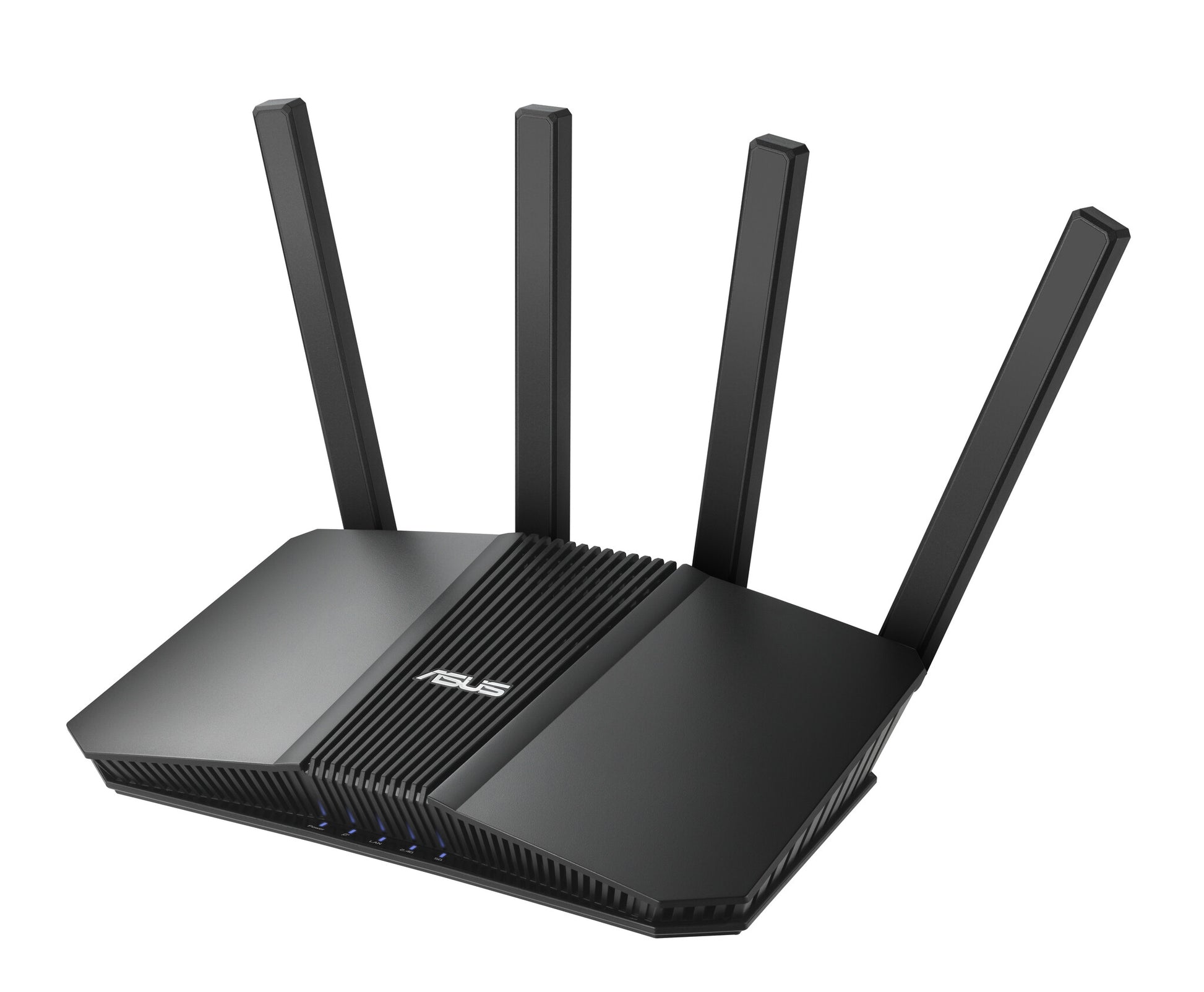

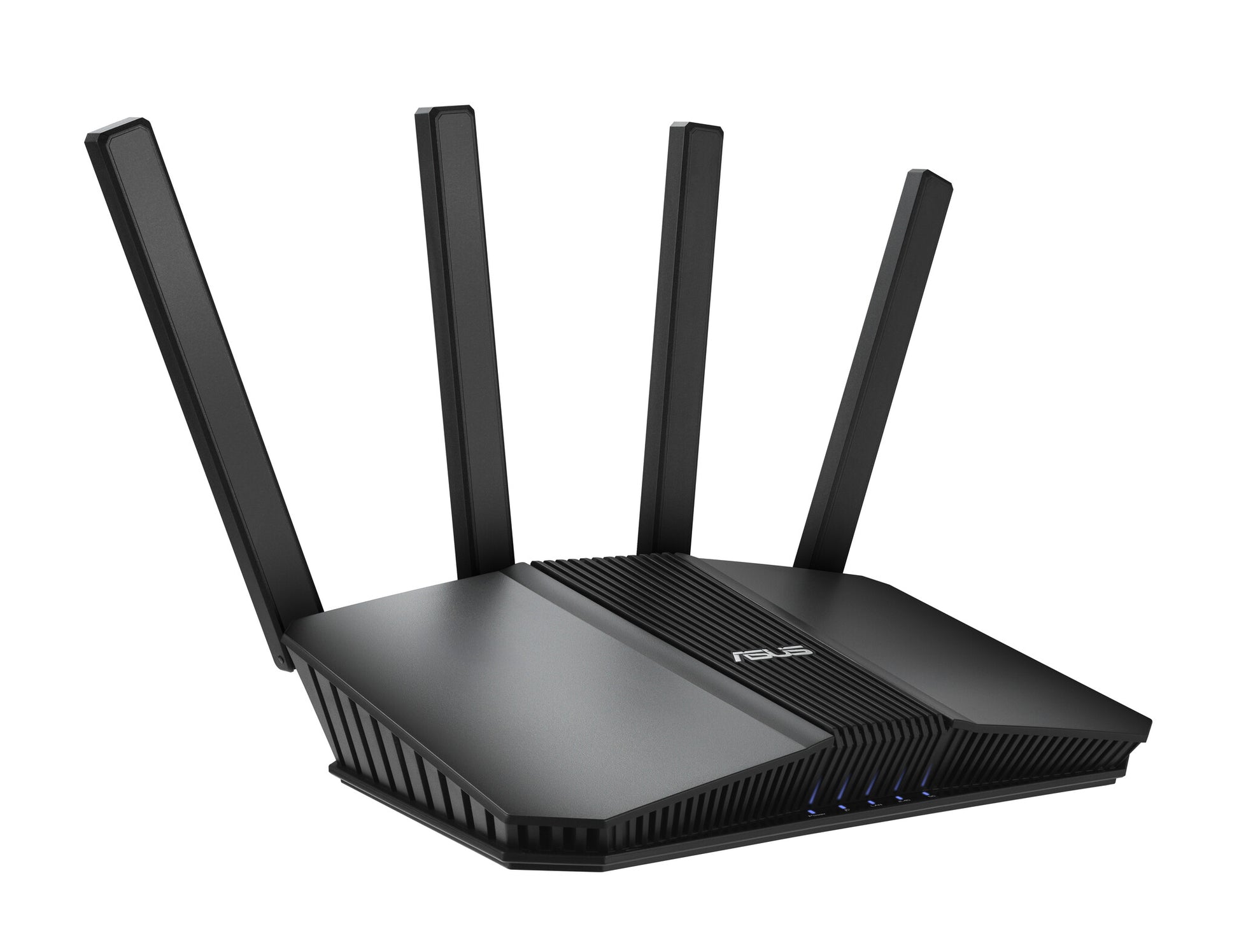

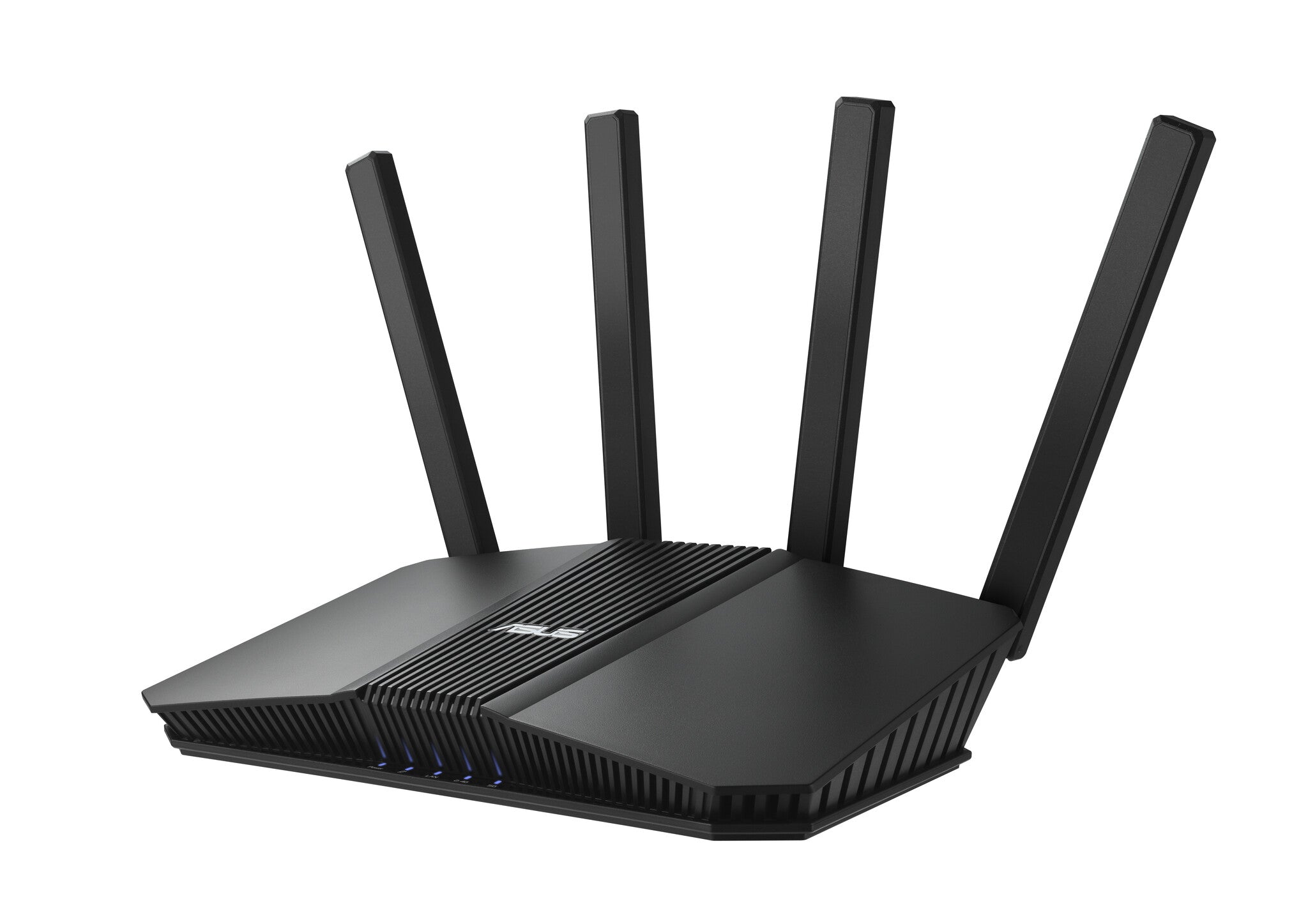

ASUS WiFi 7 Dual-Band Extendable Router, 4K-QAM, MLO, Five 2.5GbE ports, Commercial-Grade Network Security, Parental Control, IoT network, Kid’s network and VPN network
Worry-Free Smart Home WiFi 7
Elevate your smart home with blazing-fast dual-band Wi-Fi 7 speeds of up to 6500 Mbps and boosted coverage with AI-boosted Smart AiMesh technology. With next-gen ASUS Network Security and a suite of advanced network technologies such as IoT Network, the RT-BE82U safeguard your network end-to-end, 24/7.
| WAN connection |
|---|
| WAN connection type |
RJ-45 |
| 3G/4G USB modem compatibility |
Yes |
| SIM card slot |
No |
| DSL WAN |
No |
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| Modulation |
4096-QAM, OFDMA |
| WLAN data transfer rate (second band) |
5764 Mbit/s |
| WLAN data transfer rate (first band) |
688 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) |
6500 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Network |
|---|
| VPN support |
Instant GuardVPN Client L2TPVPN Client Open VPNVPN Client PPTPVPN Client WireGuardVPN Server IPSecVPN Server Open VPNVPN Server PPTPVPN Server WireGuard |
| VPN server |
Y |
| Number of guest networks (2.4 GHz) |
3 |
| Number of guest networks (5 GHz) |
3 |
| Dynamic DNS (DDNS) |
Yes |
| Port forwarding |
Yes |
| Port triggering |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ethernet LAN interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
4 |
| Management features |
|---|
| MIMO |
Yes |
| MU-MIMO technology |
Yes |
| WPS push button |
Yes |
| Reset button |
Yes |
| Wake-on-LAN ready |
Yes |
| Quality of Service (QoS) support |
Yes |
| Bandwidth control |
Yes |
| Security |
|---|
| NAT functionality |
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay |
| Network address translation (NAT) |
Yes |
| DMZ support |
Yes |
| System event log |
Yes |
| MAC address table |
64 entries |
| MAC address filtering |
Yes |
| Filtering |
Yes |
| Parental control |
Yes |
| Schedule access |
Yes |
| Guest access |
Yes |
| Firewall |
Yes |
| Security algorithms |
SSH, SSID, WPA, WPA2, WPA2-Enterprise, WPA3-Personal, WPS |
| Protocols |
|---|
| Supported network protocols |
PPPoE, PPTP, L2TP, Automatic IP, Static IP |
| DHCP server |
Yes |
| Design |
|---|
| LED indicators |
LAN |
| Product colour |
Black |
| Product type |
Tabletop router |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Warranty card |
Yes |
| Antenna included |
Yes |
| Cables included |
DC, LAN (RJ-45) |
| Antenna |
|---|
| Antennas quantity |
4 |
| Antenna design |
External |
| Features |
|---|
| Safety |
Y |
| Flash memory |
256 MB |
| Internal memory |
1024 MB |
| Processor cores |
4 |
| Processor frequency |
2000 MHz |
| Built-in processor |
Yes |
| Power |
|---|
| Output current |
3 A |
| Output voltage |
12 V |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power source type |
DC |
| System requirements |
|---|
| Mobile operating systems supported |
Android, iOS |
| Weight & dimensions |
|---|
| Width |
238 mm |
| Depth |
147 mm |
| Height |
97 mm |
| Weight |
502 g |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
1.13 kg |
| Package height |
111 mm |
| Package depth |
195 mm |
| Package width |
288 mm |
