ASUS SKU 90MC0CY0-M0EAY0

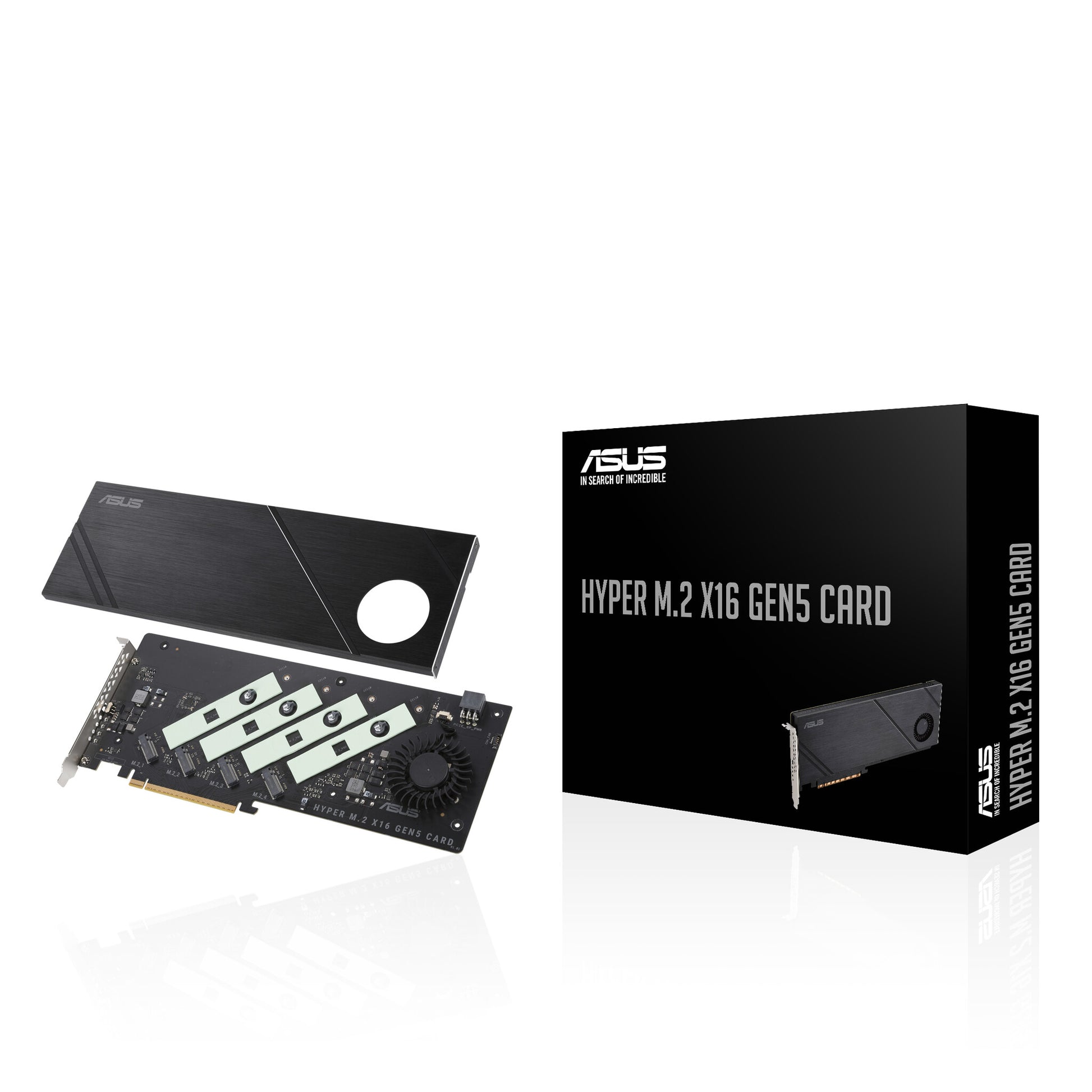

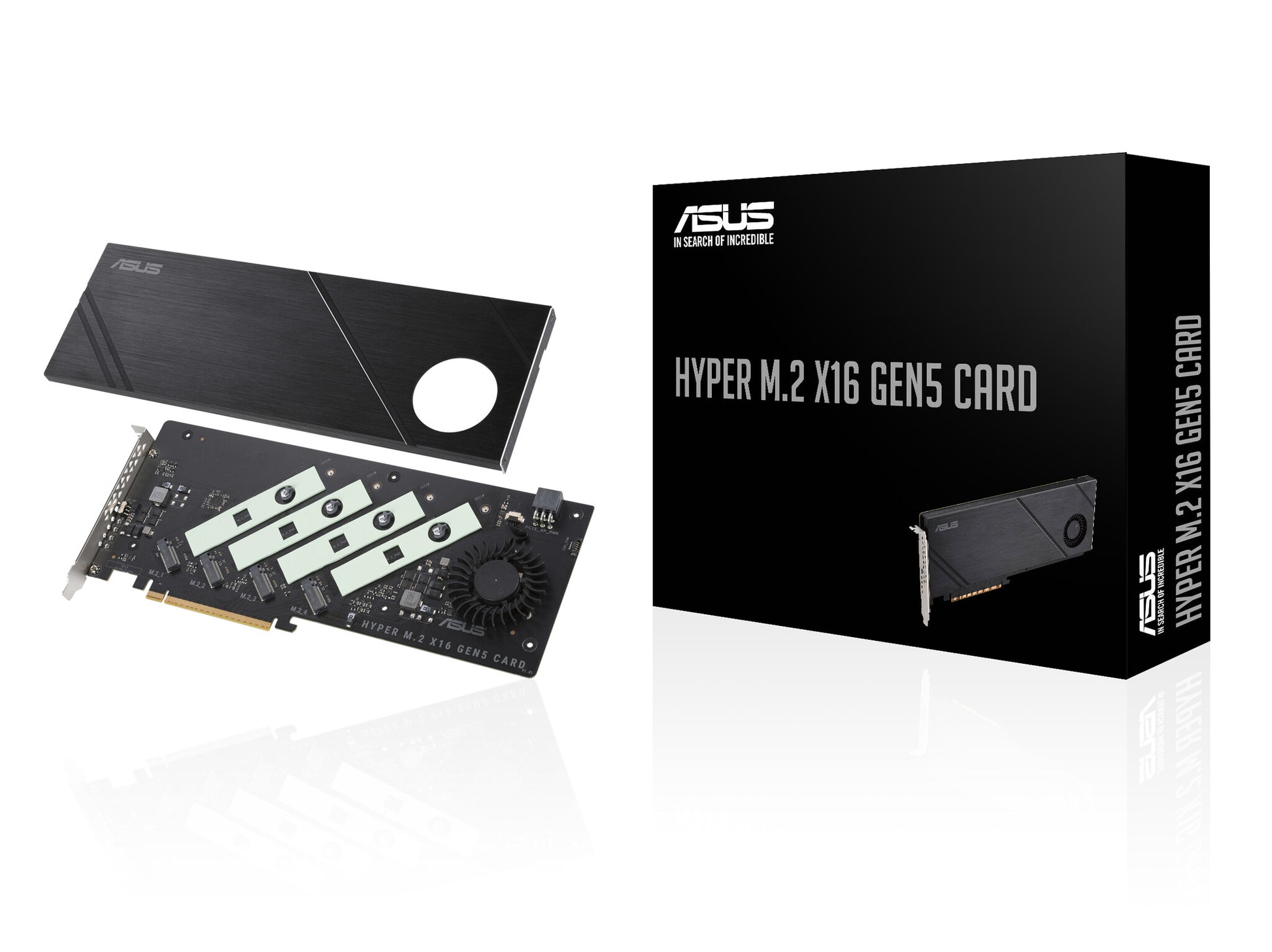

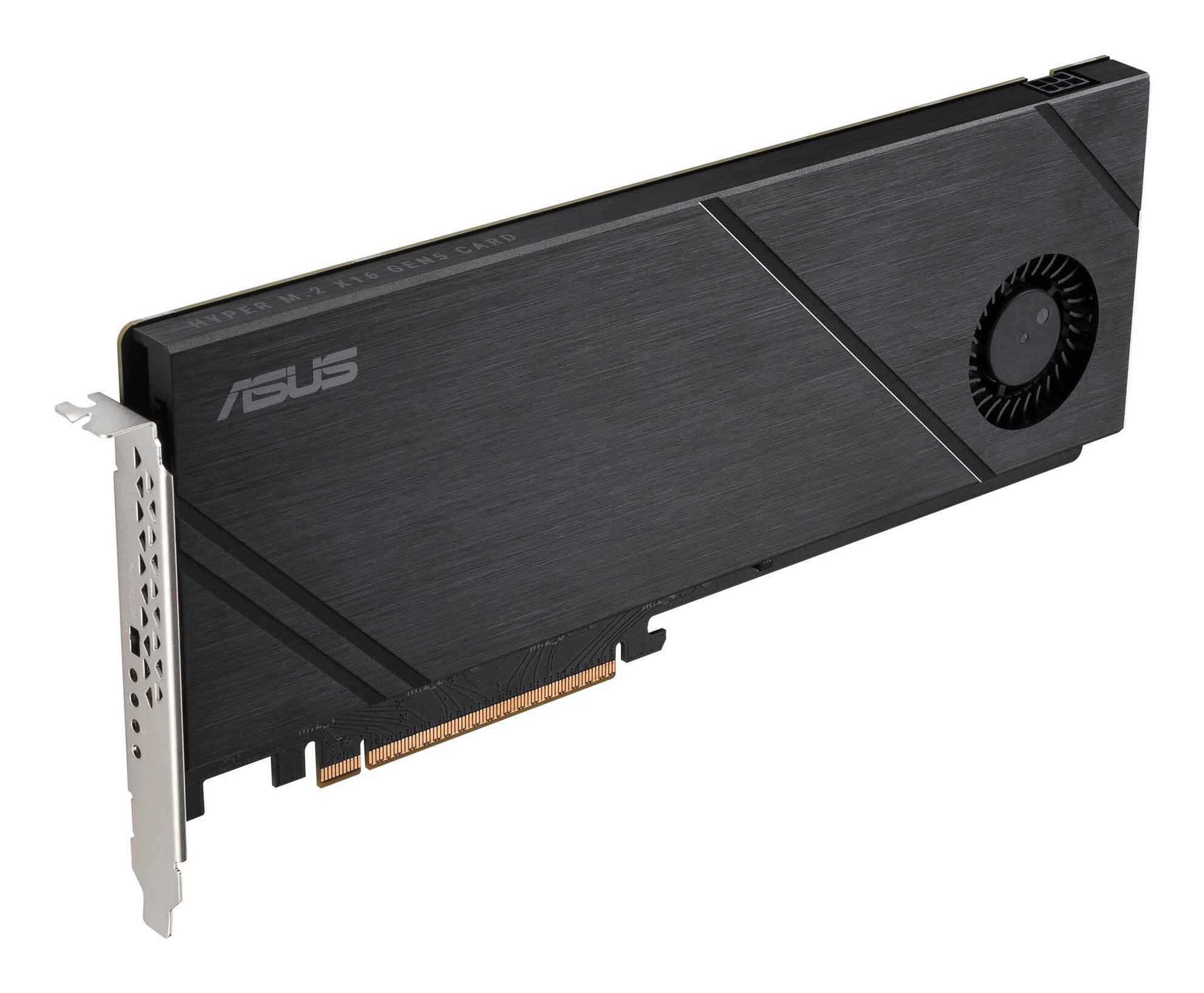

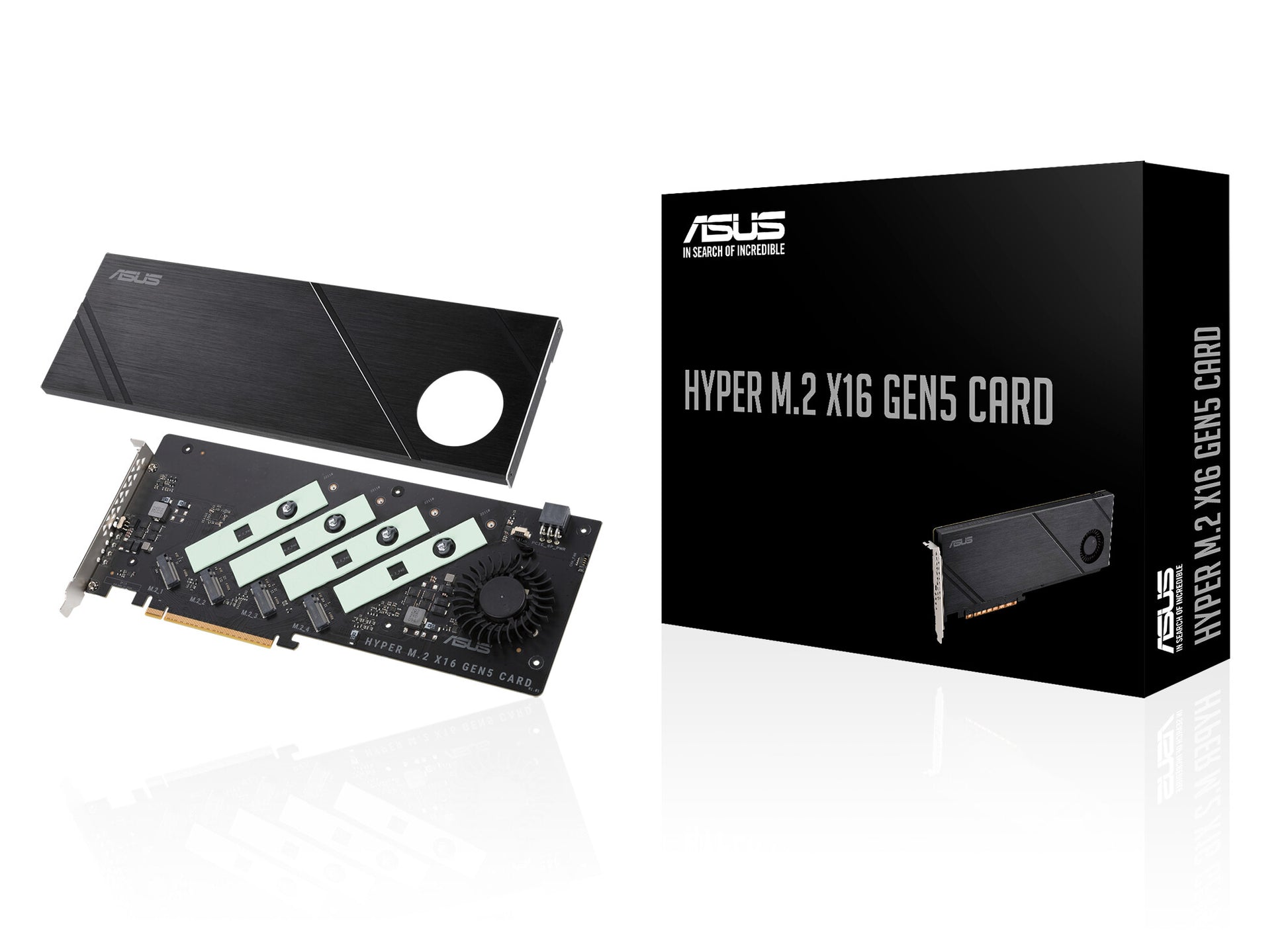

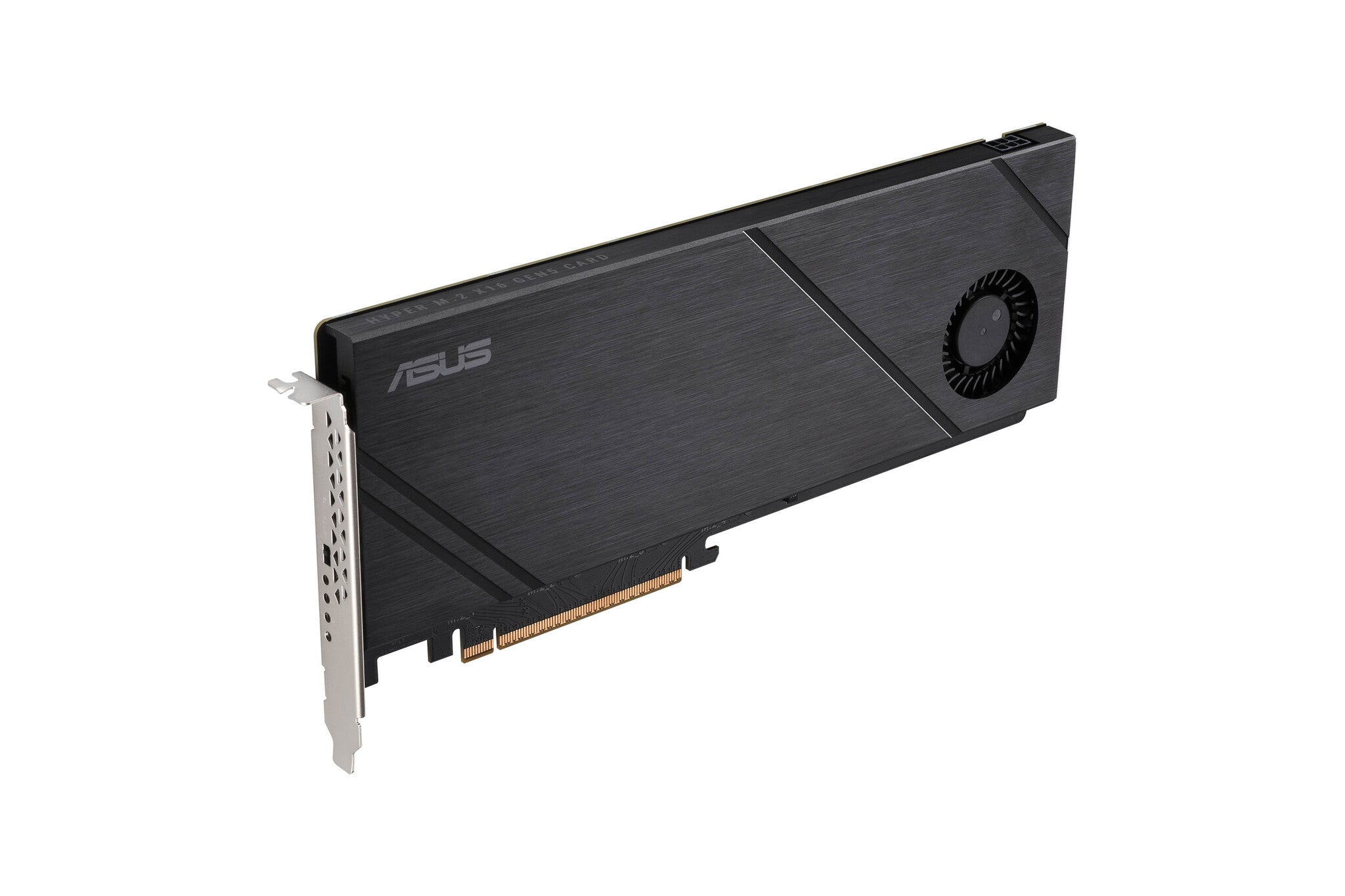

ASUS Hyper M.2 x16 Gen5 Card interface cards/adapter Internal

R 1,438.42Incl. VAT

Only 7 left

Delivery Nationwide delivery. Cost and time shown at checkout.
Returns 7-day returns on unopened items. Refund policy

Overview

PCIe 5.0 x16, 4 x M.2 slots, 1 x M.2 FAN Power Switch, 4 x M.2 access LEDs, 512Gbps

ASUS Hyper M.2 x16 Gen5 Card (PCIe 5.0/4.0) supports up to four NVMe M.2 (2242/2260/2280/22110) devices at up to 512 Gbps for RAID functions across diverse CPU platforms

Support RAID Function
The ASUS Hyper M.2 x16 Gen5 Card is able to support RAID functions across different CPU platforms. For ultimate flexibility , unused CPU PCIe lanes can be assigned to storage to create a bootable RAID array with up to four M.2 SSDs*.

One Card,
8X The Bandwidth

The ASUS Hyper M.2 x16 Gen5 Card uses PCIe 5.0, which offers twice the bandwidth per lane compared to PCIe 4.0. With four M.2 slots, it enables up to 512 Gbps of bandwidth per card — 8X the bandwidth of a single PCIe 4.0 drive.

Enhanced Cooling
The ASUS Hyper M.2 x16 Gen5 Card not only enhances hardware but also incorporates advanced software solutions for efficient thermal management, effectively dissipating heat to keep SSDs at optimal temperature for unwavering performance.

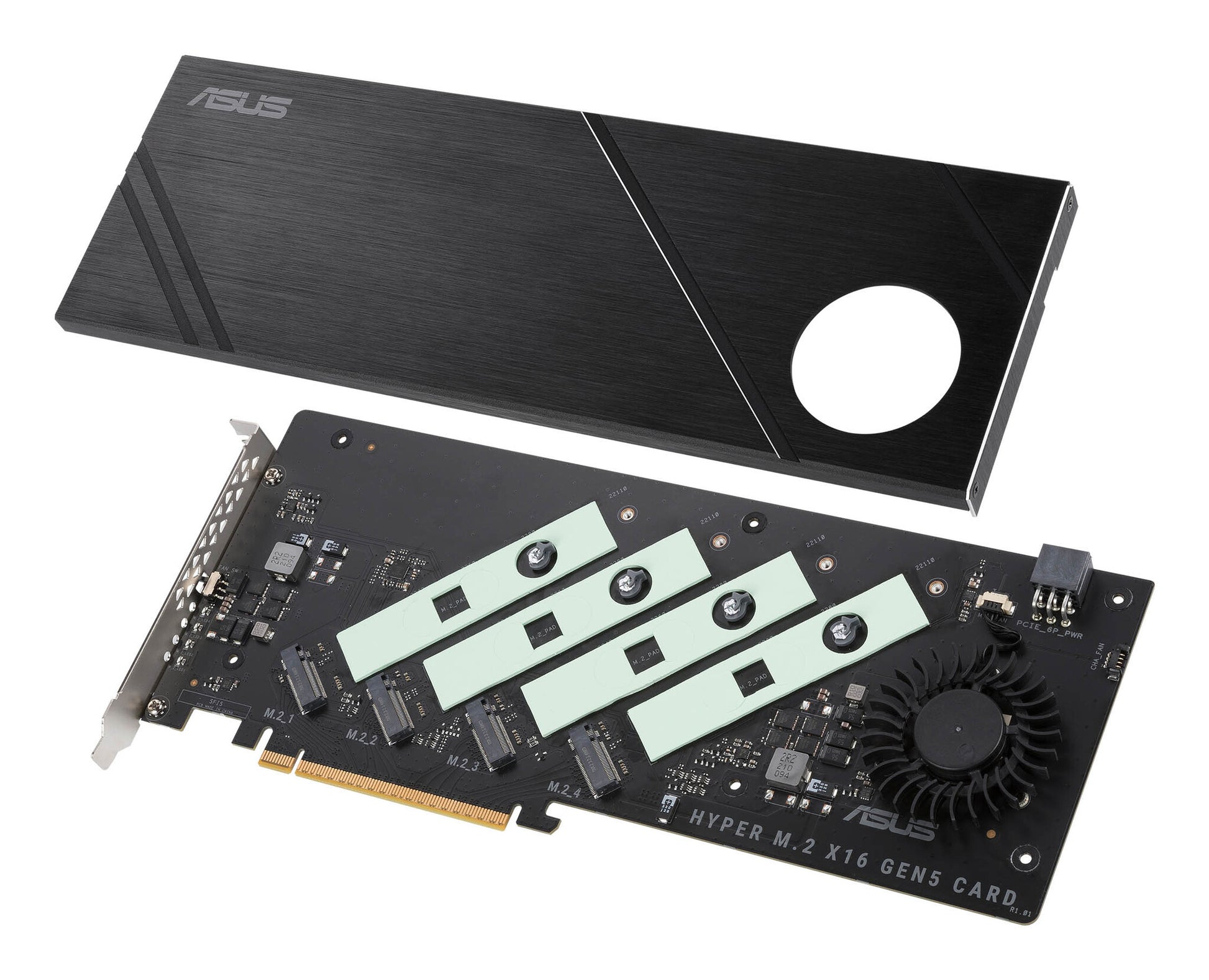

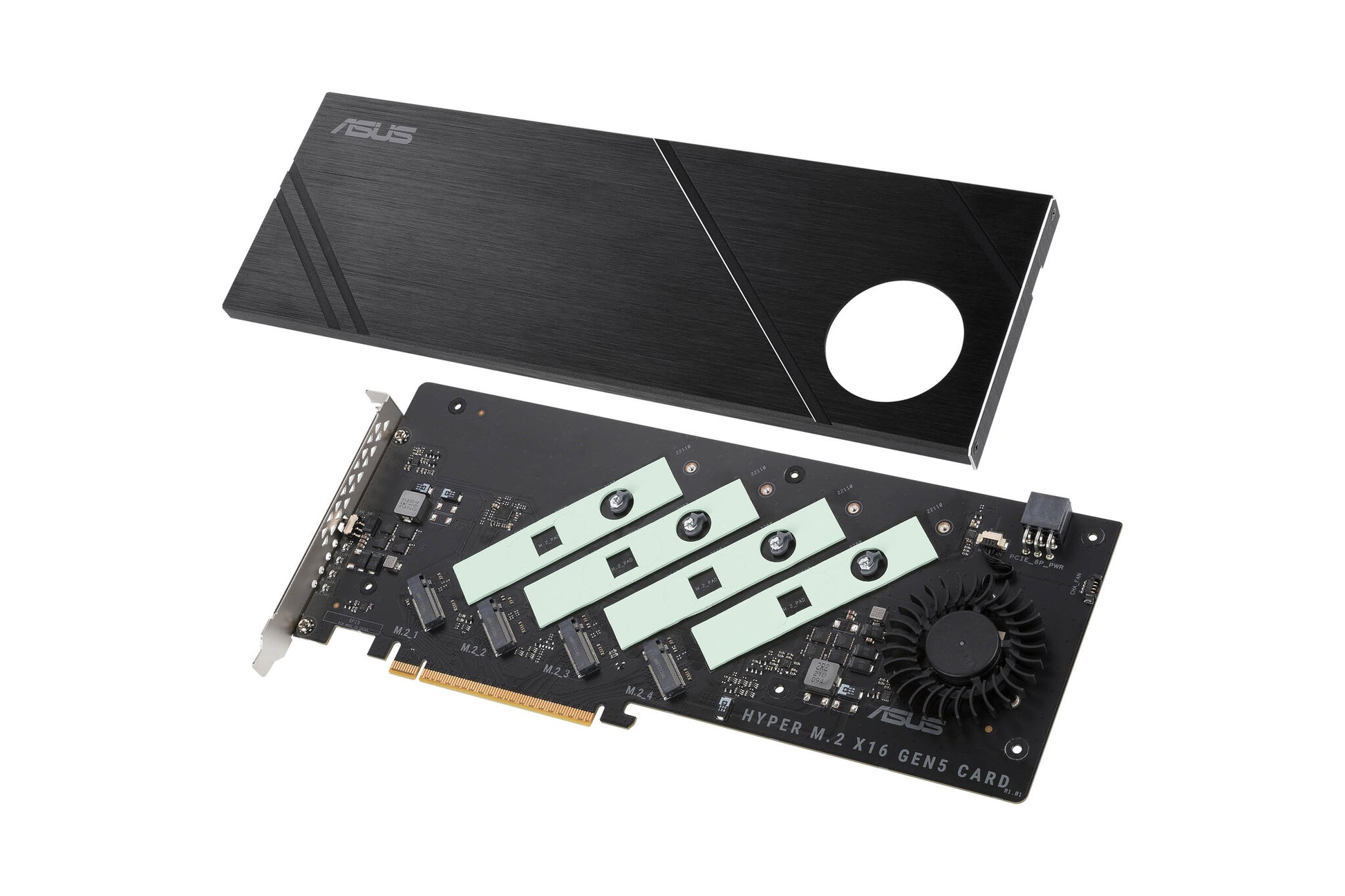

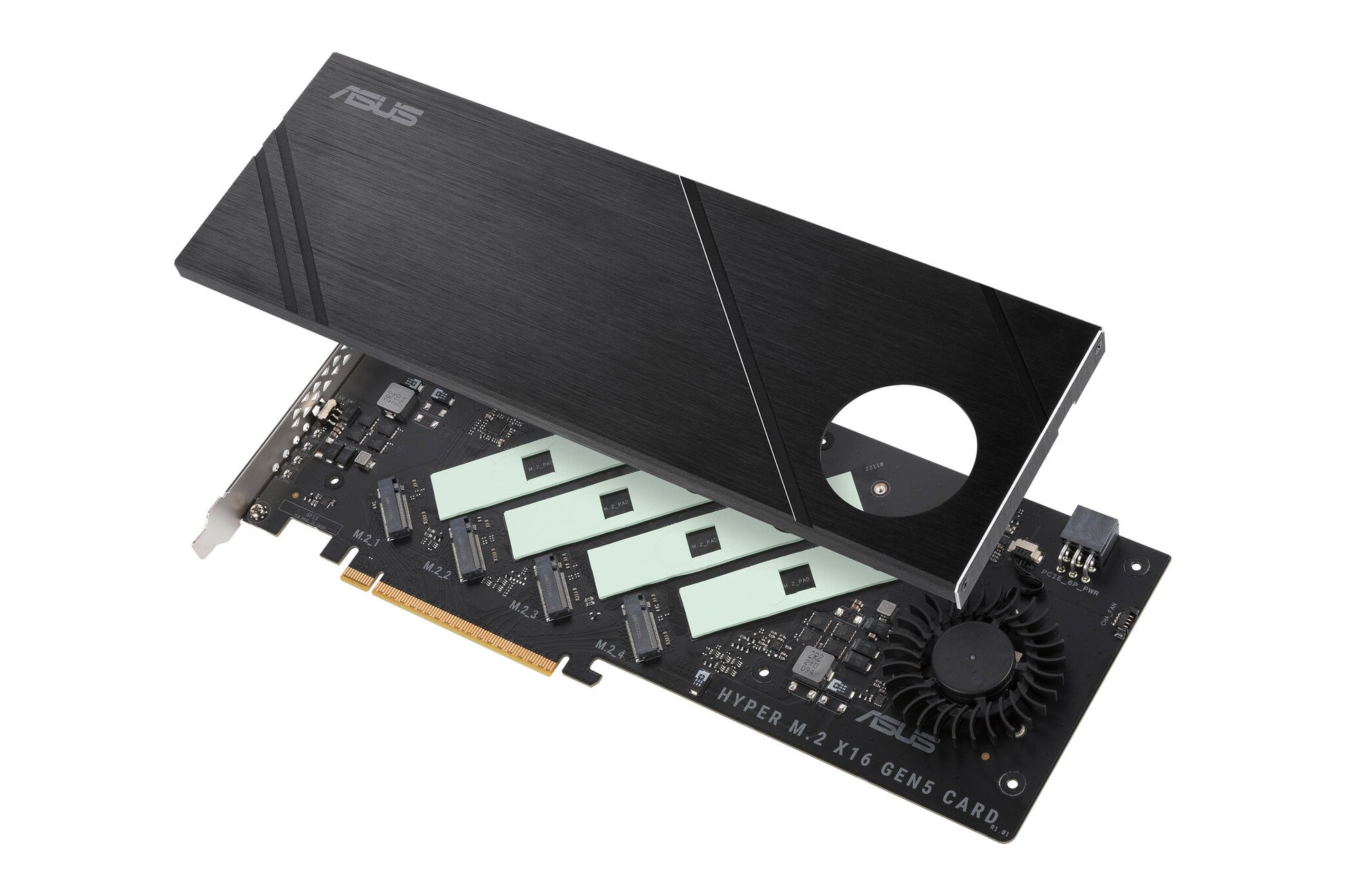

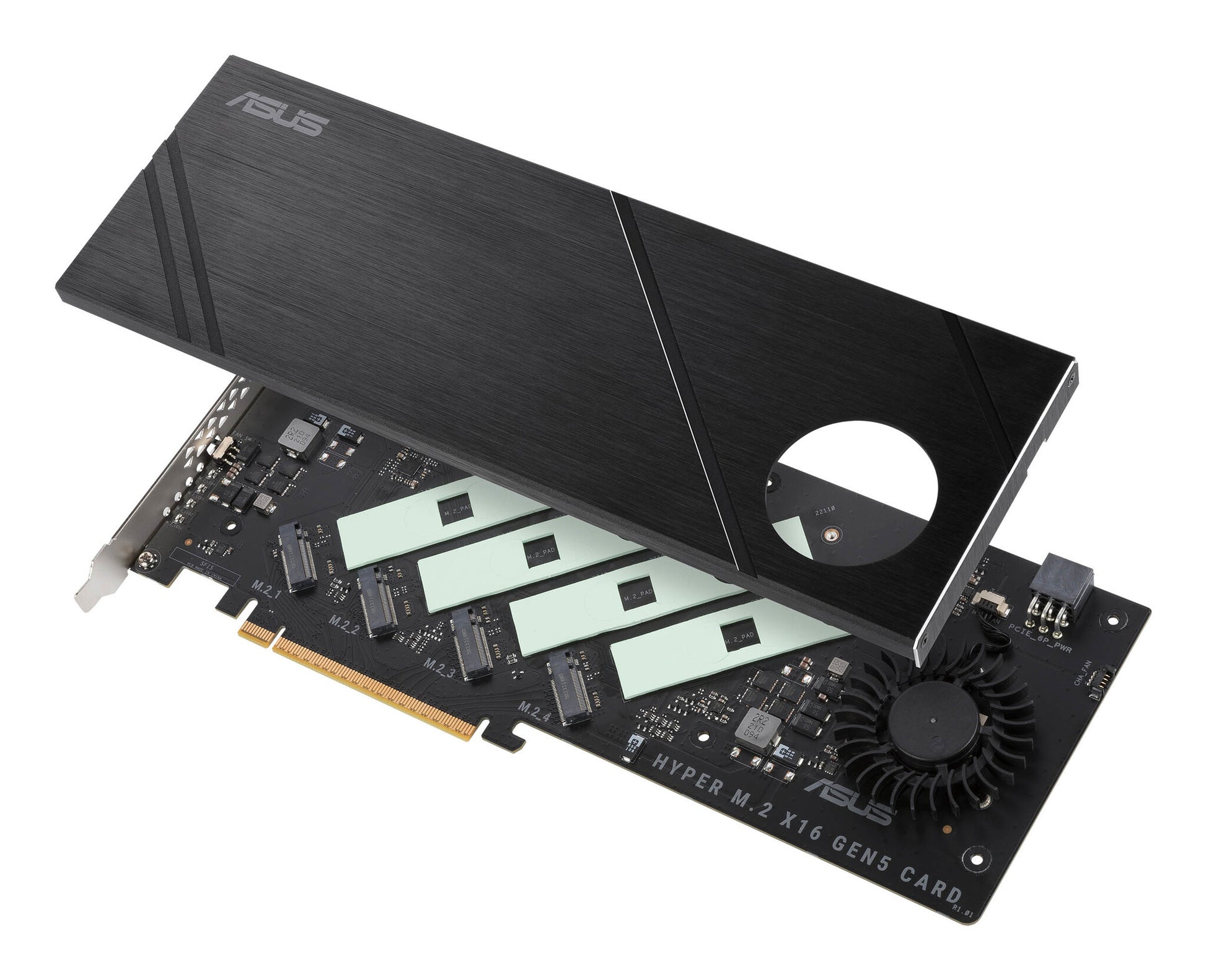

A full-cover heatsink that attaches to the M.2 SSD and features air duct and blower-style fan. Plus, the four M.2 slots are supported by top and bottom thermal pads to reduce temperature-induced throttling during heavy, sustained data transfers.

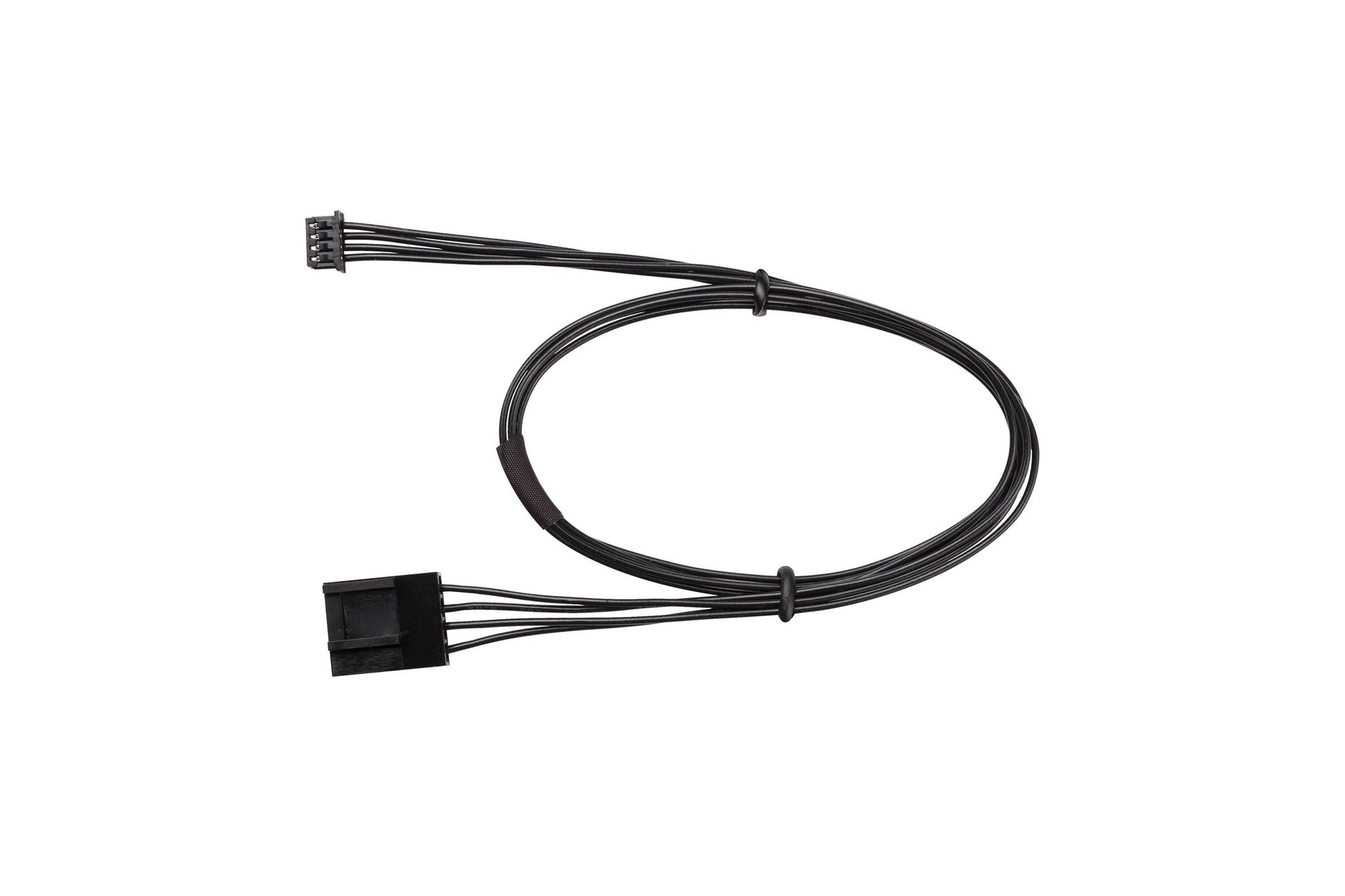

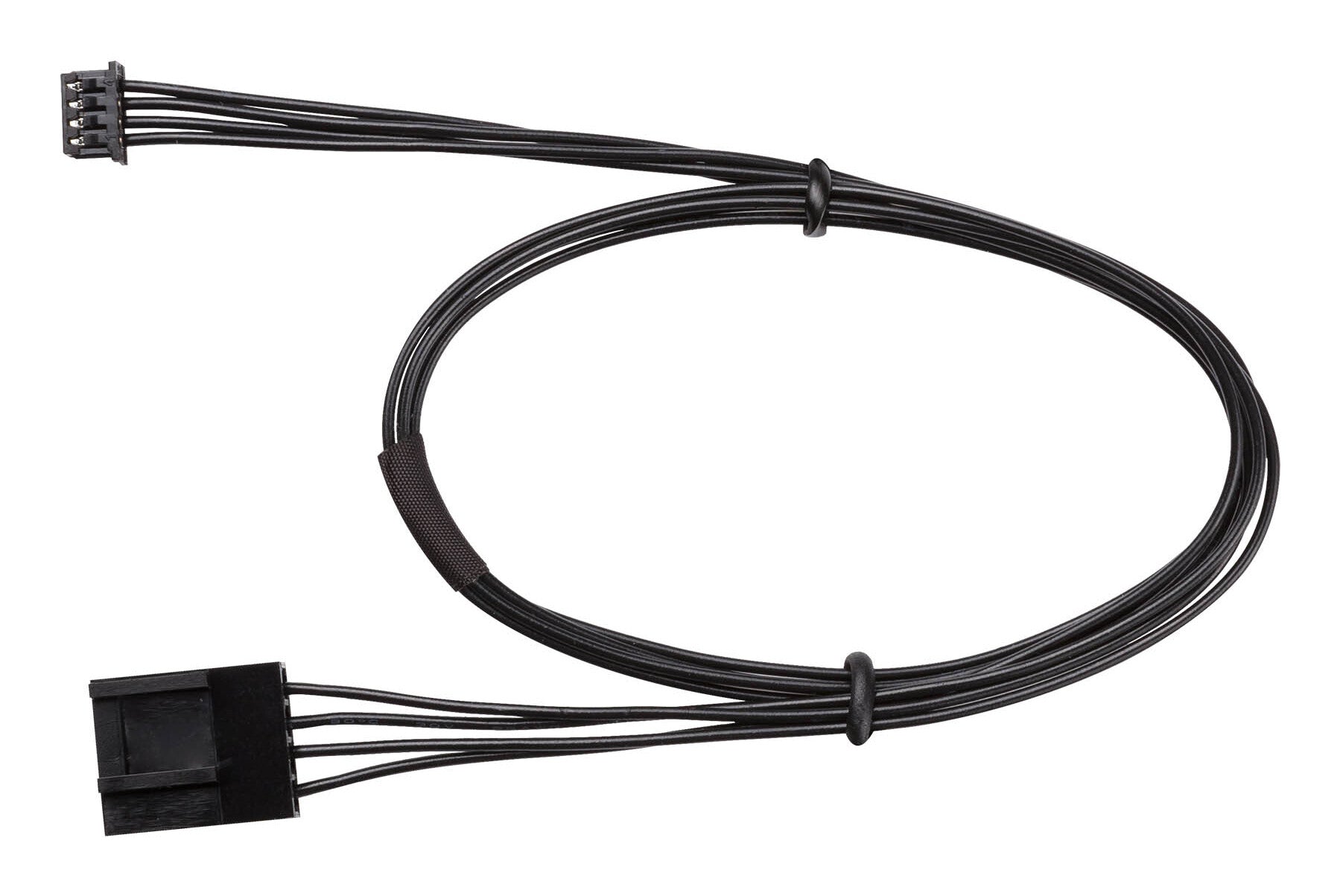

The integrated blower-style active fan easily connects to the motherboard chassis fan header, allowing users to adjust fan speed in ASUS Fan Xpert 4.

Designed For Unthrottled Transfer Speeds
The ASUS Hyper M.2 x16 Gen5 Card has four M.2 slots — supporting both PCIe 5.0 and 4.0 — that allow users to supplement entire Designed for latest-generation NVMe drives, the card features a stable power supply that provides up to 14 watts of power per drive. The card also supports RAID functions across four M.2 slots ,providing up to 128 GT/s bandwidth per M.2 slot.

Ports & interfaces
Host interface PCIe
Output interface M.2
Expansion card standard PCIe 5.0
NVMe Yes
Design
Internal Yes
Product colour Black
Purpose PC
Cooling type Active
Number of fans 1 fan(s)
Number of expansion slots 4
LED indicators Access
Easy to install Yes
Features
Data transfer rate (max) 512 Gbit/s
Weight & dimensions
Width 290 mm
Depth 122 mm
Height 15 mm
Packaging data
Quantity per pack 1 pc(s)

Specifications

BrandASUS
TypeInterface Cards/Adapters
SKU90MC0CY0-M0EAY0
