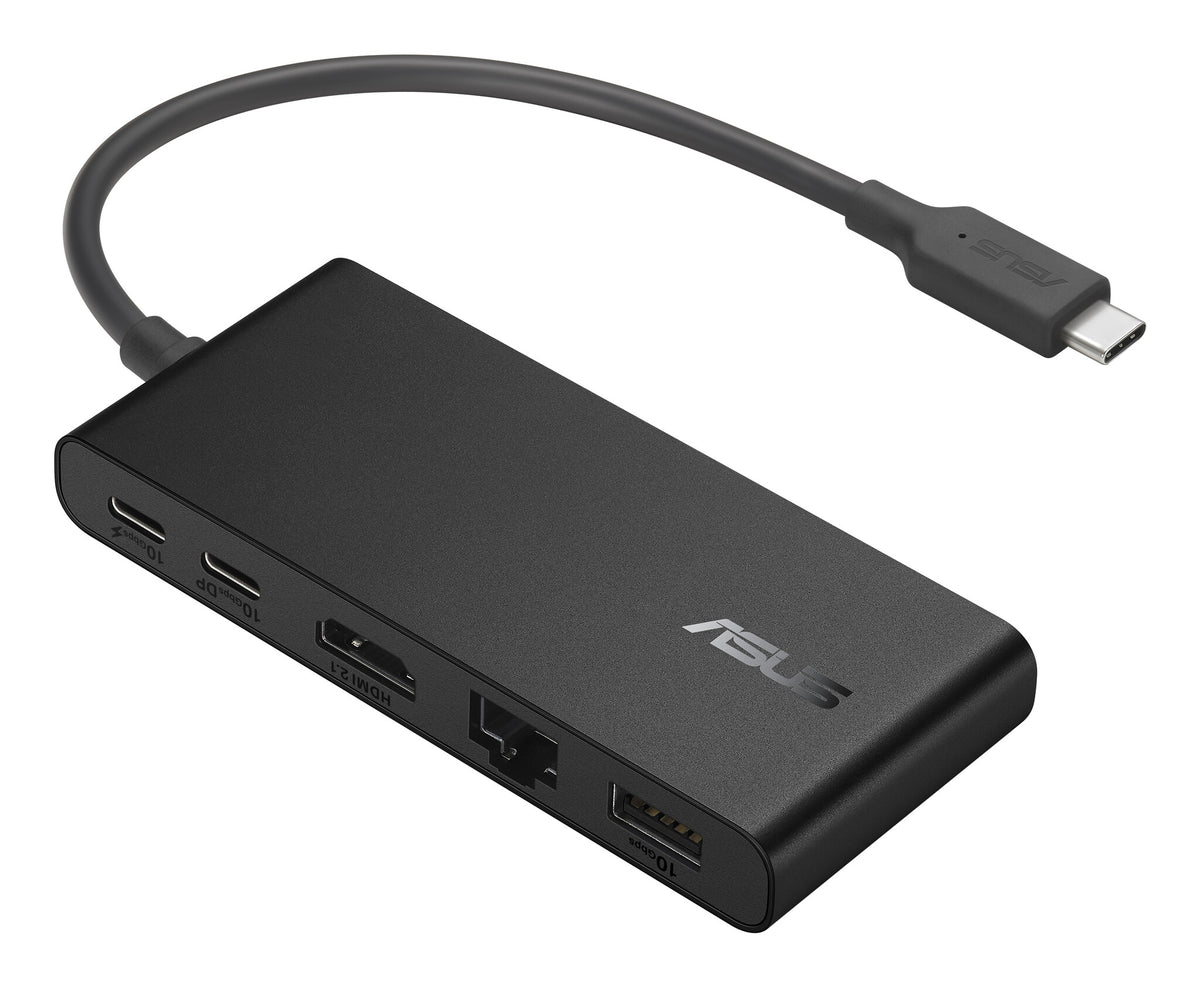

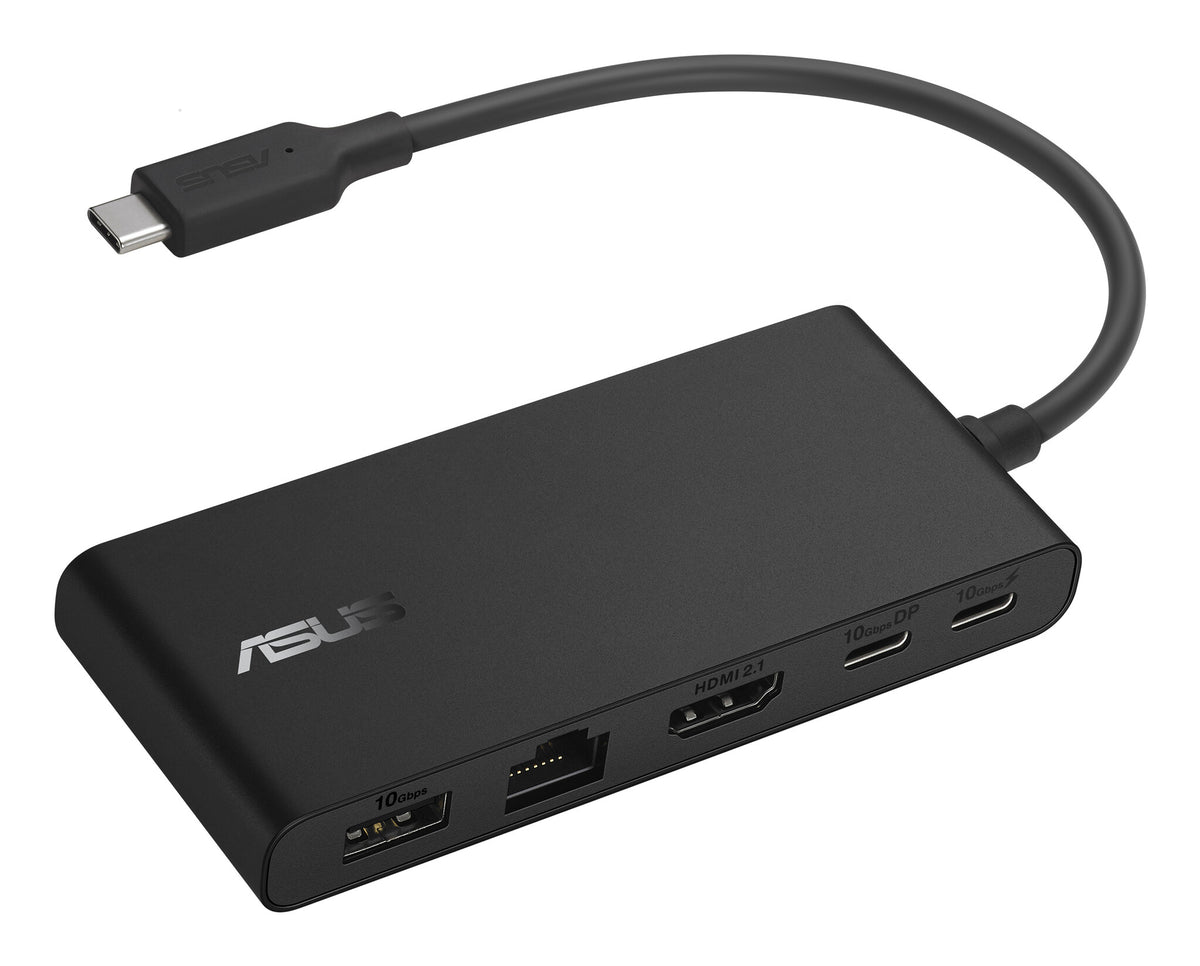

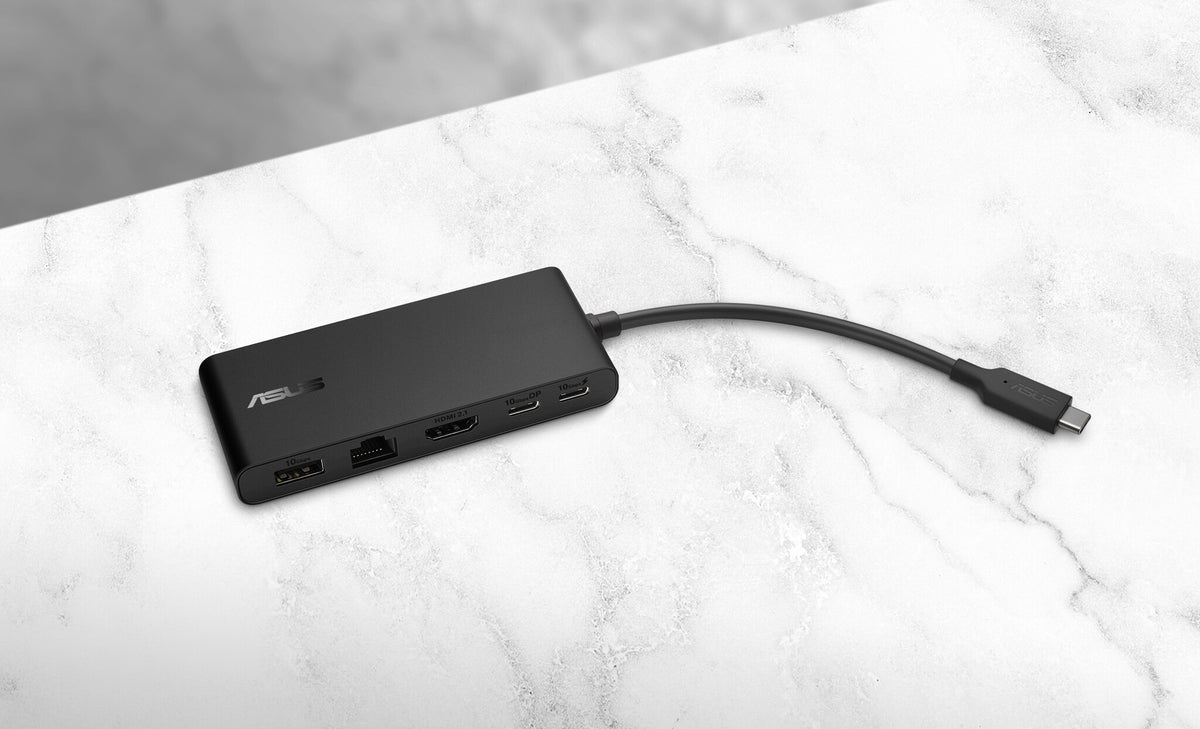

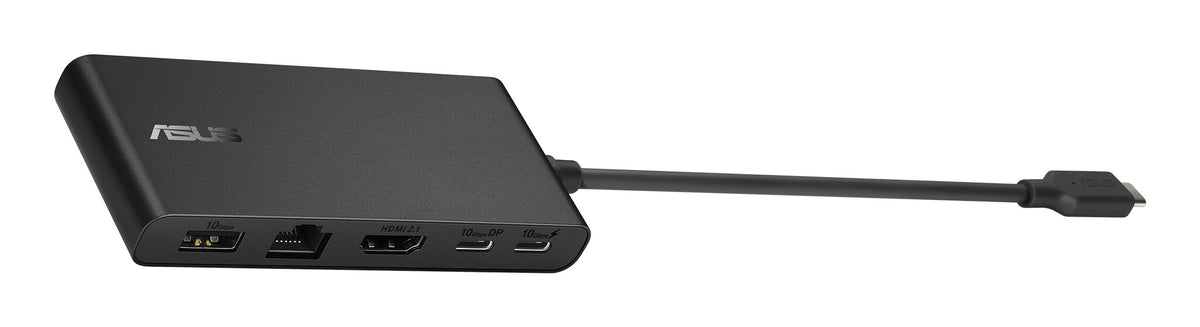

Dual 4K USB-C Dock DC201
All Your Connections, in One
ASUS Dual 4K USB-C Dock is a compact, portable, and stylish 5-in-1 docking station that offers dual 4K 60 Hz output via HDMI 2.1 and USB-C®, superfast 10 Gbps file transfers via USB, Gigabit Ethernet, and up to 100-watt Power Delivery to power and charge laptops and mobile devices. It offers users a world of convenience, efficiency, and productivity.

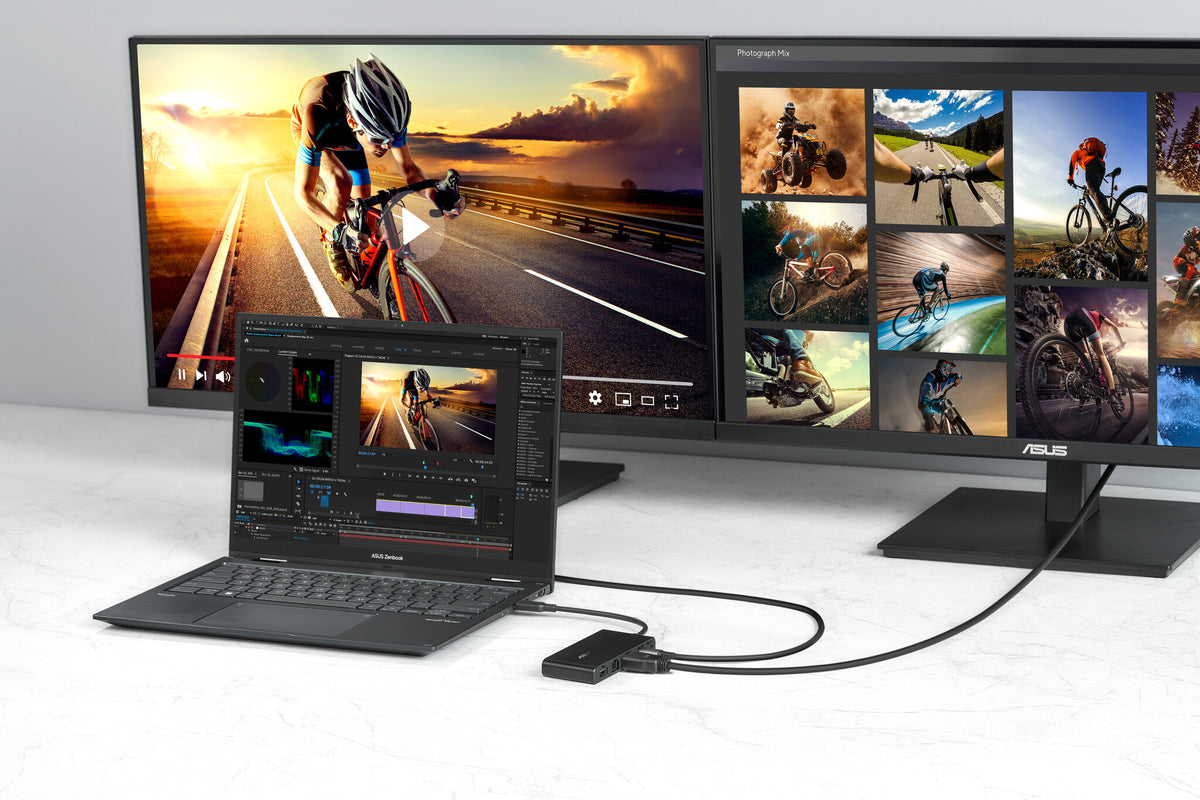

Rock-steady Visuals
Ultrasmooth visuals

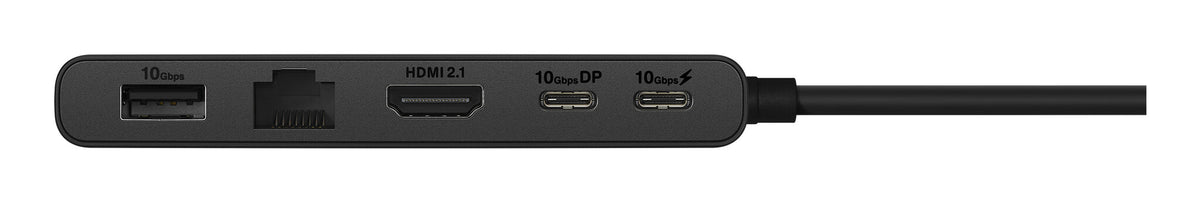

ASUS Dual 4K USB-C Dock offers a variety of output options to meet varying needs, giving users more flexibility when it comes to their workstation layout and device connections. For single extended display setups, the dock’s HDMI 2.1 port and the USB 3.2 Gen 2 Type-C1 port (with DisplayPort 1.4 support) offers a maximum output of 4K resolution at 144 Hz, or 8K at 30 Hz.
Charging Capability
Charge fast, charge in tandem
ASUS Dual 4K USB-C Dock supports USB Power Delivery of up to 100 watts. That’s enough to rapidly charge almost any modern USB-C® device, including the latest ultraportable notebooks. In addition, a USB-A port offers up to 10.5-watt output, enabling two devices to be charged simultaneously.
Fast Data Transfer
Superfast file transfers
Both the USB-A and USB-C® on ASUS Dual 4K USB-C Dock support data transfers of up to 10 Gbps, which is up to 4x faster than previous-generation specs. Large files and folders will flow in moments, rather than minutes.
Durability
Superior durability and stability
For improved strength and resilience, ASUS Dual 4K USB-C Dock has a connecting coaxial cable that’s shielded by an aluminum braid that provides up to 1.7x better performance than traditional cables. High-quality construction minimizes the risk of signal attenuation, reducing interference by up to 60% while ensuring rock-solid connections. The cable is also supremely tough and has been laboratory tested to withstand up to 10,000 bends and twists.
The ASUS Dual 4K USB-C Dock has also passed WWCB certification, ensuring it meets international quality and compatibility standards.
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB Power Delivery |
Yes |
| USB Power Delivery up to |
100 W |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPort version |
1.4 |
| Microphone in |
No |
| DC-in jack |
No |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
1000 Mbit/s |
| Performance |
|---|
| Product colour |
Black |
| Card reader integrated |
No |
| Data transfer rate |
10 Gbit/s |
| Maximum digital resolution |
7680 x 4320 pixels |
| Maximum refresh rate |
144 Hz |
| Number of displays supported |
2 |
| Housing material |
Metal, Plastic |
| Power |
|---|
| Power source type |
USB |
| Output current |
1.5 A |
| Output voltage |
5 V |
| USB cable length |
0.15 m |
| Wireless charging |
No |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Width |
104 mm |
| Depth |
45 mm |
| Height |
14 mm |
| Weight |
98 g |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
