7.32 W, 120 x 120 x 25mm, 1000 rpm, 6-Pin, 12 V/0.61 A, 17.5 dBA, 3 x Astro 12 fans, H66F RGB Control Hub & Remote Control incl.
120mm fan with 6-Pin connector featuring a stylish Omni RGB LED Lighting design. Access 16.8 million colors using compatible Addressable RGB motherboards including ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion.

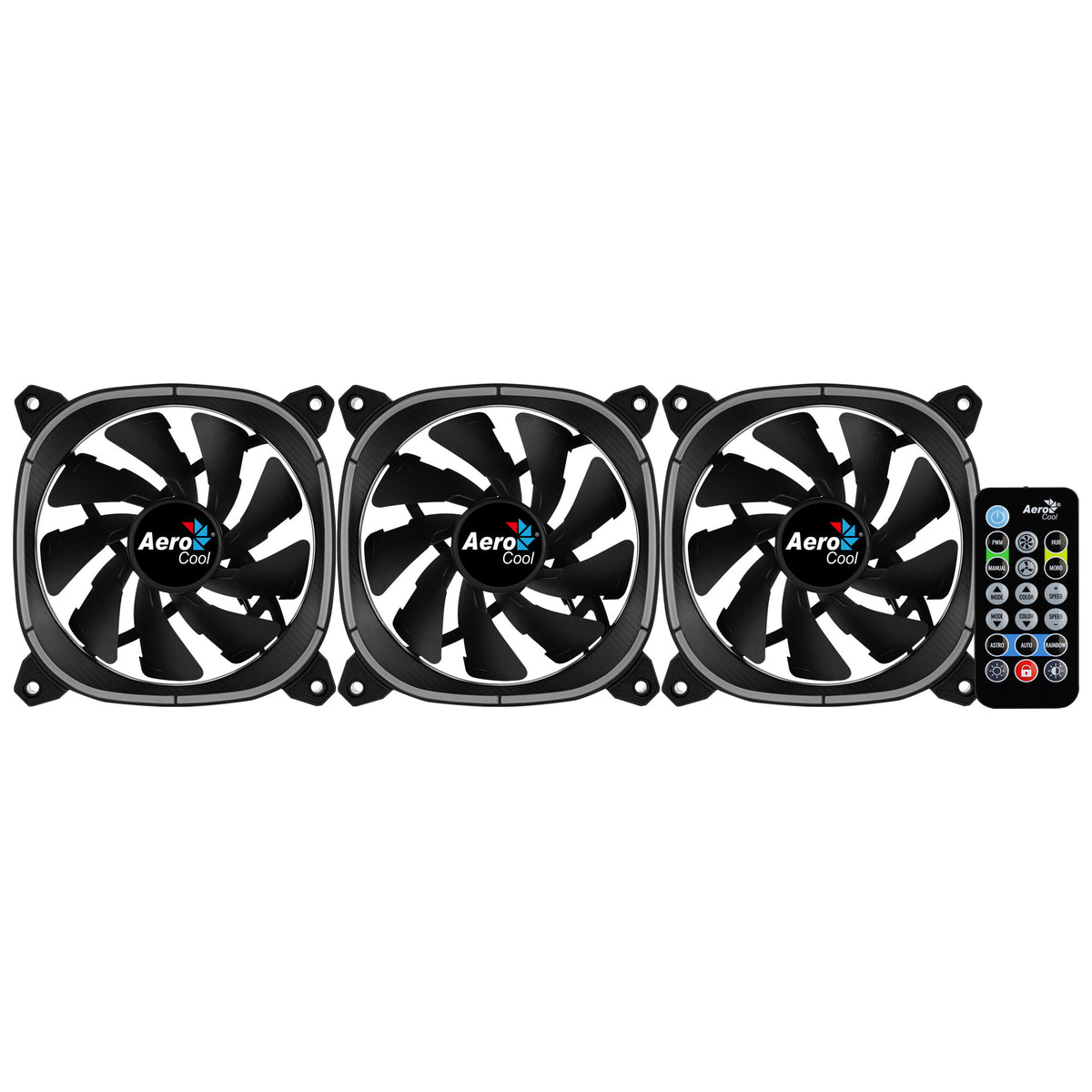

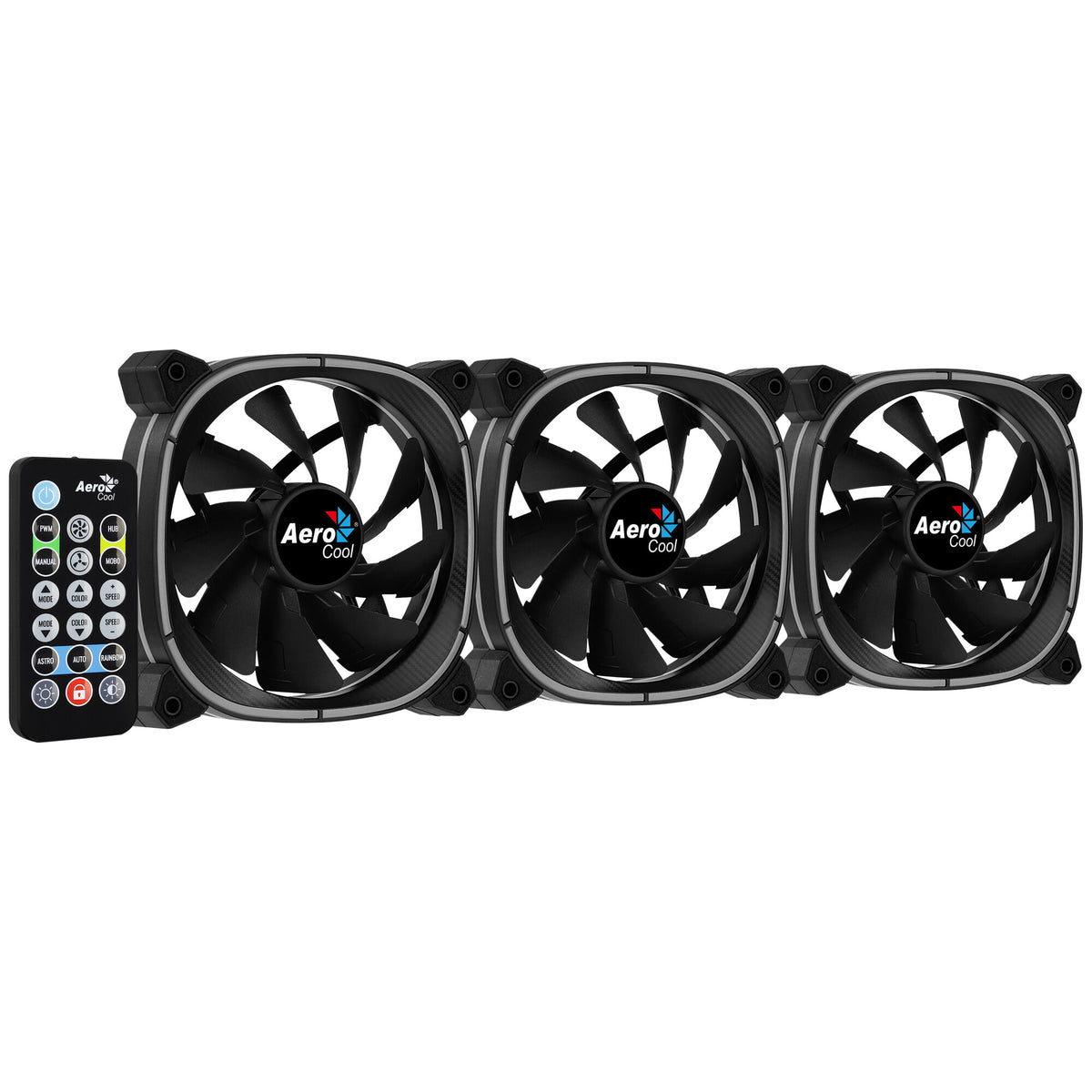

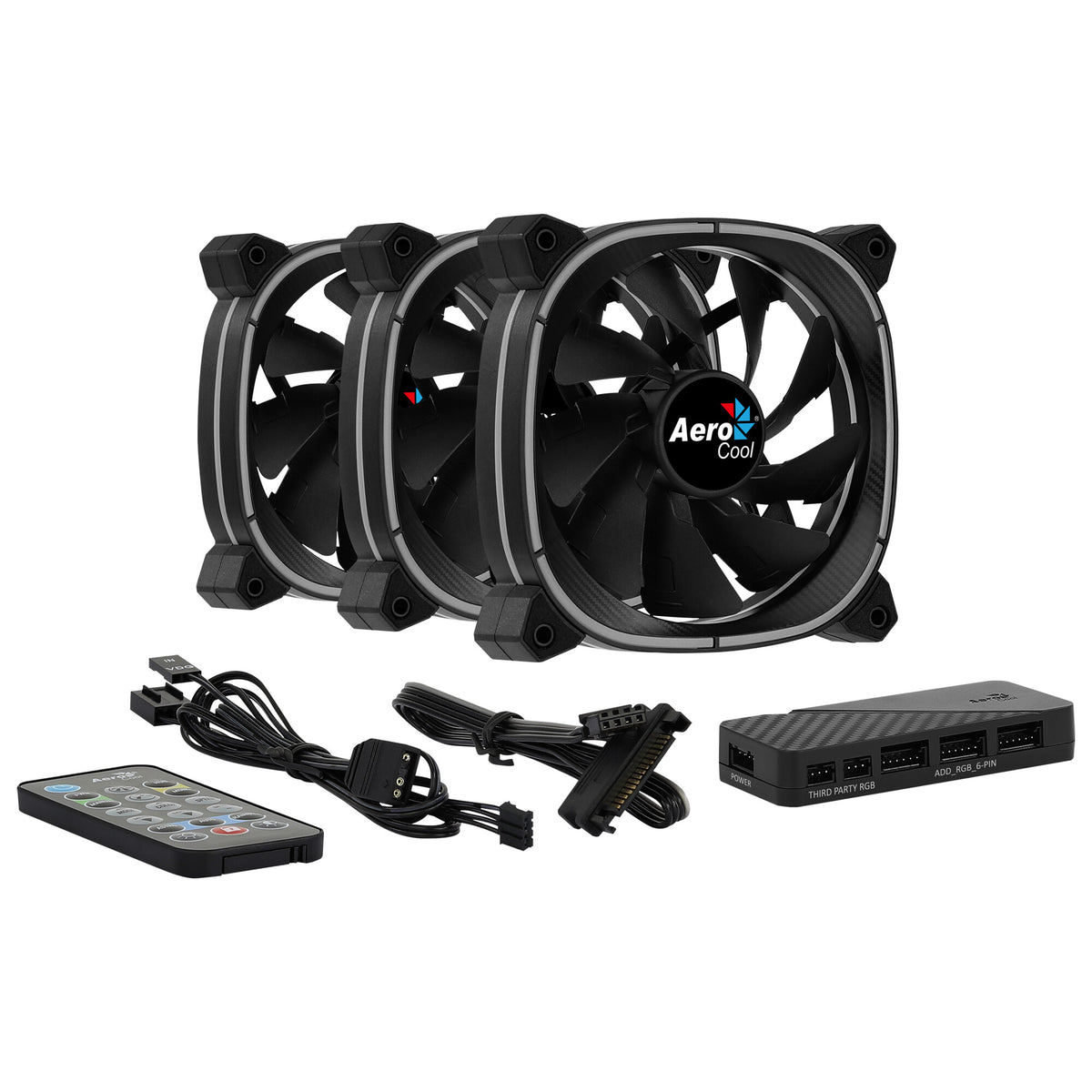

Comes equipped with three Astro 12 Addressable RGB fans, H66F RGB Control Hub, and Remote Control.

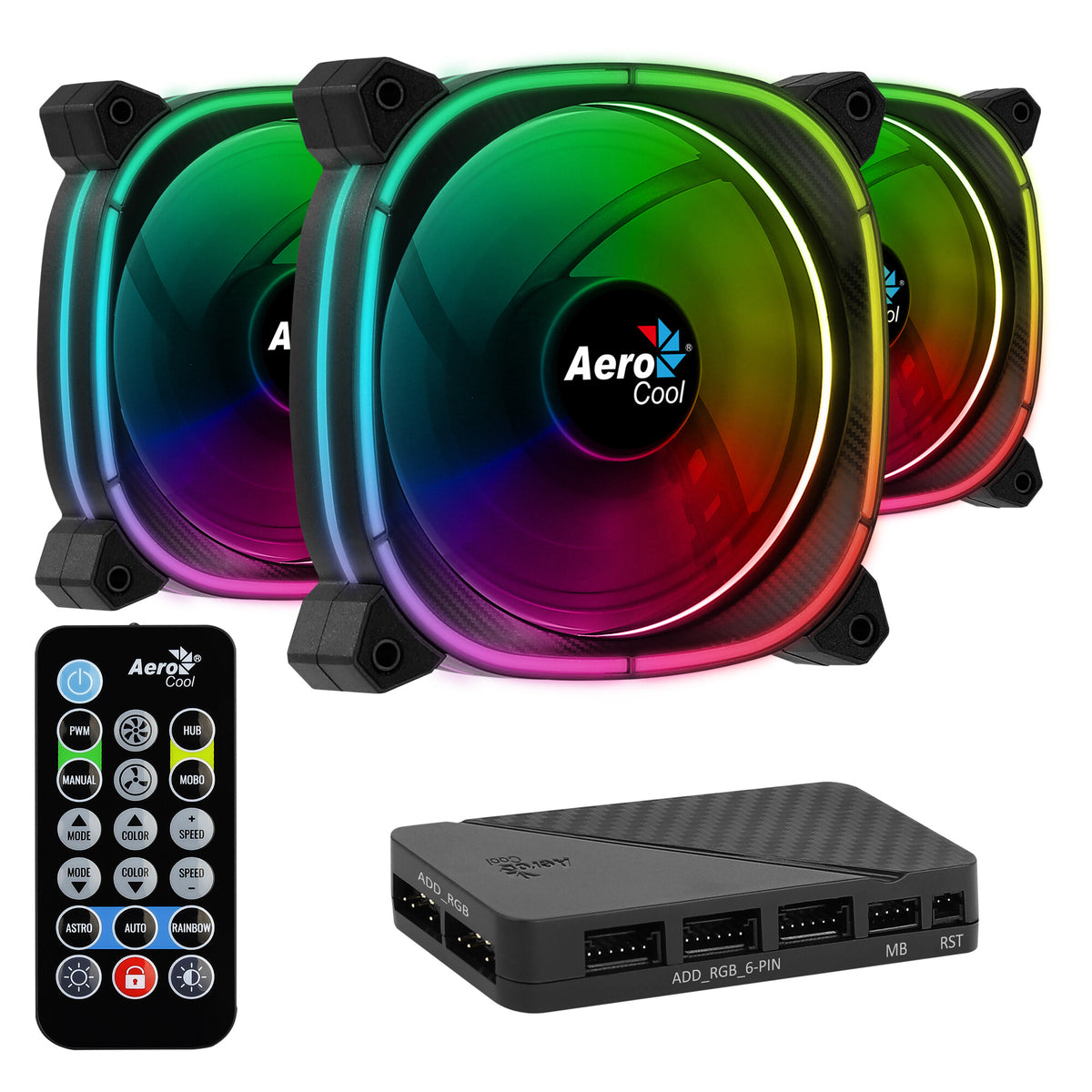

H66F RGB CONTROL HUB
Features a 6-port hub with PWM control functions that allows you to connect up to six 6-Pin Addressable RGB fans and up to two Addressable RGB accessories with 5V ARGB connector.
Motherboard connector supports Addressable RGB motherboards (Asus Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion).
PWM CONTROL FUNCTIONS
H66F hub comes with PWM control functions for optimized fan speed to maximize cooling efficiency and minimize noise.
Please check if the 4-Pin fan header on your motherboard is PWM compatible.
• PWM based – PWM compatible
• Voltage based – not PWM compatible
ADDRESSABLE RGB RECEPTOR CABLE INCLUDED
Comes with a receptor cable to connect your hub with compatible Addressable RGB motherboards.
- ARGB MB Connector (For all other ARGB MBs such as ASUS, MSI, etc.)
- ARGB MB Connector (Gigabyte RGB Fusion)
- 4-PIN Hub Connector
- PWM 4-Pin Connector
POWER CABLE INCLUDED
Comes with a cable to power the hub.
- SATA Power Connector
- 4-Pin Hub Power Connector
OMNI RGB LED LIGHTING DESIGN

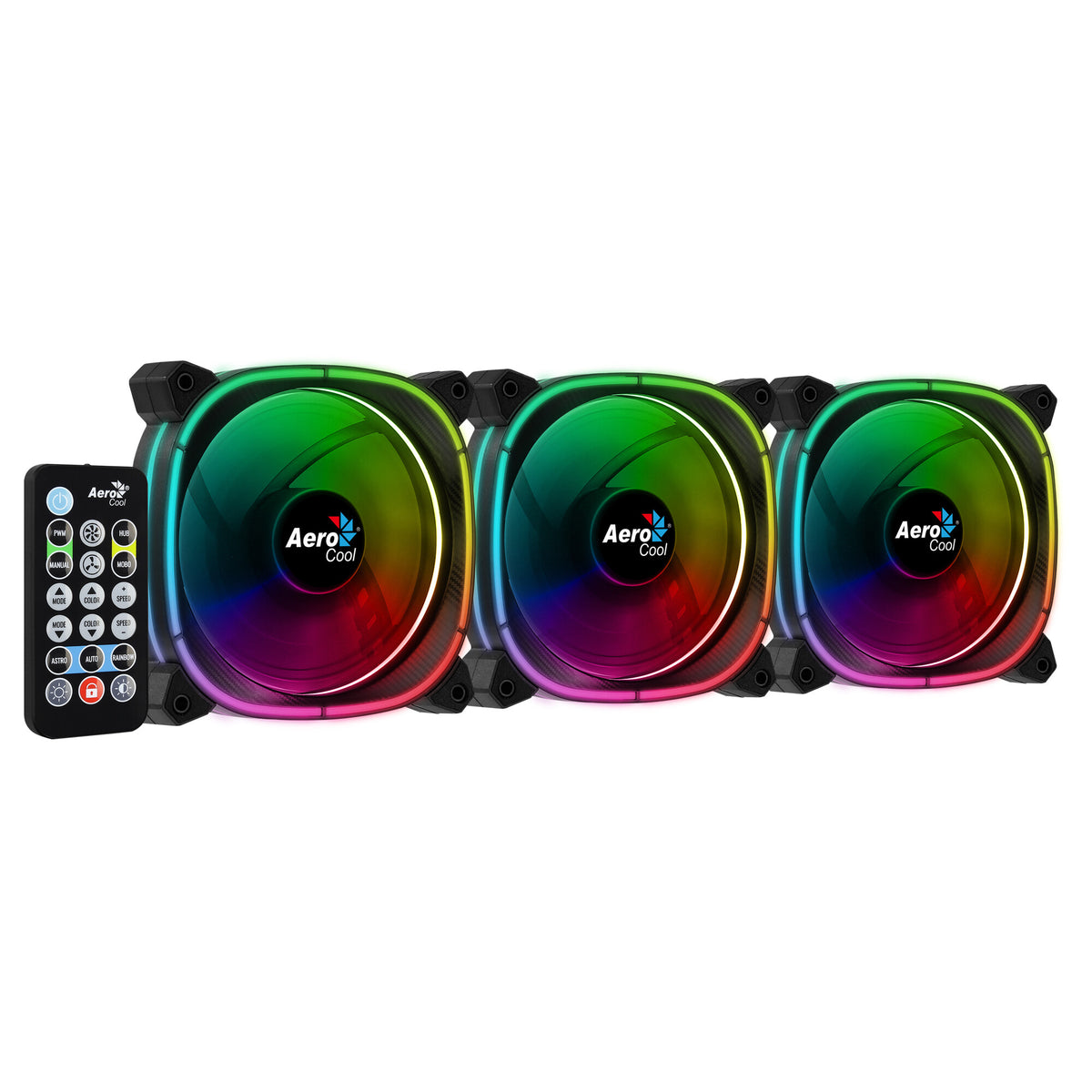

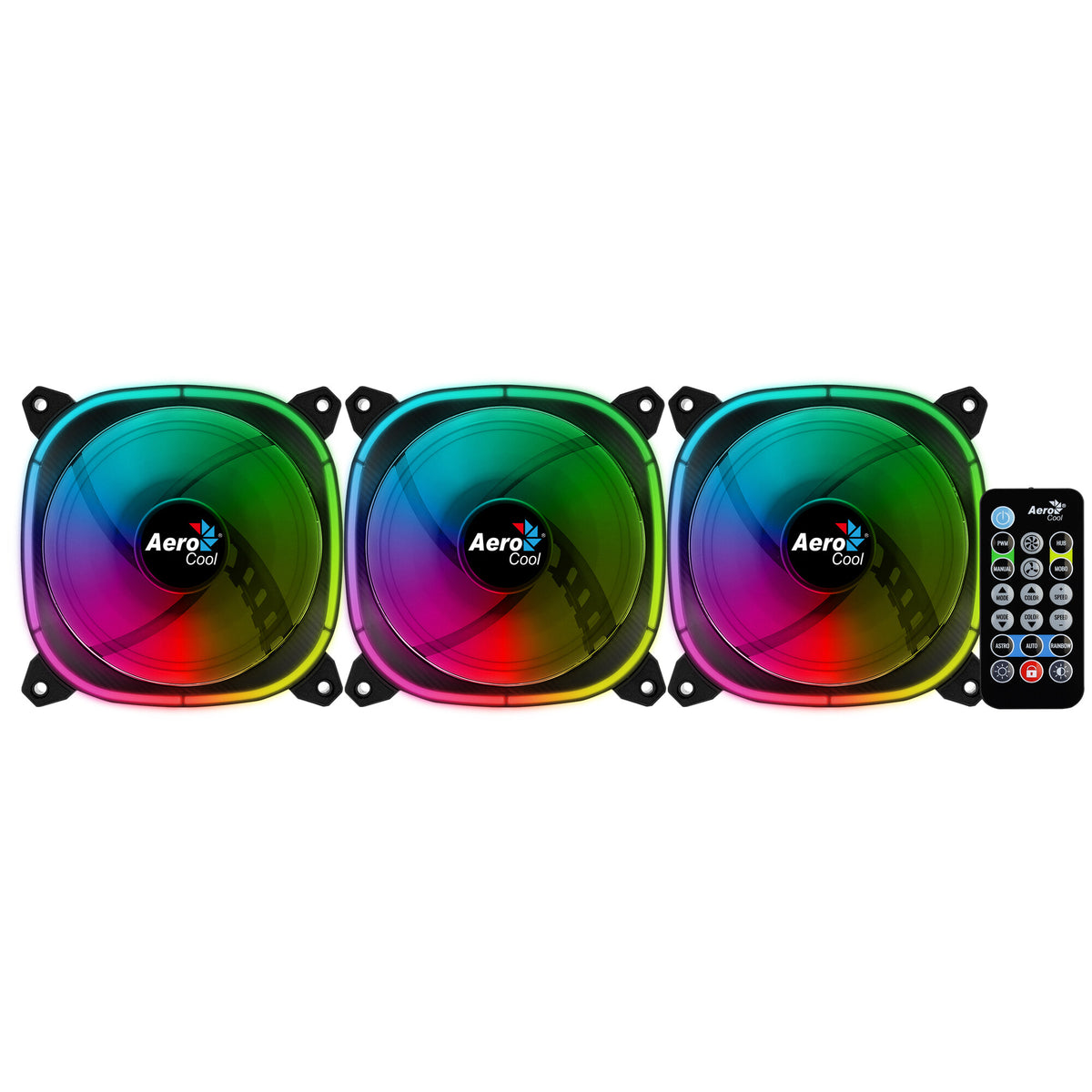

Equipped with RGB LED Lighting on the front, sides, and back of the fan, the Astro allows for clear viewing of your RGB from any angle while providing superior cooling performance.
CARBON FIBER STYLE FINISHING
Featuring a stylish carbon fiber style finishing, this fan delivers a futuristic flair to your rig.
CURVED FAN BLADES
Curved fan blades effectively direct airflow to increase air pressure and reduce air resistance for maximum cooling performance.
ANTI-VIBRATION PADS
Anti-vibration pads absorb and dampen vibrations caused by fan rotation.
COMES WITH 6-PIN CONNECTOR
Connects to H66F RGB Control Hub. Compatible with Tor, Tor Pro, and Klaw cases.
| Performance |
|---|
| Suitable location |
Computer case |
| Type |
Fan |
| Fan diameter |
12 cm |
| Supported processor sockets |
Not supported |
| Compatible processor series |
Not supported |
| Rotational speed (max) |
1000 RPM |
| Noise level (high speed) |
17.5 dB |
| Maximum airflow |
42.1 cfm |
| Maximum air pressure |
1.68 mmH2O |
| Bearing type |
Hydraulic |
| Mean time between failures (MTBF) |
60000 h |
| Design |
|---|
| Product colour |
Black |
| Number of fans |
3 fan(s) |
| Number of fan blades |
9 |
| Illumination LED |
Yes |
| Illumination colour |
Blue, Green, Red |
| Fan connector |
6-pin |
| Power |
|---|
| Power consumption (typical) |
7.32 W |
| Rated voltage |
12 V |
| Starting voltage |
7 V |
| Rated current |
0.61 A |
| Weight & dimensions |
|---|
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Packaging content |
|---|
| Screws included |
Yes |
| Number of screws |
12 |
| Remote control included |
Yes |
| Other features |
|---|
| RF transmission range |
10 m |
| RF transmission frequency |
433.92 MHz |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
