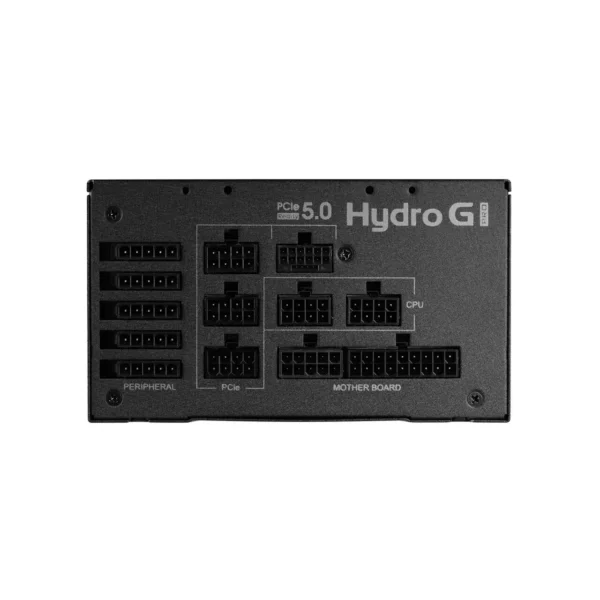

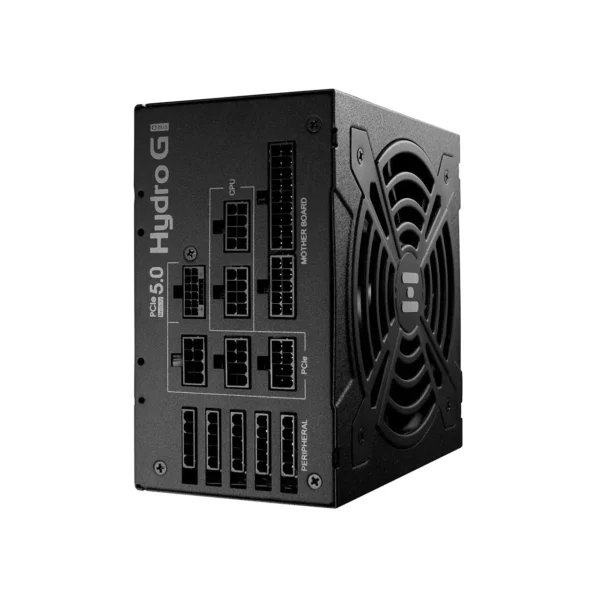

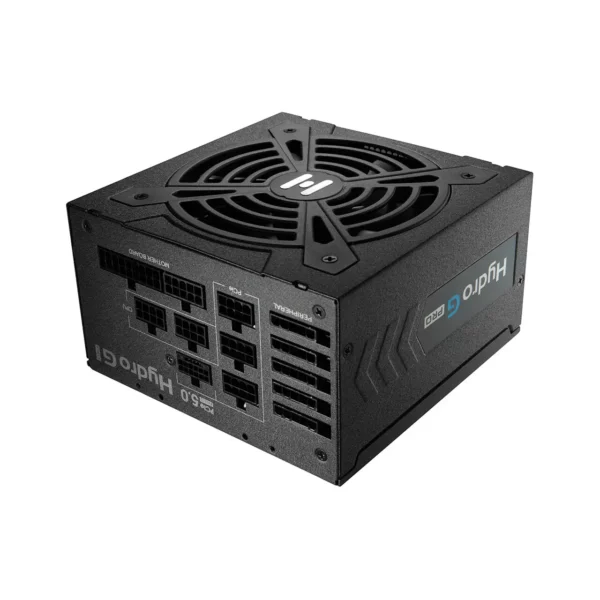

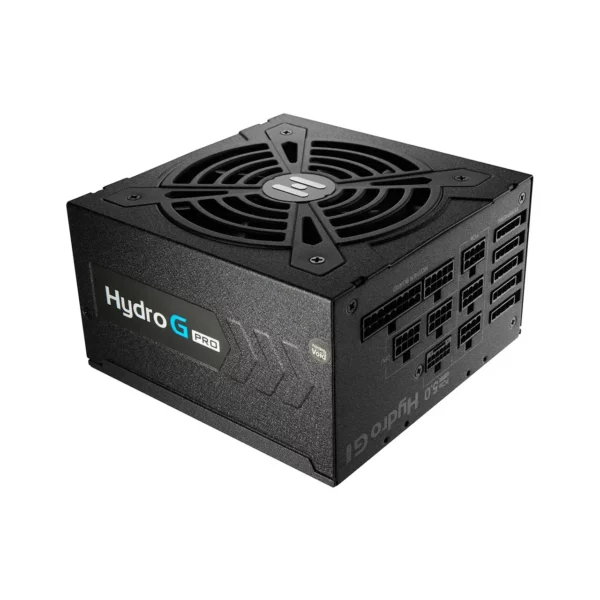

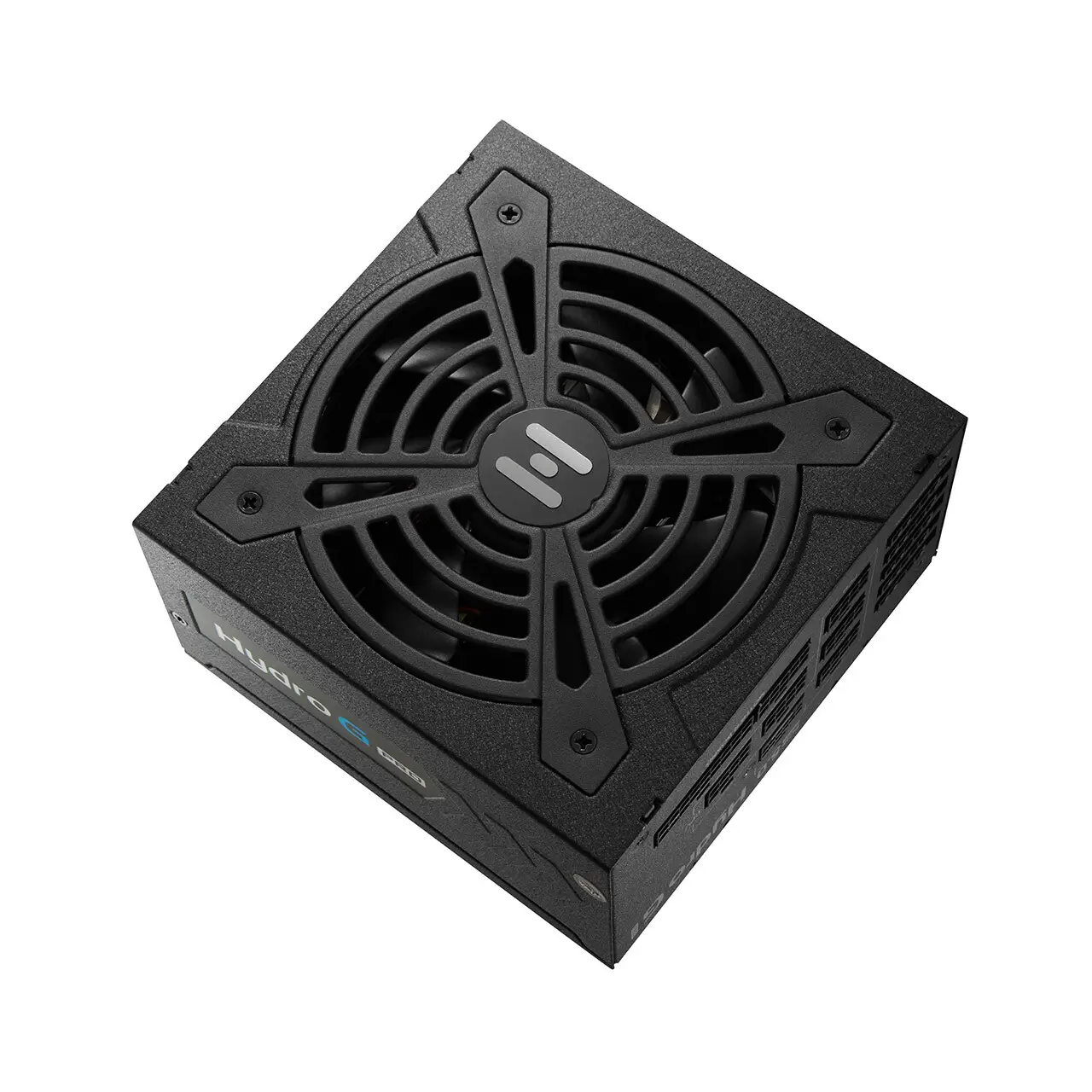

FSP Hydro G PRO ATX3.0(PCIe5.0) 850W power supply unit 20+4 pin ATX ATX Black
850W ATX3.0 Hydro G PRO PCIe Gen 5.0 Ready 80+ Gold – ATX
- Delivered by tomorrow (order Mon-Fri Delivery times 07:00 - 17:00) *T&C's Apply
- Including shipping costs on orders over R1500
- Major Cities: 2 to 5 working days
Outlying areas: 5-9 working days
- 7 days to change your mind and free returns *T&C's Apply
- Excellent customer service
Description
The Hydro G Pro Series power supplies feature 12VHPWR Connectors and utilize ATX3.0 with PCIe 5.0 technology for highly efficient performance. Its fully modular design simplifies installation and allows you to use only the cables you need, for a neater and cleaner build. The Fluid Dynamic Bearing (FDB) fan and Japanese E-capacitors together ensure higher reliability and lower noise. The FSP Hydro G Pro chassis is also covered with conformal coatings to guarantee reliable performance in a harsh environment.
It features a server-grade design with copper bars joined to the mainboard and daughter board, this increases conversion efficiency. Its 5V standby circuit also provides a stable 2.5A output, enabling high conversation efficiency. A new heat dissipation design conducts heat through a thermal pad on the bottom of the power supply, transforming the PSU chassis into a heat sink for cooler system airflow. To save power it also comes with an Eco switch, when the Eco switch is turned on, the fan won’t operate until the load is above 30%.
FEATURES:
- Fully Modular Cable System
- 80 PLUS Gold Certification
- Complies with ATX12V V3.0 &EPS12V V2.92
- Efficiency ≧ 90% at typical load
- Eco semi-fanless fan control switch
- Quiet and long-lasting 120mm FDB fan
- Ribbon cable design for enthusiasts
- +12V single-rail design
- +5V & 3.3V DC to DC module design
- Japanese electrolytic capacitors
- Changeable side stickers for DIY enthusiasts and gamers
- Complete protection: OCP, OVP, SCP, OPP, OTP, UVP
SPECIFICATIONS:
- Type: ATX
- PFC: Active PFC
- Input Voltage: 100V-240V
- Input Current: 11-5.5A
- Input Frequency: 50-60Hz
- Output Capacity: 850W
- Max. Output Power: 850W
- Fan Type: 120mm FDB Fan
- Efficiency: 90%
- MTBF: 100, 000 Hrs
- Protection: OCP, OVP, OPP, SCP, OTP, UVP
- Total Power: 850W
- DC Output/Max Output Current/Max Combined Power:
- +3.3V/20A/120W
- +5V/20A/120W
- +12V/70.83A/850W
- -12V/0.3A/3.6W
- +5Vsb/2.5A/12.5W

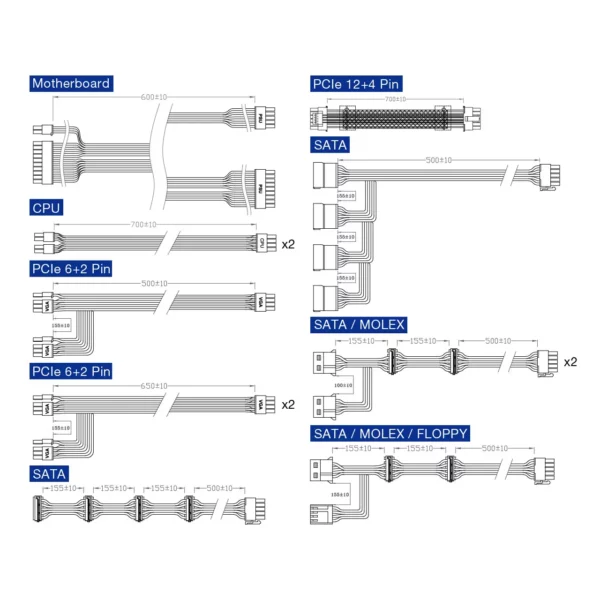

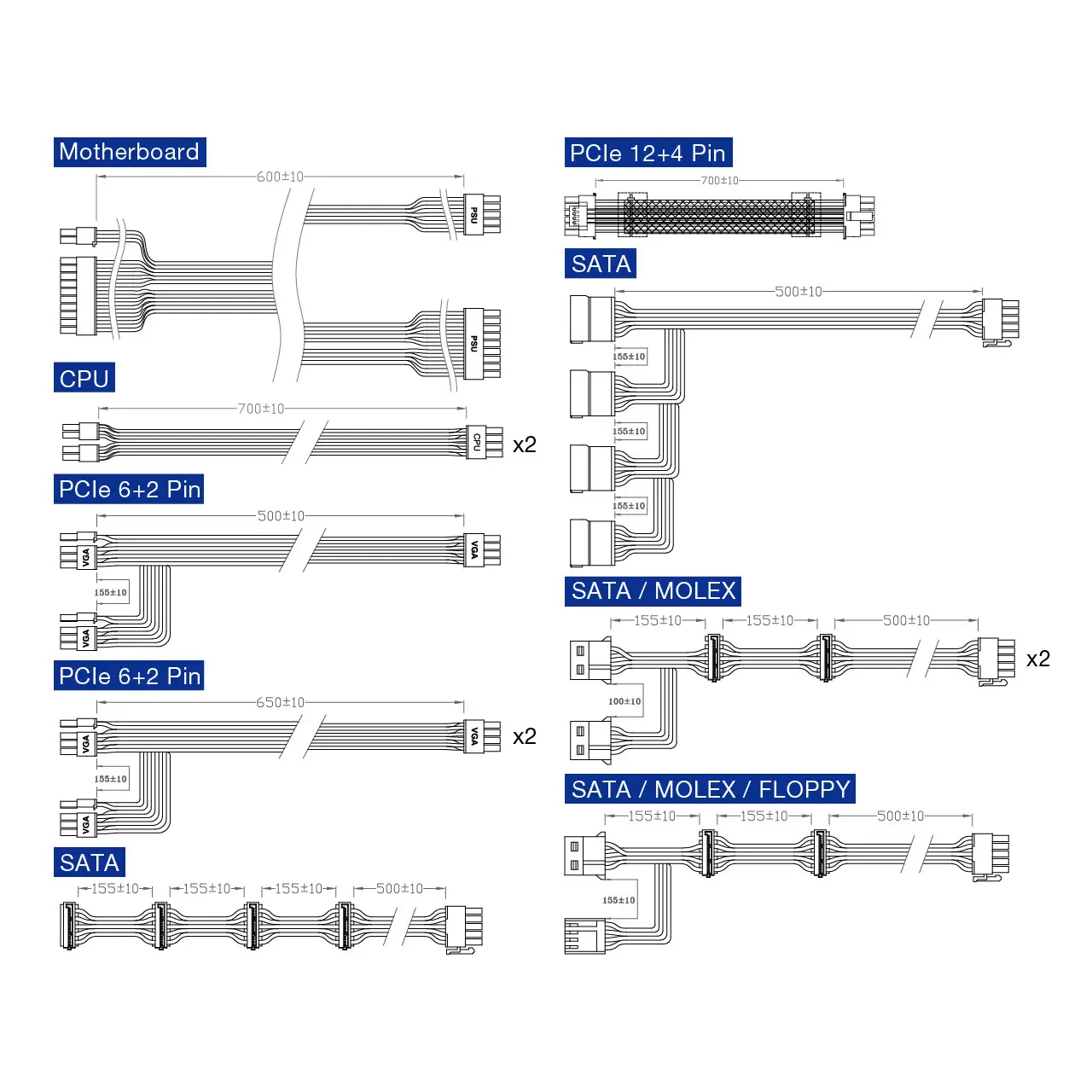

- Cable Connections:
- ATX 20+4 x 1
- 4+4 PIN x 2
- PCI-E 6+2 x 6
- SATA x 14
- Molex (PERIPHERAL) x 5
- Floppy x 1
- Product Dimensions: 15 x 15 x 8.6 cm
WHAT’S IN THE BOX:
- FSP Hydro G PRO 850W 80 PLUS Gold PCIe 5.0 ATX3.0 Power Supply x1
Additional information
| Total power | 850 W |
|---|---|
| Brand | FSP/Fortron |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 11-5.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 90% |
| Power protection features | Over voltage, Over power, Over current |
| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 14 |
| PCI Express power connectors (6+2 pin) | 6 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| Floppy drive power connector | 1 |
| Floppy disk drive connector | Yes |
| Cabling type | Fully-Modular |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.0 |
| EPS version | 2.92 |
| Bearing technology | FDB |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Harmonized System (HS) code | 84733020 |
| SATA power cable length | 500 mm |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 700 mm |
| Mean time between failures (MTBF) | 100000 h |
| Operating temperature (T-T) | 0 – 50 °C |
| Warranty period | 10 year(s) |
