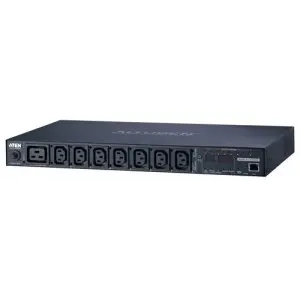

ATEN PE8208G power distribution unit (PDU) 8 AC outlet(s) 1U Black

Description

Features

Power Distribution
– Space saving 1U rack mount design with rear mounting
– IEC or NEMA outlet models
– 3 digit 7-segment front panel LED shows Current / IP Address
– Remote users can monitor outlet status via web pages on their browsers
– Safe shutdown support
– Separate power for the unit’s own power and its power outlets. The user interface is still accessible even when an overload condition trips the devices’ circuit breaker

Remote Access
– Remote power control via TCP/IP and a built in 10/100 Ethernet port
– Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping
– eco PDU Power Management software – eco Sensors
– Supports SNMP Manager V3

Operation
– Local and Remote power outlet control (On, Off, Power Cycle) by individual outlets
– Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
– Easy setup and operation via a browser-based user interface
– Multibrowser support (IE, Firefox, Chrome, Safari)
– RTC support to keep the timer running during times of no power.
– Supports up to 8 user and 1 administrator accounts

Management
– Power status measurement at the PDU or Outlet level
– LED indicators for current and IP address at Outlet level
– Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the outlet level
– Current and voltage threshold setting
– Naming support for outlets
– User outlet access assignment on an outlet-by-outlet basis.
– Event logging and syslog support
– Upgradeable firmware
– Multilanguage support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian

Security
– Two-level password security
– Strong security features include password protection and advanced encryption technologies – 128 bit SSL
– Remote authentication support: RADIUS

eco Sensors Energy Management Software
– Automatic discovery of all PE devices within the same intranet
– Remote real-time power measurement and monitoring
– Remote real-time power outlet management
– Remote real-time environment sensor monitoring
– Plotting/Monitoring of all PE devices
– Exceed threshold alert through SMTP and Syslog
– Power Analysis Report

Package Contents

– 1x PE8208 Power Distribution Unit
– 1x Power Cord
– 1x Rack Mount Kit
– 1x Software CD
– 1x User Instructions
