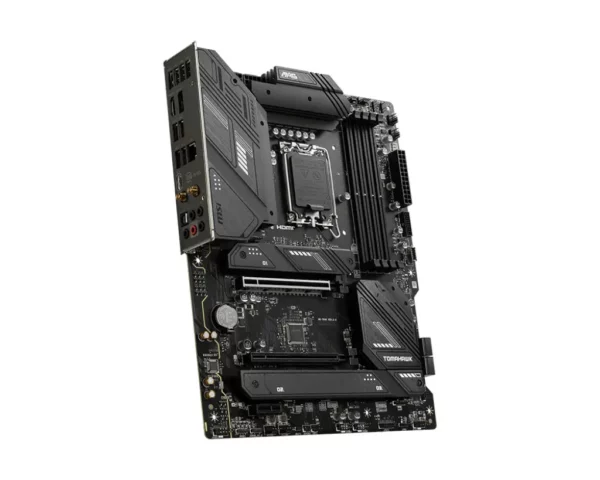

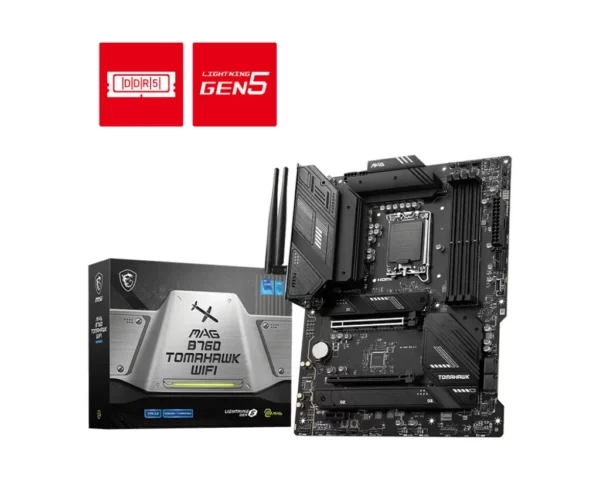

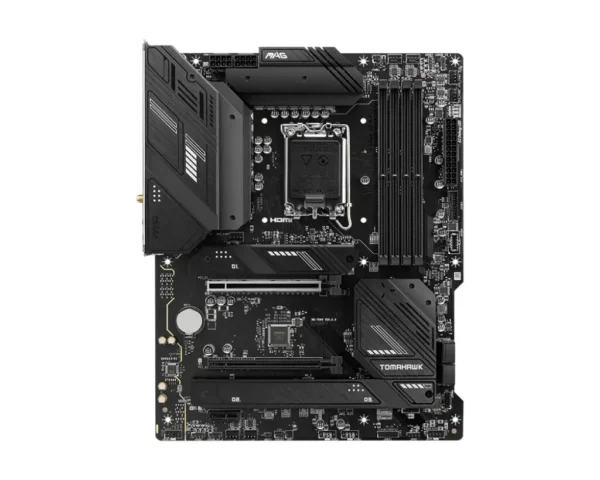

MSI MAG B760 TOMAHAWK WIFI motherboard LGA 1700 ATX
LGA 1700, Intel B760, 4x DDR5, 7000 MHz, 1x HDMI, 1x DisplayPort, 4x SATA 6G, ATX
- Delivered by tomorrow or collect today (order Mon-Fri Delivery times 07:00 - 17:00) *T&C's Apply
- Including shipping costs on orders over R1500
- Pick up at TrueTech.co.za collection point is possible
- 7 days to change your mind and free returns
- Excellent customer service
Description
unite as one
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper
MOS and helps dissipate the heat.
7W/mK Thermal Pad &
Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Additional information
| Processor manufacturer | Intel |
|---|---|
| Brand | MSI |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |

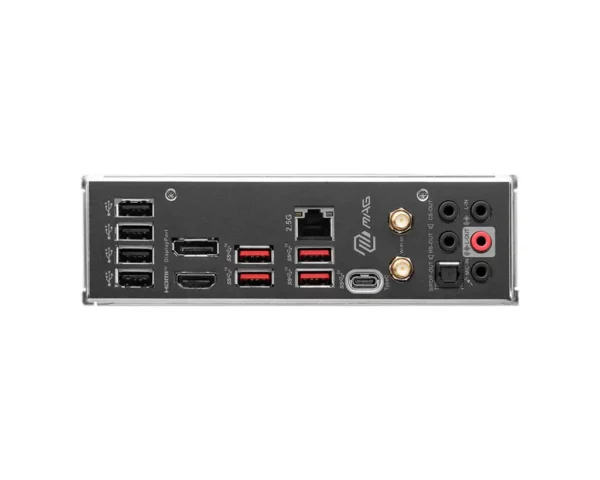

| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Windows operating systems supported | Windows 10, Windows 11 |
| Number of M.2 (M) slots | 3 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Width | 243.8 mm |
| Depth | 304.8 mm |
| Maximum number of SMP processors | 1 |
| Memory channels | Dual-channel |
| Supported memory clock speed (max) | 7000 MHz |
| RAID support | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| USB 2.0 ports quantity | 4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Product colour | Black |
| Power source type | ATX |
| PCI Express x1 (Gen 3.x) slots | 1 |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 3.5 |
| Memory slots type | DIMM |
| PCI Express x16 slots | 2 |
| S/PDIF out connector | Yes |
| On-board graphics card | No |
| ECC сompatibility | Non-ECC |
