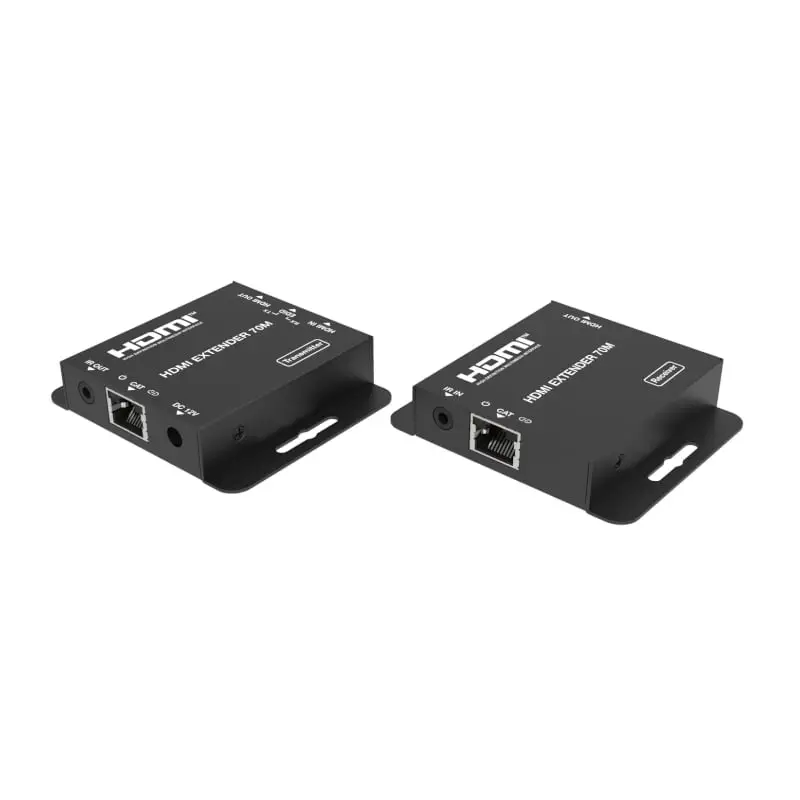

HDCVT HDMI1.4 70m Extender with IR

Description

The HDCVT HDMI Extender with IR Control can extend your high definition video/audio signal and IR control signal up to 70m for 1080p resolution, and up to 40m for 4K30 resolution via a single CAT6 cable. The high-quality construction allows you to achieve zero delays, as well as uncompressed long-distance transmission between the transmitter and receiver. This extender with HDMI loop output can also be cascaded to the next extender, supporting resolutions of up to 4K @ 30Hz. For additional versatility, it supports the EDID copy function as well (you can choose local or remote EDID). To top it all off it also supports high-quality audio formats like PCM7.1, Dolby True HD, DTS HD. This product can be widely used in multimedia conference halls, TV teaching or with large-screen displays.

FEATURES:

• HDMI 1.4, HDCP 1.4 and DVI 1.0 Compliant
• Support Video Resolution up to 4K2K@30Hz YUV 4:4:4
• CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30
• CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30
• Support Copying EDID from Receiver Display or Loop Out Display
• Allow for Cascading via additional HDMI loop out port
• Support one-way POC functionality (from transmitter to receiver)
• One-way IR signal transmission

SPECIFICATIONS:

• HDMI Compliance: HDMI 1.4
• HDCP Compliance: HDCP 1.4
• Video Bandwidth: 10.2Gbps
• Video Resolution: Up to 4K@30Hz
• Audio Support Up to 7.1CH HD audio
• Input TMDS Signal: 3.3 volts
• Input DDC Signal: 5.0 volts/P-P
• ESD Protection

  • Human Body model:

    • +/- 8 kV (air-gap discharge)
    • +/- 4 kV (contact discharge)

• Transmitter:

  • Input:

    • 1 x HDMI Type A [19-pin female]

  • Output:

    • 1 x HDMI Type A [19-pin female]
    • 1 x IR OUT [3.5mm Stereo Mini-jack]
    • 1 x CAT OUT [RJ45, 8-pin female]

• Receiver:

  • Inputs:

    • 1x IR IN [3.5mm Stereo Mini-jack]
    • 1x CAT IN [RJ45, 8-pin female]

  • Output:

    • 1x HDMI Type A [19-pin female]

• Housing: Metal Enclosure
• Colour: Black
• Power Supply 12V/1A DC
• Power Consumption

  • Transmitter: 1.86W
  • Receiver: 0.87W

• Product Dimensions: 7.9 x 6.9 x 1.7 cm
• Weight:

  • Transmitter: 132g
  • Receiver: 130g

WHAT’S IN THE BOX:

• HDCVT HDMI 70M Extender Receiver x1
• HDCVT HDMI 70M Extender Transmitter x1
• IR Blaster Cable x1
• IR Receiver Cable x1
• 12V/1A DC Power Adapter x1
• User Manual x1
