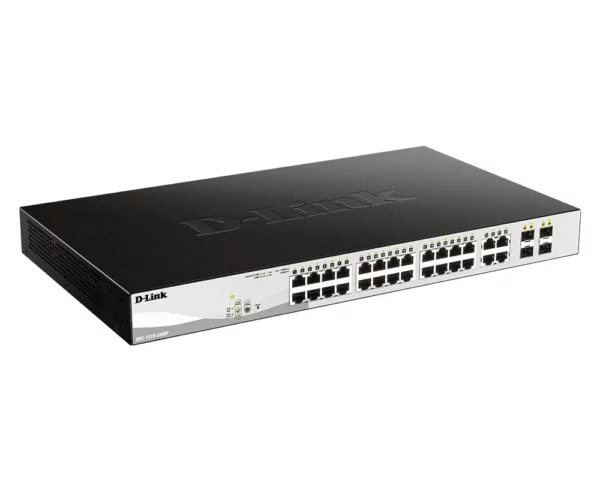

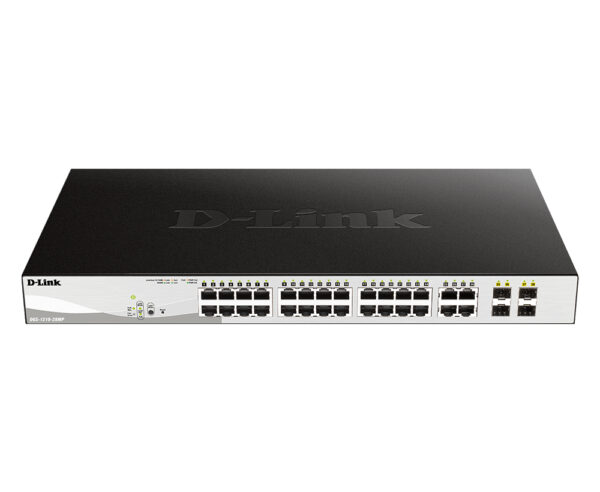

D-Link 28-Port Gigabit PoE Smart Managed Switch including 4 Combo Ports
24 x 10/100/1000BASE-T PoE, 4 x 100/1000 Mbps GbE/SFP, 256 MB DDR3, 32 MB Flash, 440 x 250 x 44 mm
- Delivered by tomorrow (order Mon-Fri Delivery times 07:00 - 17:00) *T&C's Apply
- Including shipping costs on orders over R1500
- Major Cities: 2 to 5 working days
Outlying areas: 5-9 working days
- 7 days to change your mind and free returns *T&C's Apply
- Excellent customer service
Description
Smart Managed with a Plus
With increased PoE output, advanced Layer 2 management features, and Layer 3 static routing , D-Link’s DGS-1210 Smart+ Managed Gigabit Switches provide a cost-efficient and flexible solution for expanding any business network.
Advanced Layer 2 Management with Layer 3 Static Routing
The DGS-1210 Smart+ family has advanced network management options, accessible via Compact CLI or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, dual software images, and dual configuration files.
With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1210 Smart+ family is a versatile solution for access-edge network environments.
Fibre Uplinks
Use fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy-efficient fibre optic cabling that’s immune to interference and which has access to higher throughput to protect the future demands of your business network.
PoE and PoE+, with budgets up to 370W
The DGS-1210 Smart+ Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.
This product is compatible with Nuclias Connect
Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.
Free Network Design and Management Software
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.
Smart Energy-Saving Design
D-Link Green technology enables the DGS-1210 Smart+ series to save power without any sacrifices. The majority of the family utilises a fanless design, otherwise they feature a smart fan that powers on above a certain temperature. All come with advanced silicon technology which saves up to 73% of energy compared to a normal switch.
Surveillance Mode
Select Surveillance Mode in the Web UI to take advantage of easy-to-use surveillance features which enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.
Additional information
Switch type | Managed |
---|---|
Brand | D-Link |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Full duplex | Yes |
MAC address table | 8000 entries |
LED indicators | Yes |
Internal memory | 256 MB |
Power over Ethernet (PoE) | Yes |
Operating temperature (T-T) | -5 – 50 °C |
Operating relative humidity (H-H) | 0 – 95% |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
Storage temperature (T-T) | -40 – 70 °C |
Weight | 2.15 kg |
Switch layer | L2 |
Quality of Service (QoS) support | Yes |
Web-based management | Yes |
MIB support | Y |
Combo SFP ports quantity | 4 |
Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
Port mirroring | Yes |
Flow control support | Yes |
Link aggregation | Yes |
Broadcast storm control | Yes |
Auto MDI/MDI-X | Yes |
Spanning tree protocol | Yes |
Number of VLANs | 256 |
Switching capacity | 56 Gbit/s |
Store-and-forward | Yes |
Packet buffer memory | 4.1 MB |
DHCP features | DHCP server, DHCP client |
Access Control List (ACL) | Yes |
IGMP snooping | Yes |
Multicast support | Yes |
Rack mounting | Yes |
Stackable | Yes |
Form factor | 1U |
Product colour | Black |
Mean time between failures (MTBF) | 469262 h |
Storage relative humidity (H-H) | 0 – 95% |
Heat dissipation | 900.36 BTU/h |
Width | 440 mm |
Depth | 140 mm |
Height | 44 mm |
Power over Ethernet (PoE) ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
AC input voltage | 100 – 240 V |
AC input frequency | 50/60 Hz |
Total Power over Ethernet (PoE) budget | 193 W |
Power connector | AC-in jack |
Auto-negotiation | Yes |
Power supply included | Yes |
Jumbo frames support | Yes |
Jumbo frames | 10000 |
Power consumption (max) | 236.9 W |
MAC address filtering | Yes |
ARP inspection | Yes |
System event log | Yes |
Head-of-line (HOL) blocking | Yes |
VLAN support | Yes |
Forwarding rate | 41.7 Mpps |
Loop protection | Yes |
Memory type | DDR3-SDRAM |
Flash memory | 32 MB |
Number of fans | 2 fan(s) |
Noise level | 51.7 dB |
Power source | AC |
Configuring Location Settings (CLI) | Yes |
