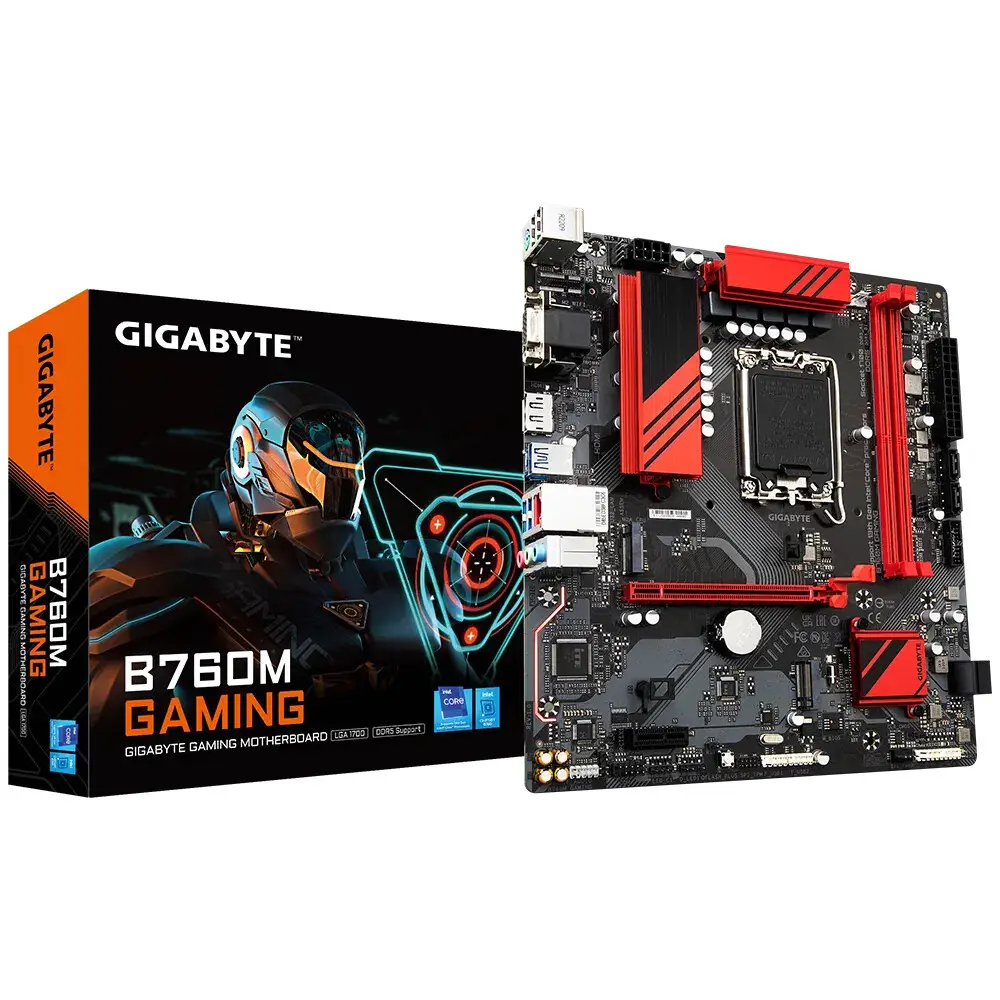

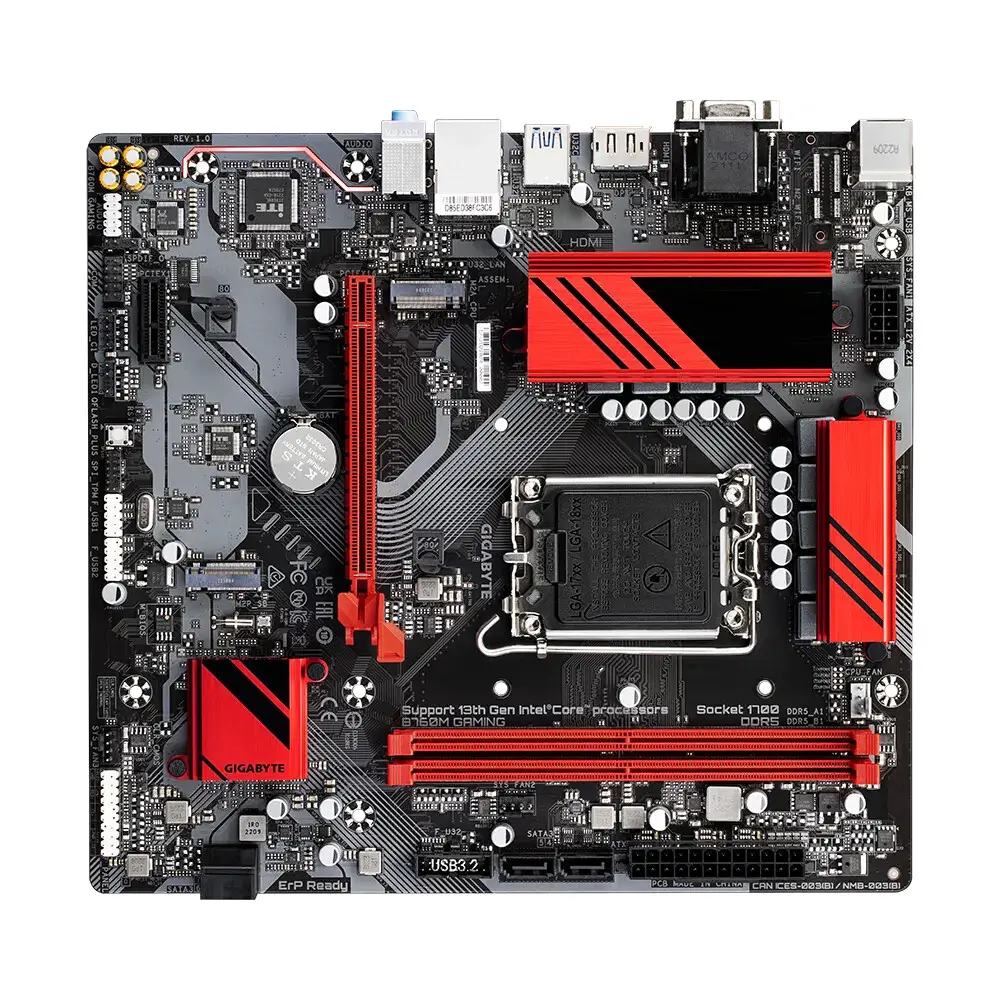

GIGABYTE B760M GAMING Motherboard – Supports Intel Core 14th CPUs, 6+2+1 Phases Digital VRM, up to 8000MHz DDR5 (OC), 2xPCIe 4.0
B760M GAMING Motherboard – Supports Intel Core 14th CPUs, 6+2+1 Phases Digital VRM, up to 8000MHz DDR5 (OC), 2xPCIe 4.0 M.2, 2.5
This product has been added to 1 people'scarts.
- Delivered by tomorrow (order Mon-Fri Delivery times 07:00 - 17:00) *T&C's Apply
- Including shipping costs on orders over R1500
- Major Cities: 2 to 5 working days
Outlying areas: 5-9 working days
- 7 days to change your mind and free returns *T&C's Apply
- Excellent customer service
Description
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Additional information
| Processor manufacturer | Intel |
|---|---|
| Brand | Gigabyte |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 4000,4800,4866,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,8000 MHz |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 Express |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Number of M.2 (M) slots | 2 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Width | 244 mm |
| Depth | 225 mm |
| Maximum number of SMP processors | 1 |
| Memory channels | Dual-channel |
| Supported memory clock speed (max) | 8000 MHz |
| RAID support | Yes |
| Number of SATA III connectors | 4 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| USB 2.0 ports quantity | 2 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Product colour | Black |
| Power source type | ATX |
| PCI Express x16 (Gen 4.x) slots | 1 |
| VGA (D-Sub) ports quantity | 1 |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive types | HDD & SSD |
| Maximum resolution | 4096 x 2304 pixels |
| Total number of SATA connectors | 4 |
| PS/2 ports quantity | 1 |
| Height | 35 mm |
| Discrete graphics support | Yes |
| Serial port headers | 1 |
| USB connector type | USB Type-A, USB Type-C |
| Clear CMOS jumper | Yes |
| Cables included | SATA |
| Drivers included | Yes |
| 12V power connector | Yes |
| S/PDIF out connector | Yes |
| HDCP | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| Bundled software | Norton Internet Security (OEM version)LAN bandwidth management software |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| DirectX version | 12.0 |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.15 kg |
| Batteries included | Yes |
| Warranty period | 3 year(s) |
| Number of displays supported | 3 |
| EPS power connector (8-pin) | Yes |
| Clear CMOS button | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Cooling type | Active |
| ECC сompatibility | ECC & Non-ECC |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
